JX-40 Honeywell Switch Hardware Auxillary Actuator Lever for 11SX96-T Basic Switch-Electronic components

Category:
Electronics Components
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Description:
Basic / Snap Action Switches SUBMINI SW SPDT 5A 250Vac PinPlung ACTR
Category:
Electronic Components-Switch Accessories
Product Name:
Hardware Auxillary Actuator Lever
Family:
SX Series Micro Switch
Series:
Basic Snap Action Switches
Details:
Buck Switching Regulator IC Positive Or Negative Adjustable 0.97V 1 Output 6A 28-WFQFN Exposed Pad
Contact Form:
SPDT
Mounting Style:
Chassis Mount
Termination Style::
Solder Turret
Actuator:
Lever
Actuator Style::
Plunger
Introduction

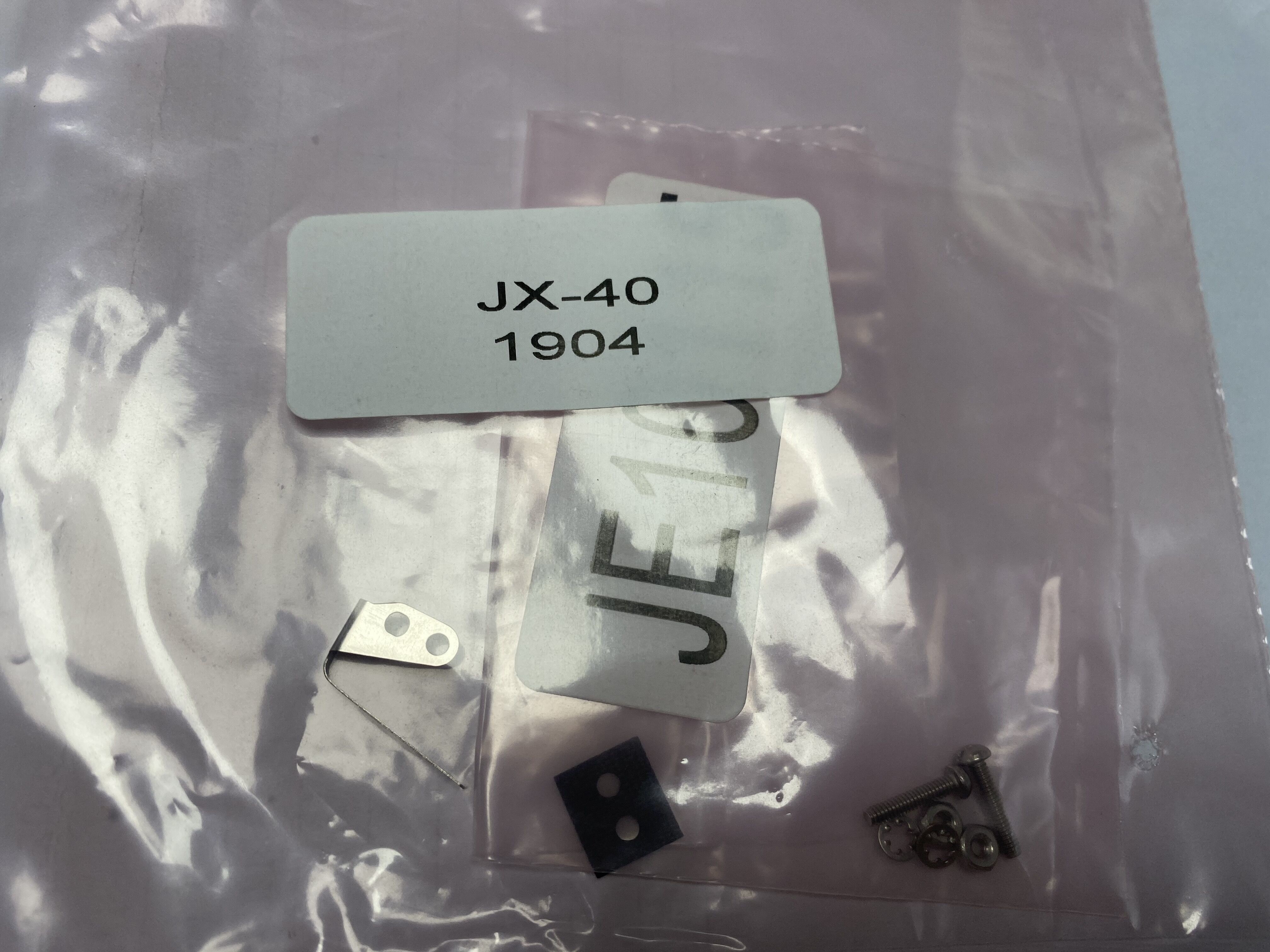

JX-40 Honeywell Switch Hardware Auxillary Actuator Lever for 11SX96-T Basic Switch-Electronic components



JX-40 Honeywell Switch Hardware Auxillary Actuator Lever with 11SX96-T honeywell sensing micro switch sx basic switch Specification :

Part number JX-40
Honeywell
Switch Hardware-electronic components
RoHS: YES
Basic Switch
Solder Pin
Actuator: Lever
Brand: Honeywell
Height: 14.6 mm
Length: 17.9 mm
Mounting Style: Panel
Product Type: Switch Hardware
Series: JX
Subcategory: Switch Accessories
Voltage Rating: 250 V
Width: 3.04 mm
Unit Weight: 0.134041 oz



FEATURES:

1 Low operating force to 3 oz. (85 grams) maximum 1 Sensitive differential travel as low as .001 inch maximum 1 Power load switching capability up to 7 amperes—silver contacts 1 Optional gold contacts for low energy applications 1 Optional bifurcated gold contacts for maximum reliability 1 Long mechanical life up to 10,000,000 cycles—95% survival for 11SX series 1,000,000 cycles—95% survival for1SX series 1 Temperature tolerance −65° to +250°F (−54 to 121°C) on standard construction 1 High temperature designs for up to +400°F (204°C) for 100 hours 1 Variety of integral and auxiliary actuators 1 Choice of several terminal styles 1 MIL-S-8805 qualified products available 1 UL recognized File #E12252, CSA certified file # LR41372.



GENERAL INFORMATION:

SX subminiature basic switches are small size precision snap-action switches from MICRO SWITCH. These switches are ideal where savings in space and weight are important. Unless otherwise noted, all listings have silver contacts.



AVAILABLE TERMINALS:

SX switches are available with several types of terminations. The T and T2 terminals provide easy solder lead wire attachment. The H58 terminal offers the simplicity of quick-connect and mate with AMP .058-inch receptacles. Pin terminals allow easy attachment to printed circuit boards.



Related Honeywell Switch Hardware Auxillary Actuator Lever :

13SX1-T,  JX-20 , JX-40,  JX-41,  JX-45,  JX-4,   JX-220



JX-40 Honeywell Switch Hardware Auxillary Actuator Lever for 11SX96-T Basic Switch-Electronic components

JX-40 Honeywell Switch Hardware Auxillary Actuator Lever for 11SX96-T Basic Switch-Electronic components



Normally 11SX96 Micrcoswith uses as a set with JX-40:

Part Number 11SX96-T
Category Electronic components
Manufacturer: Honeywell
Product Category: Basic / Snap Action Switches
RoHS: YES
Series: BA
Type: Miniature
Contact Form: SPDT
Switch Function: ON - (OFF), OFF - (ON)
Actuator: Plunger
Current Rating: 5 A
Voltage Rating AC: 250 VAC
Voltage Rating DC: 28 VDC
Operating Force: 1.7 N
Termination Style: Solder Turret
Mounting Style: Chassis Mount
Actuator Style: Plunger
Brand: Honeywell
Illuminated: Non-Illuminated
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
Product Type: Snap Action Switches
Subcategory: Switches
Tradename: Microswitch
Unit Weight: 0.047973 oz
Datasheet(PDF) honeywellmicroswitch.pdf





The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH™ SX Series delivers consistent performance within a range of conditions. Offering enhanced repeatability, the MICRO SWITCH™ SX Series’ lower operating force provides for application versatility. Like the MICRO SWITCH SM Series, the SX Series (which is a smaller package) offers gold contacts for low energy switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SX switch.



Features:

LONG LIFE With a mechanical life of up to 10,000,000 operations,

SX Series switches boast an industry-leading life cycle.

APPLICATION FLEXIBILITY MICRO SWITCH  SX Series delivers a selection of actuation, electrical termination, and operating characteristics along with high-temperature construction options.



INDUSTRY-LEADING TEMERATURE RANGE With a wide temperature range of -54 °C to 204 °C [-65 °F to 400 °F],

SX Series switches allow for years of reliable performance in harsh conditions.



COMPACT AND ROBUST Built from military-grade components, MICRO SWITCH SX switches deliver MIL-PRF-8805 qualified listings in a lightweight, subminiature package. SX switches are available with FAA-PMA approvals for commercial aircraft applications. EASILY CONTROLS LOW-VOLTAGE DC APPLICATIONS Switches available with a choice of silver, gold-plated, or bifurcated gold contacts to handle a variety of electrical load requirements. GLOBAL APPROVALS UL/CSA, cUL, ENEC, and CE approvals allows the customer to utilize switches in products sold across the globe - in some of the most regulated regions.



Applications:

INDUSTRIAL •

In precision switch assemblies for pressure switches and temperature switches

• In power generation, fuel level switch for gas and oil



Related honeywell sensing micro switch sx basic switcs:

12SX2-T Bifurcated gold contacts 0.01 A
3SX1-T Gold-plated contacts
12SX1-T Enhanced reliability (gold
12SX3-T Lowest differential travel,
13SX21-T Gold-plated contacts
23SX39-T
23SX39-T2
93SX39-T
411SX21-T
413SX21-T
11SX1-T Lowest differential travel 3 A
11SX21-T General purpose 5 A
11SX22-T General purpose 5 A
17SX21-T Enhanced stability under
1SX1-T Power-duty switching 7 A
1SX12-T Low differential travel 7 A
1SX48-T Added overtravel 7 A
2SX1-T Lower operating force 7 A
4SX1-T 204 °C [400 °F] for 100
21SX1-T Enhanced stability under
21SX39-T
21SX39-T2
91SX39-T
311SX1-T 3,43 mm [0.135 in] straight
313SX1-T 3,43 mm [0.135 in] straight
311SX2-T 12,8 mm [0.505 in] straight
313SX2-T 12,8 mm [0.505 in] straight
311SX3-T 24,5 mm [0.965 in] straight
313SX3-T 24,5 mm [0.965 in] straight
311SX4-T 1,1 mm [0.042 in]
313SX4-T
311SX5-T 11,7 mm [0.459 in]
313SX5-T
