3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components

Category:
Electronics Components
Price:
Negotiated
Payment Method:
T/T, Western Union,paypal
Specifications
Details:
10 KOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Family:
Potentiometers, Variable Resistors Trimmer Potentiometers
Category:
Electronic Components
SubCategory:
Trimmer Potentiometer
Lead Free Status:
Lead Free / RoHS Compliant, RoHS Compliant
Mounting Type:
Through Hole
Base Product Number:
3362P
Series:
Trimpot® 3362 - Sealed
Description:
TRIMMER 10K OHM 0.5W PC PIN TOP
Size / Dimension:
Rectangular - 0.275" X 0.260" Face X 0.185" H (6.99mm X 6.60mm X 4.70mm)
High Light:

3362P-1-103LF

,

10k Ohm Trimmer Potentiometer

,

trimmer potentiometer 10k

Introduction

3362P-1-103LF Trimmer Potentiometer 10 kOhms 0.5W, 1/2W PC Pins Through Hole Cermet 1.0 Turn Top Adjustment



3362P-1-103LF Trimmer Potentiometer 10 kOhms 0.5W, 1/2W PC Pins Through Hole Cermet 1.0 Turn Top Adjustment


3362 – 1/4 ˝ Square Trimpot® Trimming Potentiometer



Features

■ Single-Turn / Cermet / Industrial / Sealed

■ Miniature package

■ Rotor designed for automatic machine adjust interface

■ Withstands harsh environments and immersion cleaning processes

■ Tape and reel packaging available

■ RoHS compliant* version available



Electrical Characteristics :



Standard Resistance Range
......................10 ohms to 2 megohms
(see standard resistance table)
Resistance Tolerance ........... ±10 % std.
Absolute Minimum Resistance
.................................... 1 % or 2 ohms
(whichever is greater)
Contact Resistance Variation
........................... 1 % or 3 ohms max.
(whichever is greater)
Adjustability
Voltage Divider ...................... ±0.05 %
Rheostat ................................ ±0.15 %
Resolution ................................... Infinite
Insulation Resistance ...............500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level................................ 900 vac
80,000 Feet ............................ 350 vac
Adjustment Angle ................. 240 ° nom.
Environmental Characteristics
Power Rating (300 volts max.)
70 °C ....................................0.50 watt
125 °C .......................................0 watt
Temperature Range ...-55 °C to +125 °C
Temperature Coefficient ... ±100 ppm/°C
Seal Test ......................85 °C Fluorinert†
Humidity .......MIL-STD-202 Method 103
96 hours
(2 % TR; 10 Megohms IR)
Vibration ....... 30 G (1 % TR; 1 % VR)
Shock ......... 100 G (1 % TR; 1 % VR)
Load Life ..1,000 hours 0.5 watt @ 70 °C
(3 % TR; 3 % or 3 ohms,
whichever is greater, CRV)
Rotational Life .......................200 cycles
(4 % TR; 3 % or 3 ohms,
whichever is greater, CRV)
Physical Characteristics
Mechanical Angle ................. 270 ° nom.
Torque .............................3.0 oz-in. max.
Stop Strength .................7.0 oz -in. min.
Terminals .......................Solderable pins
Weight ....................................... 0.02 oz.
Marking ....................... Resistance code,
terminal numbers, manufacturer’s
model number, style
and date code
Wiper ...............50 % (Actual TR) ±10 %
Flammability ..........................U.L. 94V-0
Standard Packaging .....50 pcs. per tube
Adjustment Tool ..............................H-90



Specification :

Part number 3362P-1-103LF
Category
Potentiometers, Variable Resistors

Trimmer Potentiometers
Mfr
Bourns Inc.
Series
Trimpot® 3362 - Sealed
Package
Tube
Part Status
Active
Resistance
10 kOhms
Power (Watts)
0.5W, 1/2W
Tolerance
±10%
Temperature Coefficient
±100ppm/°C
Number of Turns
1
Adjustment Type
Top Adjustment
Resistive Material
Cermet
Mounting Type
Through Hole
Termination Style
PC Pins
Size / Dimension
Rectangular - 0.275" x 0.260" Face x 0.185" H (6.99mm x 6.60mm x 4.70mm)
Base Product Number
3362P

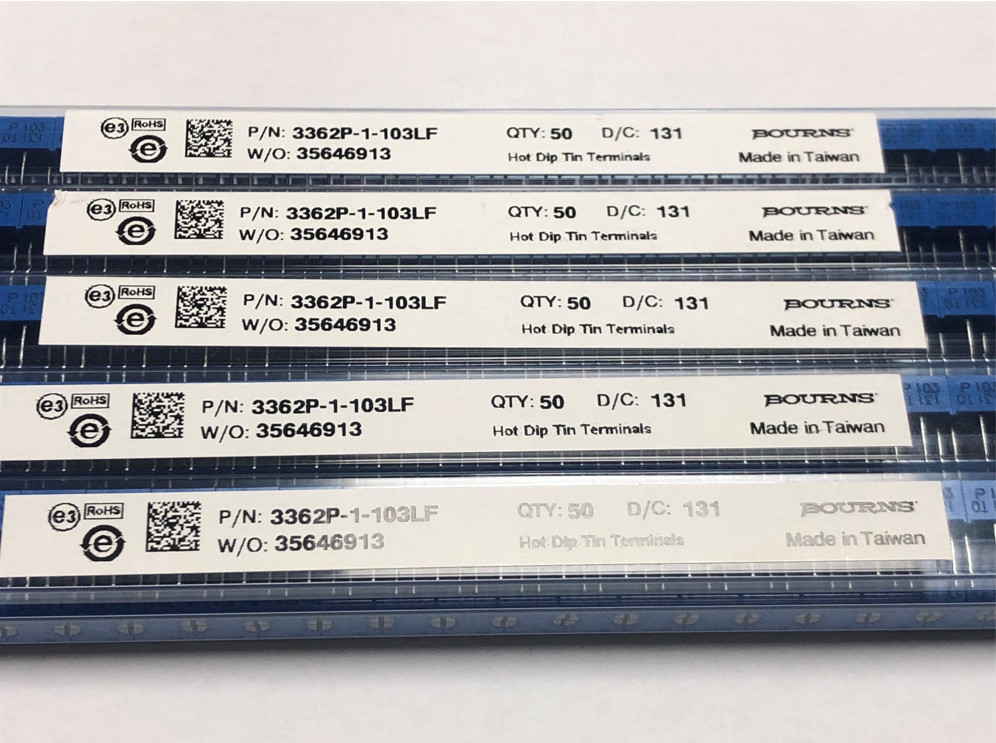

3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components

3362P-1-103LF 10k Ohm Trimmer Potentiometer Electronics Components


Environmental & Export Classifications
ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
