STM32F429ZI MCU 32Bit Embedded Evaluation Board Nucleo-144 NUCLEO-F429ZI
32Bit Embedded Evaluation Board
,STM32F429ZI MCU
,STM32F429ZI Embedded Evaluation Board
STM32F429ZI MCU 32-Bit Embedded Evaluation Board Nucleo-144 series mbed-Enabled Development NUCLEO-F429ZI
Features
• Common features
– STM32 microcontroller in LQFP144 package
– 3 user LEDs
– 2 user and reset push-buttons
– 32.768 kHz crystal oscillator
– Board connectors:
◦ SWD
◦ ST Zio expansion connector including ARDUINO® Uno V3
◦ ST morpho expansion connector
– Flexible power-supply options: ST-LINK, USB VBUS, or external sources
– On-board ST-LINK debugger/programmer with USB re-enumeration
capability: mass storage, Virtual COM port, and debug port
– Comprehensive free software libraries and examples available with the
STM32Cube MCU Package
– Support of a wide choice of Integrated Development Environments (IDEs)
including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
• Board-specific features
– External or internal SMPS to generate Vcore logic supply
– Ethernet compliant with IEEE-802.3-2002
– USB OTG full speed or device only
– Board connectors:
◦ USB with Micro-AB or USB Type-C®
◦ Ethernet RJ45
– Arm® Mbed Enabled™ complian
| Category | Development Boards, Kits, Programmers |
| Evaluation Boards - Embedded - MCU, DSP | |
| Mfr | STMicroelectronics |
| Series | STM32F4 |
| Package | Box |
| Part Status | Active |
| Board Type | Evaluation Platform |
| Type | MCU 32-Bit |
| Core Processor | ARM® Cortex®-M4 |
| Platform | Nucleo-144 |
| Utilized IC / Part | STM32F429ZI, mbed-Enabled Development |
| Mounting Type | Fixed |
| Contents | Board(s) |
| Interconnect System | Arduino R3 Shield, ST Morpho, ST Zio |
| Suggested Programming Environment | GNU GCC, IAR EW, Keil MDK, Mbed-Enabled |
| Base Product Number | NUCLEO |

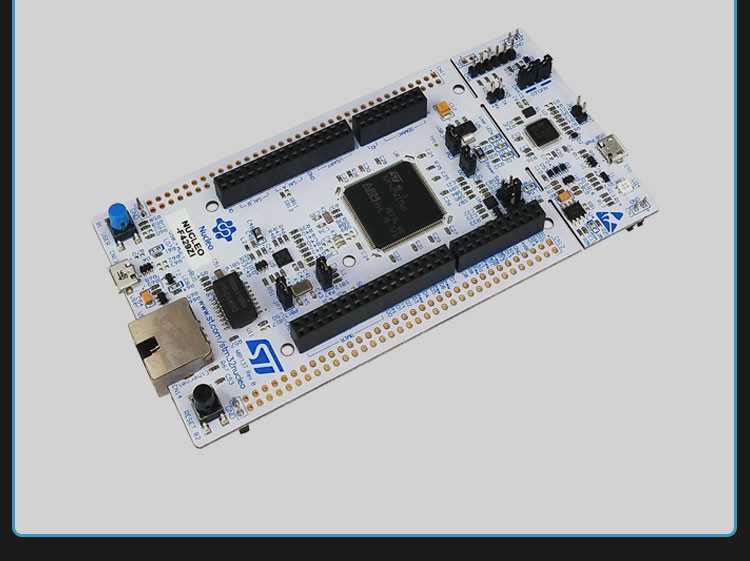

Product Images:
