20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency
20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency 20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency

20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: ISO9001, ISO14001,RoHS
Model Number: HC-49T
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US$0.25/PC
Packaging Details: REEL
Delivery Time: 1-10DAYS
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS
Contact Now

Detail Information
Category: Crystals, Oscillators, Resonators Crystals Series: Hc-49
Nominal Frequency: 455.000KHz Frequency Stability: ±30ppm
Load Capacitance: 20PF Mounting Type: Through Hole
Package / Case: Dip2 Height: 11.05 Mm
Production Name: HC-49T Crystal Oscillator 455KHz Crystal 20pF 30ppm 455KHz Crystal Oscillator
High Light:

30ppm Through Hole Crystal Oscillator

,

20pF Through Hole Crystal Oscillator

,

455KHz High Frequency Crystal Oscillator

Product Description

Electronic components HC-49T Crystal Oscillator 455KHz Crystal 20pF 30ppm 455KHz Crystal Oscillator



Electronic components HC-49T Oscillator 455KHz 20pF 30ppm 455KHz Higher frequency through hole Crystal Oscillator

Product Description
Resistance Welded HC-49/T Package
Item
Specifications
Frequency
455.000KHz
Load Capacitance(CL)
20pF
Frequency Tolerance (at 25°C)
± 30ppm
Frequency Stability Over Operating
Temperature Range
± 30ppm
Operating Temperature Range
-20°C--+70°C
Storage Temperature Range
-40°C--+85 °C
Shunt Capacitance (C0)
7pF Max
Driver Level(Typical)
100µW Typical
Aging(at 25°C)
± 5ppm/year maximum
WTL HC-49T Crystal Oscillator 455KHz Crystal 20pF 30ppm 455KHz Crystal Oscillator

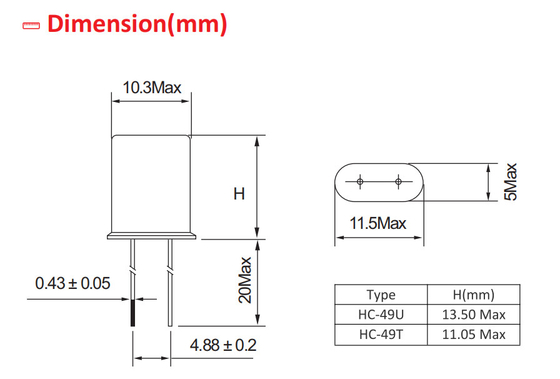

  • Resistance Welded HC-49U, HC-49T
    11.5 x 5.0 x 13.5/11.0 mm

  •

    Feature

    ●Resistance welded type crystal units
    ●Higher frequency available and lower equivalent series resistance
    ● RoHS Compliant / Pb Free
  • 20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency 0
  • 20pF 30ppm Through Hole Crystal Oscillator 455KHz High Frequency 1
  •
