AGN200S4HZ Electromechanical Relay 4.5VDC 1A DPDT SMD GN Telecom Relay
AGN200S4HZ Electromechanical Relay
,Electromechanical Relay 4.5VDC
,DPDT SMD GN Telecom Relay
Electromechanical Relay Signal Relay 4.5VDC 1A DPDT SMD AGN200S4HZ Panasonic Electronic Components GN Telecom Relays
AGN200S4HZ Signal Relay 4.5VDC 1A DPDT(10.6x5.7x10)mm SMD Panasonic Electronic
Components
-GN RELAYS (AGN) High sensitivity, 100 mW Nominal operating power, 2 Form C and 1 A Slim body type relays
TYPICAL APPLICATIONS
1. Telephonic equipment
2. Telecommunications equipment
3. Security equipment
4. Test and Measurement equipment
5. Electronic Consumer and Audio Visual equipment
FEATURES:
1. Slim compact size 10.6 (L)×5.7 (W)×9.0 (H) mm .417 (L)×.224 (W)×.354 (H) inch
2. High sensitivity single side stable type (Nominal operating power: 100mW) is available
3. Outstanding surge resistance 1,500 V 10
4. The use of twin crossbar contacts ensures high contact reliability

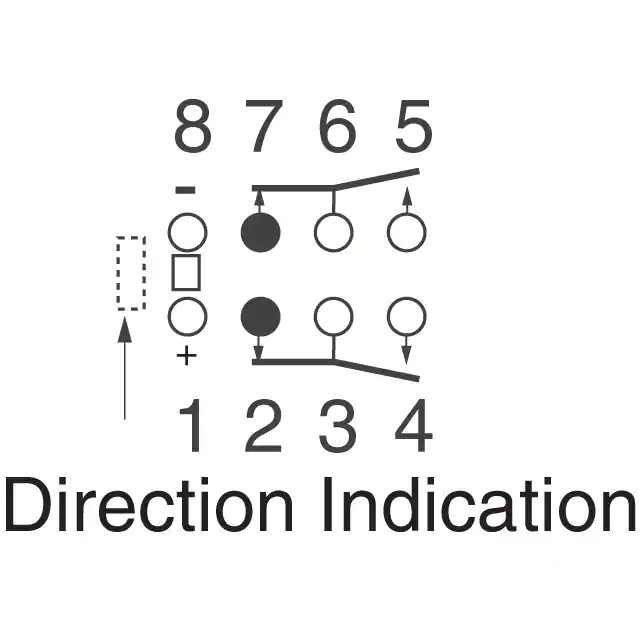

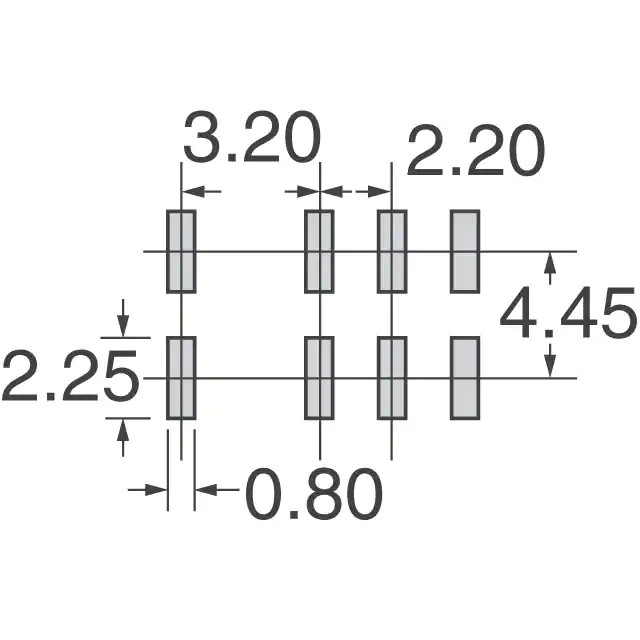

| Part number | AGN200S4HZ |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8536.41.00.20 |
| Automotive | No |
| PPAP | No |
| Contact Arrangement | DPDT |
| Contact Form | 2 Form C |
| DC Coil Voltage (V) | 4.5 |
| Coil Current (mA) | 31 |
| Coil Resistance (Ohm) | 145 |
| Maximum Contact Resistance (mOhm) | 100 |
| Insulation Resistance (MOhm) | 1000 |
| Maximum Pick-Up Voltage | 3.38VDC |
| Minimum Dropout Voltage | 0.45VDC |
| Maximum AC Switching Voltage (V) | 125 |
| Maximum DC Switching Voltage (V) | 110 |
| Maximum Switching Current (A) | 1 |
| Operate Time (ms) | 4 |
| Release Time (ms) | 4 |
| Electrical Life (Operations) | 100000 |
| Mechanical Life (Operations) | 50000000 |
| Relay Construction | Non-Latching |
| Contact Material | Silver Palladium |
| Maximum Switching Power | 30W|37.5VA |
| Mounting | Surface Mount |
| Termination Style | Gull Wing |
| Number of Terminals | 8 |
| Seal | Sealed |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Package Type | SMD |
| Product Weight (g) | 1 |
| Product Length (mm) | 10.6 |
| Product Depth (mm) | 5.7 |
| Product Height (mm) | 10 |
| Base part number | AGN200 |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| ECCN | EAR99 |
| HTSUS |
8536.41.0020
|
