TDA7297 TDA7294V Audio Amplifier IC AMP AB MONO 100W 15 Multiwatt
TDA7294V Audio Amplifier IC
,TDA7297 Audio Amplifier IC
,TDA2050V TDA2040V
TDA7297 TDA7294V TDA2050V TDA2040V TDA2030V TDA2005R TDA2003V
AMPLIFICADOR DE AUDIO Amplifier IC Electronic components
100 V, 100 W DMOS audio amplifier with mute/st-by
Product details
Description :
The TDA7294 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4 Ω and 8 Ω loads even in presence of poor supply regulation, with high supply voltage rejection. The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.
Features
• Very high operating voltage range (± 40 V)
• DMOS power stage
• High output power (up to 100 W music power)
• Muting/stand-by functions • No switch on/off noise
• No boucherot cells • Very low distortion
• Very low noise • Short circuit protection
• Thermal shutdown
| Part number | Description |
| LM380N | AMPLIFICADOR DOBLE 2.5W 80HMS (DIP-14) |
| TDA7297 | Amplifier IC with 2-Channel (Stereo) Class AB 15-Multiwatt |
| TDA7294V | AMPLIFICADOR DE AUDIO 100W 38V 4-8 OHMS HI-FI |
| TDA2050V | AMPLIFICADOR DE AUDIO 32W 22V 8 OHMS HI-FI |
| TDA2040V | AMPLIFICADOR AUDIO 22W 16V HI-FI |
| TDA2030V | AMPLIFICADOR AUDIO 3,5W 18AV |
| TDA2005R | AMPLIFICADOR AUDIO 2X10W 14V |
| TDA2003V | AMPLIFICADOR AUDIO 8W 14V |

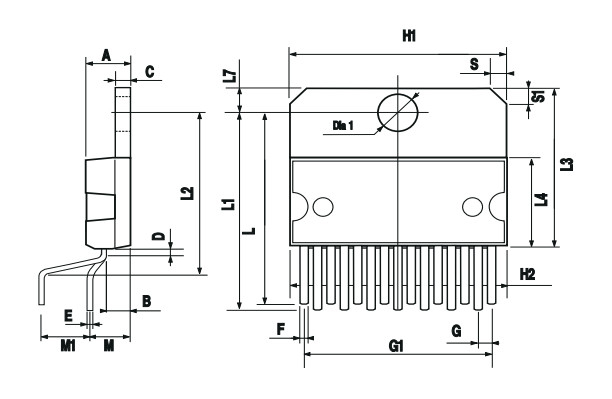

Images:
