4 Cores 4.2GHz CPU Central Processing Unit Intel Core I5-10210U
4.2GHz CPU Central Processing Unit
,4 Cores 4.2GHz CPU
,I5-10210U Central Processing Unit

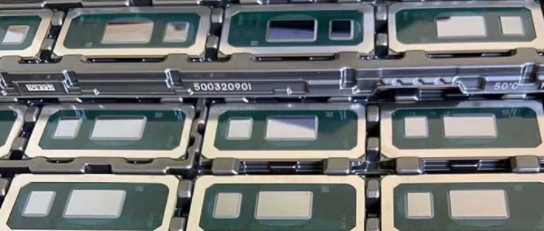

CPU Central Processing Units Intel Core i5-10210U Mobile Processor 4 Cores up to 4.2 GHz FJ8070104307504S RGKY
| Product Attribute | Attribute Value |
| Intel | |
| CPU - Central Processing Units | |
| RoHS: | YES |
| Mobile Processors | |
| FCBGA-1528 | |
| Intel Core i5 | |
| Intel Core i5 | |
| Comet Lake | |
| i5-10210U | |
| Non-Embedded | |
| 4 Core | |
| 15 W | |
| 1.6 GHz | |
| 64 bit | |
| 64 GB | |
| DDR4-2666, LPDDR3-2133 | |
| 4 GT/s | |
| 6 MB | |
| + 100 C | |
| Tray | |
| Series: | i5-10210U |
| Package / Case Size: | 26 mm x 24 mm |
| Brand: | Intel |
| Mounting Style: | SMD/SMT |
| CPU Configuration - Max: | 1 Configuration |
| ECC Memory Supported: | Non-Supported |
| Intel Hyper-Threading Technology: | With HT Technology |
| Intel Virtualization Technology - VT: | With VT |
| Lithography - Process Technology: | 14 nm |
| Moisture Sensitive: | Yes |
| Number of Displays Supported: | 3 Display |
| Number of Memory Channels: | 2 Channel |
| Number of PCI Express Lanes: | 16 Lane |
| Number of Threads: | 8 Thread |
| PCIe Configurations: | 1x4, 2x2, 1x2 + 2x1, 4x1 |
| PCIe Revision: | Revision 3.0 |
| Product Type: | CPU - Central Processing Units |
| Factory Pack Quantity: | 1 |
| Subcategory: | Embedded Processors & Controllers |
| Tradename: | Core i5 |
| Turbo Frequency - Max: | 4.2 GHz |
| Part # Aliases: | 999K49 |
APPLICATIONS
- Mobile Devices
FEATURES
- Designed for Fast-Paced Lives
- Ultra-Vivid, Next-Generation Graphics
- Best-in-Class Connectivity
- Ultraportable performance
- Intelligent Performance with the Power of AIIntel Core™ 10th Gen Mobile U & Y Series Processors
Intel® Core™ 10th Gen Mobile U & Y Series Processors feature built-in AI, integrated Thunderbolt™ 3 technology, Intel Wi-Fi 6, 4K HDR, and new CPU and GPU architectures produced on Intel’s advanced 10nm process. The 10th Gen Mobile Processors use the latest Intel Iris® Plus graphics that take a huge leap forward in gaming, streaming, and creativity. The Iris Plus graphics offer a smooth, detailed, and vivid experience on highly portable devices.
The U and Y Series Processors provide battery life optimization, built-in intelligence, and the latest in wireless and wired standards for incredibly fast connectivity. These systems play games at 1080p with smooth frame rates and stream 4K HDR video in detailed richness.
Mobile Processors optimize built-in intelligent performance features that make it possible to quickly learn and adapt to the user's preferences. With fast, flexible, and easy connectivity, the processors enable ultra-fast and ultra-responsive connections for browsing, streaming, gaming, and working.
