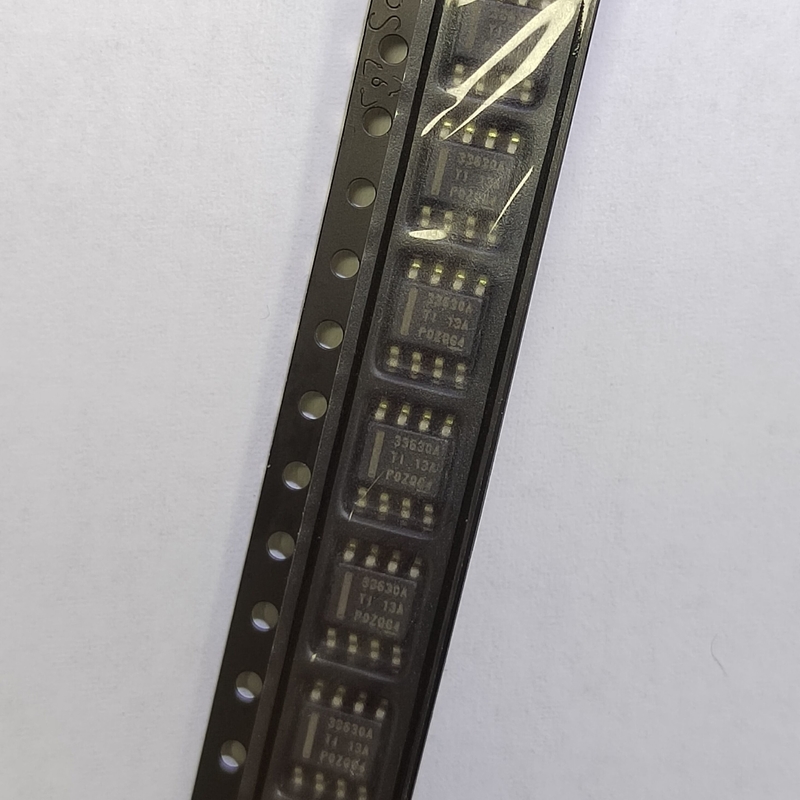

LMR33630ADDA Positive Adjustable 1V 1 Output 3A 8-Power SOIC Buck Switching Regulator IC PMIC Voltage Regulators

Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Category:
Integrated Circuits(IC)
Family:
PMIC - Voltage Regulators
Type:
DC DC Switching Regulators
Serise:
SIMPLE SWITCHER
Function:
Step-Down
Output Configuration:
Positive
Topology:
Buck
Output Type:
Adjustable
Frequency - Switching:
400kHz
Voltage - Input:
3.8v-36v
Voltage - Output:
1v-24v
Current - Output:
3A
Introduction

LMR33630ADDA Positive Adjustable 1V 1 Output 3A 8-Power SOIC Buck Switching Regulator IC PMIC Voltage Regulators DC DC Switching Regulators



Applications:

Motor drive systems: drones, AC inverters, VF drives, servos

Factory and building automation systems: PLC CPU, HVAC control, elevator control

General purpose wide VIN powers



Features:

1 Functional Safety-Capable – Documentation available to aid functional safety system design

Configured for rugged industrial applications

– Input voltage range: 3.8 V to 36 V

– Output voltage range: 1 V to 24 V

– Output current: 3 A – 75-mΩ/50-mΩ RDS-ON power MOSFETs

– Peak-current-mode control

– Short minimum on-time of 68 ns

– Frequency: 400 kHz, 1.4 MHz, 2.1 MHz

– Junction temperature range –40°C to +125°C

– Low EMI and low switching noise – Integrated compensation network

Low EMI and switching noise – HotRod package – Parallel input current paths

High power conversion at all loads – Peak efficiency > 95% – Low operating quiescent current of 25 µA

Flexible system interface – Power-good flag and precision enable

Use TPSM53603 module for faster time to market

Create a custom design using the LMR33630 with the WEBENCH Power Designer



Description:



The LMR33630 SIMPLE SWITCHER® regulator is an easy-to-use, synchronous, step-down DC/DC converter that delivers best-in-class efficiency for rugged industrial applications. The LMR33630 drives up to 3 A of load current from an input of up to 36 V. The LMR33630 provides high light load efficiency and output accuracy in a very small solution size. Features such as a power-good flag and precision enable provide both flexible and easy-to-use solutions for a wide range of applications. The LMR33630 automatically folds back frequency at light load to improve efficiency. Integration eliminates most external components and provides a pinout designed for simple PCB layout. Protection features include thermal shutdown, input undervoltage lockout, cycleby-cycle current limit, and hiccup short-circuit protection. The LMR33630 is available in an 8-pin HSOIC package and in a 12-pin 3 mm × 2 mm next generation VQFN package with wettable flanks. This device is also available in an AEC-Q100-qualified version.



Device information :



PART NUMBER  PACKAGE(1)   BODY SIZE (NOM)



LMR33630            HSOIC (8)      5.00 mm × 4.00 mm



LMR33630             VQFN (12)    3.00 mm × 2.00 mm





Category
Integrated Circuits (ICs)
Family
PMIC - Voltage Regulators - DC DC Switching Regulators
Series
SIMPLE SWITCHER
Package
Tube
Part Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
3.8V
Voltage - Input (Max)
36V
Voltage - Output (Min/Fixed)
1V
Voltage - Output (Max)
24V
Current - Output
3A
Frequency - Switching
400kHz
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SO PowerPad
Base Product Number
LMR33630



DEVICE OPTION PACKAGE FREQUENCY RATED CURRENT OUTPUT VOLTAGE

LMR33630ADDA DDA (8-pin HSOIC) 5 × 4 mm 400 kHz 3 A

LMR33630BDDA 1400 kHz 3 A Adjustable

LMR33630CDDA 2100 kHz 3 A

LMR33630ARNX RNX (12-pin VQFN) 3 × 2 × 0.85 mm 400 kHz 3 A

LMR33630BRNX 1400 kHz 3 A Adjustable LMR33630CRNX 2100 kHz 3 A



All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

LMR33630ADDAR SO PowerPAD DDA 8 2500 366.0 364.0 50.0

LMR33630ARNXR VQFN-HR RNX 12 3000 213.0 191.0 35.0

LMR33630ARNXR VQFN-HR RNX 12 3000 210.0 185.0 35.0

LMR33630ARNXT VQFN-HR RNX 12 250 210.0 185.0 35.0

LMR33630ARNXT VQFN-HR RNX 12 250 213.0 191.0 35.0

LMR33630BDDAR SO PowerPAD DDA 8 2500 366.0 364.0 50.0

LMR33630BRNXR VQFN-HR RNX 12 3000 213.0 191.0 35.0

LMR33630BRNXR VQFN-HR RNX 12 3000 210.0 185.0 35.0

LMR33630BRNXT VQFN-HR RNX 12 250 213.0 191.0 35.0

LMR33630BRNXT VQFN-HR RNX 12 250 210.0 185.0 35.0

LMR33630CDDAR SO PowerPAD DDA 8 2500 366.0 364.0 50.0

LMR33630CRNXR VQFN-HR RNX 12 3000 213.0 191.0 35.0

LMR33630CRNXR VQFN-HR RNX 12 3000 210.0 185.0 35.0

LMR33630CRNXT VQFN-HR RNX 12 250 210.0 185.0 35.0

LMR33630CRNXT VQFN-HR RNX 12 250 213.0 191.0 35.0
