FT232 Mini USB UART Board R3 Arduino Development Board ST Morpho

Product Details:
Place of Origin: Malaysia
Brand Name: OEM
Certification: ROHS
Model Number: FT232 board
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: US$31.50
Packaging Details: BOX
Delivery Time: 5-14days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/month

Detail Information

Category: Development Boards, Kits, Programmers Family: USB UART BOARD
Type: With USB Main Chip: FT232
Utilized IC / Part: USB TO UART Solution With USB Mini Connector Mounting Type: Fixed
Interconnect System: Arduino R3 Shield, ST Morpho, ST Zio Suggested Programming Environment: GNU GCC, IAR EW, Keil MDK, Mbed-Enabled
High Light:

FT232 Mini USB UART Board

,

FT232 Arduino Development Board

,

USB UART Board R3

Product Description

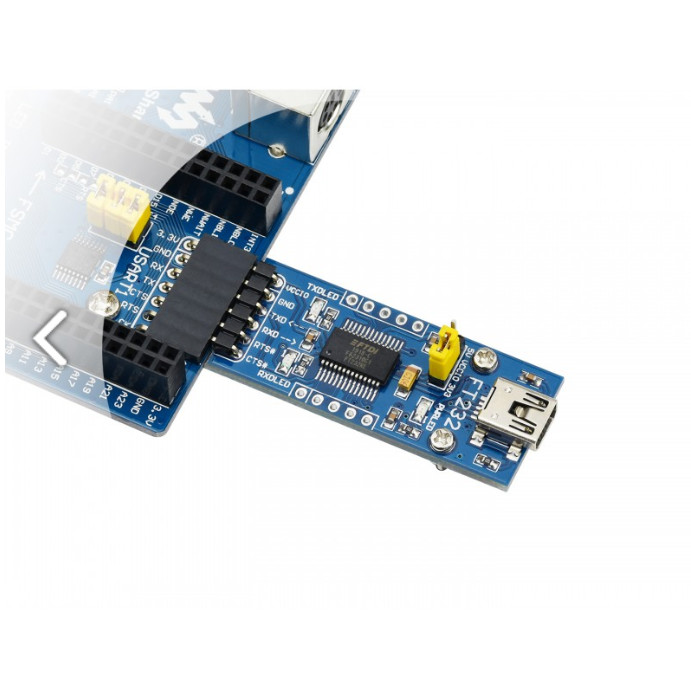

FT232 USB UART Board (mini) USB TO UART solution with USB mini connector

USB TO UART solution with USB mini connector
Features
 Original FT232RL onboard
 Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10...
 3 power mode : 5V output, 3.3V output, or powered by target board (3.3V-5V)
 3 LEDs: TXD LED, RXD LED, POWER LED
 Functional Pins
o TXD, RXD, RTS#, CTS# : connected to the onboard soldered pinheaders
o The other Pins : accessable on the drill holes (separate pinheaders are also provided for easily connecting to user system, the pitch is compatible with bread boards)



How to Use
In the case of working with a MCU:
 VCCIO ↔ 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
 GND ↔ GND
 TXD ↔ MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
 RXD ↔ MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
 RTS ↔ MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
 CTS ↔ MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)

Category Development Boards, Kits, Programmers
  Evaluation Boards - Embedded - MCU, DSP
Mfr FT Microelectronics
Series FT232
Package Box
Part Status Active
Board Type Evaluation Platform
Type WITH USB
