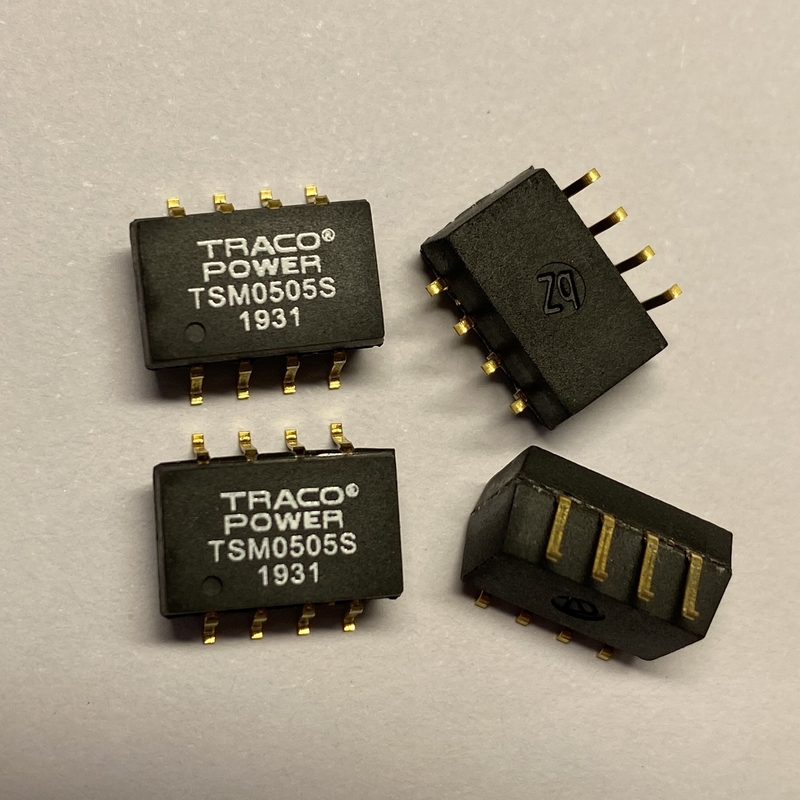

TSM0505S Traco Power DC DC Converter Board Mount PMIC Chip

manufacturer:
Traco Power
Description:
solated Board Mount Dc/Dc Converter, Surface Mount
Category:
PMIC Chip
In-stock:
25000
Price:
Negotiated
Payment Method:
T/T, Western Union
Shipping Method:
Express
Specifications
Category:
Electronic Components
Series:
PMIC Chip- Board Mount Module
Details:
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Mounting Type:
Surface Mounting
Description:
DC DC CONVERTER 5V 1W PMIC Chip
Package:
14-SMD Module, 8 Leads
Base Part Number:
TSM0505
Products Name:
Traco Power TSM PMIC Isolated Module DC DC Converter Power Module
Operating Ambient Temperature Range:
-40°C ~ 85°C
Size:
0.50" L X 0.31" W X 0.32" H (12.7mm X 8.0mm X 8.1mm)
Applications:
Automotive And Industrial Supplies,General Purpose,Step-Down CCCV Power Supplies
High Light:

TSM0505S PMIC Chip

,

Traco Power DC DC Converter Board

Introduction

TSM0505S Traco Power TSM PMIC Isolated Module DC DC Converter Board Mount electronic components power module

TSM0505S Traco Power TSM PMIC Isolated Module DC DC Converter Board Mount power module



TSM series PMIC Isolated Module DC DC Converter Board Mount power module Specification :

The TSM series are isolated DC/DC converters with 1W output power implemented in a molded plastic package with a pin accuracy suitable for automated SMDproduction. The devices can be soldered without any problems in a high temperature lead free solder process. With their small footprint these converters are the economical solution for point of load power conversion, ground loop elimination, noise reduction and digital interface applications.



Category
Electronic components Power Supplies
Family
DC DC Converters Board Mount PMIC Chip
Mfr
Traco Power
Series
TSM (1W)
Package
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
5.5V
Voltage - Output 1
5V
Current - Output (Max)
200mA
Power (Watts)
1 W
Voltage - Isolation
1 kV
Applications
ITE (Commercial)
Features
SCP
Operating Temperature
-40°C ~ 85°C
Efficiency
80%
Mounting Type
Surface Mount
Package / Case
14-SMD Module, 8 Leads
Size / Dimension
0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm)
Base Product Number
TSM 0505
Datasheet TSM0505_DATA.pdf



DC/DC Converters TSM Series, 1 Watt Traco Power TSM PMIC Isolated power Module details:

Features

◆ SMD package (SOIC-14/18)

◆ Construction in lead frame technology

◆ Isolated single and dual output

◆ I/O isolation 1‘000 VDC

◆ High efficiency

◆ Operating temperature –40°C to +85°C

◆ Reflow solder temperature up to 245°C

◆ High accuracy of Pin co-planarity

◆ Available in tape and reel package

◆ Lead free design, RoHS compliant



Related PMIC Power management chip module numbers:

Model Number Input voltage Output voltage Output current max. Efficiency typ.
TSM0505S 5 VDC 200 mA 80 %
TSM0509S 9 VDC 110 mA 78 %
TSM0512S 12 VDC 80 mA 80 %
TSM0515S 5 VDC ±10% 15 VDC 65 mA 81 %
TSM0505D ±5 VDC ±100 mA 75 %
TSM0512D ±12 VDC ±40 mA 79 %
TSM0515D ±15 VDC ±30 mA 79 %
TSM1205S 5 VDC 200 mA 81 %
TSM1209S 9 VDC 110 mA 78 %
TSM1212S 12 VDC 80 mA 81 %
TSM1215S 12 VDC ±10% 15 VDC 65 mA 82 %
TSM1205D ±5 VDC ±100 mA 75 %
TSM1212D ±12 VDC ±40 mA 80 %
TSM1215D ±15 VDC ±30 mA 80 %
TSM2405S 5 VDC 200 mA 81 %
TSM2409S 9 VDC 110 mA 78 %
TSM2412S 12 VDC 80 mA 81 %
TSM2415S 24 VDC ±10% 15 VDC 65 mA 82 %
TSM2405D ±5 VDC ±100 mA 75 %
TSM2412D ±12 VDC ±40 mA 80 %
TSM2415D ±15 VDC ±30 mA 80 %
