M29DW323 M29DW323DT70N6 Micron FLASH NOR Memory Integrated circuits IC TSOP48 Electronic components

Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Category:
Electronic Components-Integrated Circuits(IC)
Series:
FLASH NOR Memory Integrated Circuits IC
Details:
NOR Memory IC 32Mb (4M X 8, 2M X 16) Parallel 70 Ns 48-TSOP Flash Ic
Mounting Type:
Surface Mounting
Description:
IC FLASH 32MBIT PARALLEL 48TSOP-M29DW323DT70N6E
Package:
TSOP48
Base Part Number:
M29DW
Frequency:
Switching 200kHz ~ 2.2MHz
Operating Ambient Temperature Range:
-40°C ~ 85°C (TA)
Addtional:
Surface Mounting Memory IC CHIPS
Type:
Memory Interface Parallel
Substitutes:
S29JL032J70TFI010 / S29JL032J70TFI310
Introduction

M29DW323DT70N6E Micron M29DW323 FLASH NOR Memory Integrated circuits IC TSOP48 Electronic components

-M29DW323DT M29DW323DB 32 Mbit (4Mb x8 or 2Mb x16, Dual Bank 8:24, Boot Block) 3V Supply Flash Memory



The M29DW323D is a 32 Mbit (4Mb x8 or 2Mb x16) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single low voltage (2.7 to 3.6V) supply. On power-up the memory defaults to its Read mode. The device features an asymmetrical block architecture. The M29DW323D has an array of 8 parameter and 63 main blocks and is divided into two Banks, A and B, providing Dual Bank operations. While programming or erasing in Bank A, read operations are possible in Bank B and vice versa. Only one bank at a time is allowed to be in program or erase mode.

M29DW323D has an extra 32 KWord (x16 mode) or 64 KByte (x8 mode) block, the Extended Block, that can be accessed using a dedicated command. The Extended Block can be protected and so is useful for storing security information.

However the protection is irreversible, once protected the protection cannot be undone

. Each block can be erased independently so it is possible to preserve valid data while old data is erased.

The blocks can be protected to prevent accidental Program or Erase commands from modifying the memory.

Program and Erase commands are written to the Command Interface of the memory.

An on-chip Program/Erase Controller simplifies the process of programming or erasing the memory by taking care of all of the special operations that are required to update the memory contents.

The end of a program or erase operation can be detected and any error conditions identified.

The command set required to control the memory is consistent with JEDEC standards.

Chip Enable, Output Enable and Write Enable signals control the bus operation of the memory.

They allow simple connection to most microprocessors, often without additional logic.

The memory is offered in TSOP48 (12x20mm), and TFBGA48 (6x8mm, 0.8mm pitch) packages.



FEATURES SUMMARY:

SUPPLY VOLTAGE
– VCC = 2.7V to 3.6V for Program, Erase and Read
– VPP =12V for Fast Program (optional)


„ ACCESS TIME: 70ns


„ PROGRAMMING TIME
– 10µs per Byte/Word typical
– Double Word/ Quadruple Byte Program


„ MEMORY BLOCKS
– Dual Bank Memory Array: 8Mbit+24Mbit
– Parameter Blocks (Top or Bottom Location)


„ DUAL OPERATIONS
– Read in one bank while Program or Erase in other


„ ERASE SUSPEND and RESUME MODES
– Read and Program another Block during Erase Suspend


„ UNLOCK BYPASS PROGRAM COMMAND
– Faster Production/Batch Programming


„ VPP/WP PIN for FAST PROGRAM and WRITE PROTECT


„ TEMPORARY BLOCK UNPROTECTION MODE


„ COMMON FLASH INTERFACE– 64 bit Security Code


„ EXTENDED MEMORY BLOCK
– Extra block used as security block or to store additional information


„ LOW POWER CONSUMPTION– Standby and Automatic Standby


„ 100,000 PROGRAM/ERASE CYCLES per BLOCK


„ ELECTRONIC SIGNATURE
– Manufacturer Code: 0020h
– Top Device Code M29DW323DT: 225Eh
– Bottom Device Code M29DW323DB:225Fh



IC FLASH 32MBIT PARALLEL 48TSOP-M29DW323DT70N6E Specification:

Catetory Electronic components
SubCategory
Integrated Circuits (ICs)
Series
Memory
Mfr
Micron Technology Inc.
Package
Tray
Part Status
Obsolete
Memory Type
Non-Volatile
Memory Format
FLASH
Technology
FLASH - NOR
Memory Size
32Mb (4M x 8, 2M x 16)
Memory Interface
Parallel
Write Cycle Time - Word, Page
70ns
Access Time
70 ns
Voltage - Supply
2.7V ~ 3.6V
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
48-TFSOP (0.724", 18.40mm Width)
Supplier Device Package
48-TSOP
Base Product Number
M29DW323



Related product numbers:

Mfr Part # Technology Memory Size Device Package
M29DW323DB70N6F TR FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DT70N6F TR FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DB5AN6F TR FLASH - NOR 256Mb (16M x 16) 48-TSOP
M29DW323DB70N3E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DB70N6E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DB70ZE6E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TFBGA (6x8)
M29DW323DB70ZE6F TR FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TFBGA (6x8)
M29DW323DB7AN6F TR FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DT70ZE6F TR FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TFBGA (6x8)
M29DW323DT70ZE6E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TFBGA (6x8)
M29DW323DT70N6E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DB70N6E FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP
M29DW323DB70N6 FLASH - NOR 32Mb (4M x 8, 2M x 16) 48-TSOP



Ordering Information:


 M29DW323 M29DW323DT70N6 Micron FLASH NOR Memory Integrated circuits IC TSOP48 Electronic components

About Micron Technology

Micron makes innovative memory and storage solutions that are helping to drive today’s most significant and disruptive technology breakthroughs, such as artificial intelligence, the Internet of Things, self-driving cars, personalized medicine—even space exploration. By pioneering faster and more efficient ways to collect, store and manage data, they’re helping to revolutionize and improve the way the world communicates, learns and advances.



Micron Technology Product Categories:



Integrated Circuits (ICs)

Memory Cards, Modules

Optoelectronics



Image for reference:

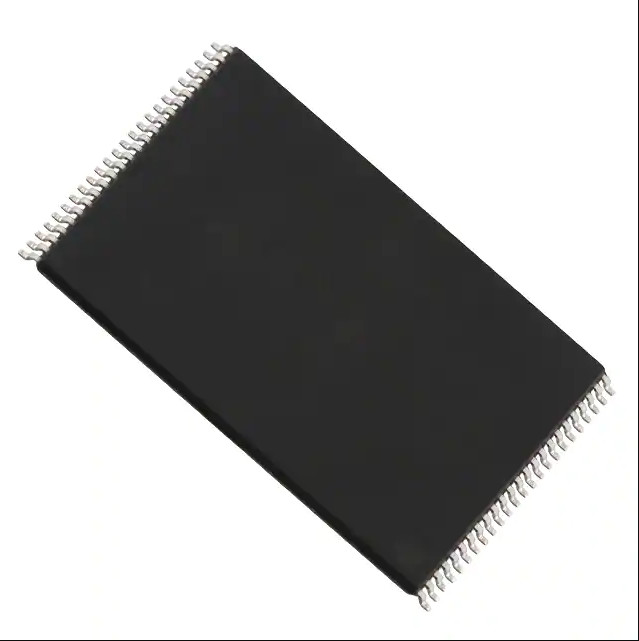

M29DW323 M29DW323DT70N6 Micron FLASH NOR Memory Integrated circuits IC TSOP48 Electronic componentsM29DW323 M29DW323DT70N6 Micron FLASH NOR Memory Integrated circuits IC TSOP48 Electronic componentsM29DW323 M29DW323DT70N6 Micron FLASH NOR Memory Integrated circuits IC TSOP48 Electronic components




Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071




Substitutes integrated circuits IC part number:
S29JL032J70TFI010 / S29JL032J70TFI310
