11SX96-T JX-40 Miniature Snap Action Switch SPDT Honeywell Microswitch
11SX96-T Miniature Snap Action Switch
,SPDT Honeywell Microswitch
,Miniature Snap Action Switch SPDT
11SX96-T Microswitch Honeywell Basic Snap Action Switches Miniature SPDT Electronic components

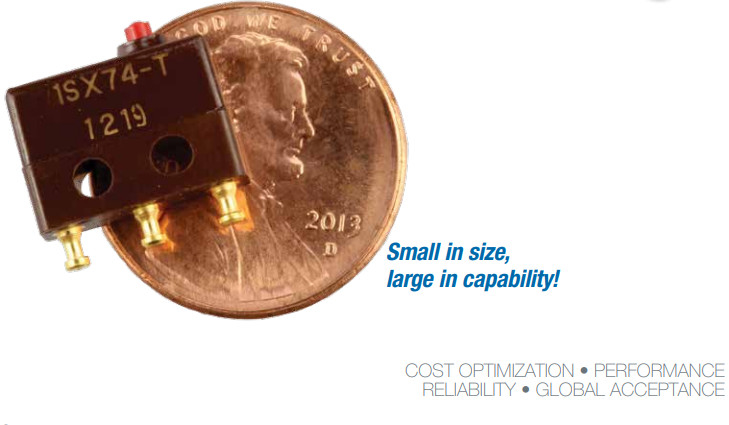

The industry-defining name in snap-action switches, Honeywell MICRO SWITCH premium subminiature switches are designed for repeatability and enhanced product life. The MICRO SWITCH™ SX Series delivers consistent performance within a range of conditions. Offering enhanced repeatability, the MICRO SWITCH™ SX Series’ lower operating force provides for application versatility. Like the MICRO SWITCH SM Series, the SX Series (which is a smaller package) offers gold contacts for low energy switching and bifurcated gold contacts for maximum reliability. Bifurcated contacts provide parallel redundancy within the SX switch.
11SX96-T honeywell sensing micro switch sx basic switch Specification :
| Part Number | 11SX96-T |
| Category | Electronic components |
| Manufacturer: | Honeywell |
| Product Category: | Basic / Snap Action Switches |
| RoHS: | YES |
| Series: | BA |
| Type: | Miniature |
| Contact Form: | SPDT |
| Switch Function: | ON - (OFF), OFF - (ON) |
| Actuator: | Plunger |
| Current Rating: | 5 A |
| Voltage Rating AC: | 250 VAC |
| Voltage Rating DC: | 28 VDC |
| Operating Force: | 1.7 N |
| Termination Style: | Solder Turret |
| Mounting Style: | Chassis Mount |
| Actuator Style: | Plunger |
| Brand: | Honeywell |
| Illuminated: | Non-Illuminated |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | - 55 C |
| Product Type: | Snap Action Switches |
| Subcategory: | Switches |
| Tradename: | Microswitch |
| Unit Weight: | 0.047973 oz |
| Datasheet(PDF) | honeywellmicroswitch.pdf |
Features:
LONG LIFE With a mechanical life of up to 10,000,000 operations,
SX Series switches boast an industry-leng life cycle.
APPLICATION FLEXIBILITY MICRO SWITCH SX Series delivers a selection of actuation, electrical termination, and operating characteristics along with high-temperature construction options.
INDUSTRY-LENG TEMERATURE RANGE With a wide temperature range of -54 °C to 204 °C [-65 °F to 400 °F],
SX Series switches allow for years of reliable performance in harsh conditions.
COMPACT AND ROBUST Built from military-grade components, MICRO SWITCH SX switches deliver MIL-PRF-8805 qualified listings in a lightweight, subminiature package. SX switches are available with FAA-PMA approvals for commercial aircraft applications. EASILY CONTROLS LOW-VOLTAGE DC APPLICATIONS Switches available with a choice of silver, gold-plated, or bifurcated gold contacts to handle a variety of electrical load requirements. GLOBAL APPROVALS UL/CSA, cUL, ENEC, and CE approvals allows the customer to utilize switches in products sold across the globe - in some of the most regulated regions.
Applications:
INDUSTRIAL •
In precision switch assemblies for pressure switches and temperature switches
• In power generation, fuel level switch for gas and oil
Related honeywell sensing micro switch sx basic switcs:
| 12SX2-T Bifurcated gold contacts 0.01 A |
| 3SX1-T Gold-plated contacts |
| 12SX1-T Enhanced reliability (gold |
| 12SX3-T Lowest differential travel, |
| 13SX21-T Gold-plated contacts |
| 23SX39-T |
| 23SX39-T2 |
| 93SX39-T |
| 411SX21-T |
| 413SX21-T |
| 11SX1-T Lowest differential travel 3 A |
| 11SX21-T General purpose 5 A |
| 11SX22-T General purpose 5 A |
| 17SX21-T Enhanced stability under |
| 1SX1-T Power-duty switching 7 A |
| 1SX12-T Low differential travel 7 A |
| 1SX48-T Added overtravel 7 A |
| 2SX1-T Lower operating force 7 A |
| 4SX1-T 204 °C [400 °F] for 100 |
| 21SX1-T Enhanced stability under |
| 21SX39-T |
| 21SX39-T2 |
| 91SX39-T |
| 311SX1-T 3,43 mm [0.135 in] straight |
| 313SX1-T 3,43 mm [0.135 in] straight |
| 311SX2-T 12,8 mm [0.505 in] straight |
| 313SX2-T 12,8 mm [0.505 in] straight |
| 311SX3-T 24,5 mm [0.965 in] straight |
| 313SX3-T 24,5 mm [0.965 in] straight |
| 311SX4-T 1,1 mm [0.042 in] |
| 313SX4-T |
| 311SX5-T 11,7 mm [0.459 in] |
| 313SX5-T |
Images :
Normally 11SX96 Micrcoswith uses as a set with JX-40 :
