ISO Integrated circuits CLRC63201T0FE112 Description:
RFID Reader IC 13.56MHz ISO 14443, ISO 15693, MIFARE SPI 3.3V ~ 5V
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
ISO Integrated circuits CLRC63201T0FE112 Description:
RFID Reader IC 13.56MHz ISO 14443, ISO 15693, MIFARE SPI 3.3V ~ 5V
The CLRC632 is a highly integrated reader IC for contactless communication at 13.56 MHz. The CLRC632 reader IC provides:
• outstanding modulation and demodulation for passive contactless communication
• a wide range of methods and protocols
• a small, fully integrated package
• pin compatibility with the MFRC500, MFRC530, MFRC531 and SLRC400 All protocol layers of the ISO/IEC 14443 A and ISO/IEC 14443 B communication standards are supported provided:
• additional components, such as the oscillator, power supply, coil etc. are correctly applied.
• standardized protocols, such as ISO/IEC 14443-4 and/or ISO/IEC 14443 B anticollision are correctly implemented
Specification:
|
Part Number
|
CLRC63201T/0FE,112
|
| Category | Electronics components |
|
Sub-Category
|
RF/IF and RFID Integarted circuits IC
|
| Family |
RFID, RF Access, Monitoring ICs
|
|
Mfr
|
Philip
|
|
Series
|
I-Code
|
|
Package
|
Reel
|
|
Part Status
|
Active
|
|
Type
|
RFID Reader
|
|
Frequency
|
13.56MHz
|
|
Standards
|
ISO 14443, ISO 15693, MIFARE
|
|
Interface
|
SPI
|
|
Voltage - Supply
|
3.3V ~ 5V
|
|
Operating Temperature
|
-40°C ~ 150°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
32-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
32-SO
|
|
Base Product Number
|
CLRC63201
|
Application :
Electronic payment systems
Identification systems
Access control systems
Subscriber services
Banking systems
Digital content systems
General information:
Highly integrated analog circuitry for demodulating and decoding card/label response
Buffered output drivers enable antenna connection using the minimum of external components
Proximity operating distance up to 100 mm
Supports both ISO/IEC 14443 A and ISO/IEC 14443 B standards
Supports MIFARE dual-interface card ICs and the MIFARE Mini, MIFARE 1K, MIFARE 4K protocols
Contactless communication at MIFARE higher baud rates (up to 424 kBd)
Supports both I-CODE1 and ISO/IEC 15693 protocols
Crypto1 and secure non-volatile internal key memory
Pin-compatible with the MFRC500, MFRC530, MFRC531 and the SLRC400
Parallel microprocessor interface with internal address latch and IRQ line
SPI compatibility Flexible interrupt handling
Automatic detection of parallel microprocessor interface type
64-byte send and receive FIFO buffer
Hard reset with low power function
Software controlled Power-down mode
Programmable timer
Unique serial number
User programmable start-up configuration
Bit-oriented and byte oriented framing
Independent power supply pins for analog, digital and transmitter modules
Internal oscillator buffer optimized for low phase jitter enables 13.56 MHz quartz connection
Clock frequency filtering
3.3 V to 5 V operation for transmitter in short range and proximity applications
3.3 V or 5 V operation for the digital module

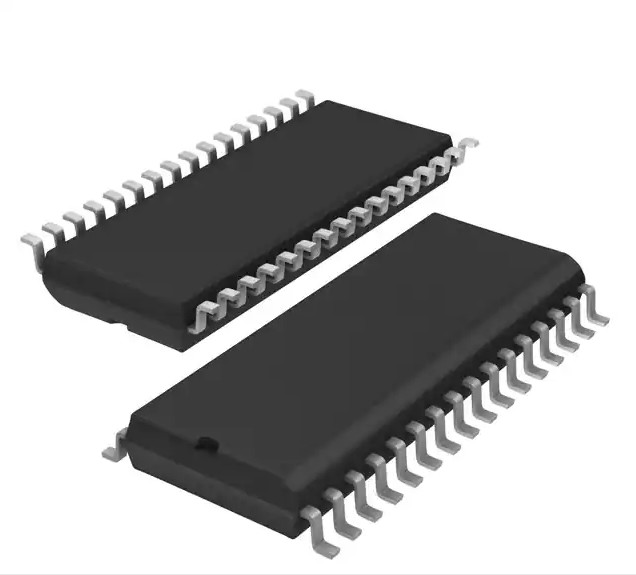

Images :
