S-80811CLNB-B7PT2U 1 Channel SC82AB Voltage Supervisor IC High Precision
Product Details:
|
|
Place of Origin: | Malaysia |
---|---|
Brand Name: | Analog Devices |
Certification: | ROHS |
Model Number: | ADN2817ACPZ |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1pieces |
Price: | Negotiated |
Packaging Details: | REEL |
Delivery Time: | 5 working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 5000PCS |
Detail Information |
|||
Products Name: | Integrated Circuits(IC) | Category: | Electronic Components |
---|---|---|---|
IC Family: | Clock/Timing Integrated Circuits (ICs) | Other Name: | ADN2817ACPZ-RL7 /ADN2817ACPZ-RL7TR |
Package: | 32-LFCSP-VQ (5x5) | Description: | SONET/SDH Clock And Data Recovery (CDR), Multiplexer IC 2.7GHz 1 Output 32-LFCSP-VQ (5x5) |
Main Purpose: | SONET/SDH | Details: | IC CLOCK/DATA RECOVERY 32-LFCSP |
Lead Free Status: | RoHS Compliant, PB Free, Lead Free | Operating Temperature: | -40°C ~ 85°C |
High Light: | ADN2817ACPZ Integrated Circuits IC,SONET SDH Clock And Data Recovery CDR,Integrated Circuits IC SONET SDH |
Product Description

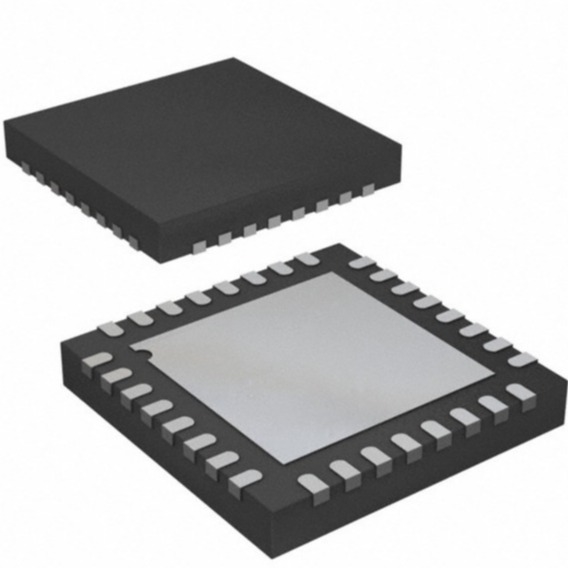

ADN2817ACPZ Analog Devices Integrated circuits IC SONET SDH Clock and Data Recovery (CDR)
Specifications:IC CLOCK/DATA RECOVERY 32-LFCSP ADN2817ACPZ
Category
|
Integrated Circuits (ICs)
|
Clock/Timing - Application Specific
|
|
Mfr
|
Analog Devices Inc.
|
Series
|
SONET SDH Clock and Data Recovery (CDR) IC |
Package
|
Tape & Reel (TR)
|
Part Status
|
Active
|
PLL
|
Yes
|
Main Purpose
|
SONET/SDH
|
Input
|
CML
|
Output
|
CML
|
Number of Circuits
|
1
|
Ratio - Input:Output
|
1:02
|
Differential - Input:Output
|
Yes/Yes
|
Frequency - Max
|
2.7GHz
|
Voltage - Supply
|
3V ~ 3.6V
|
Operating Temperature
|
-40°C ~ 85°C
|
Mounting Type
|
Surface Mount
|
Package / Case
|
32-VFQFN Exposed Pad, CSP
|
Supplier Device Package
|
32-LFCSP-VQ (5x5)
|
Base Product Number
|
ADN2817
|
