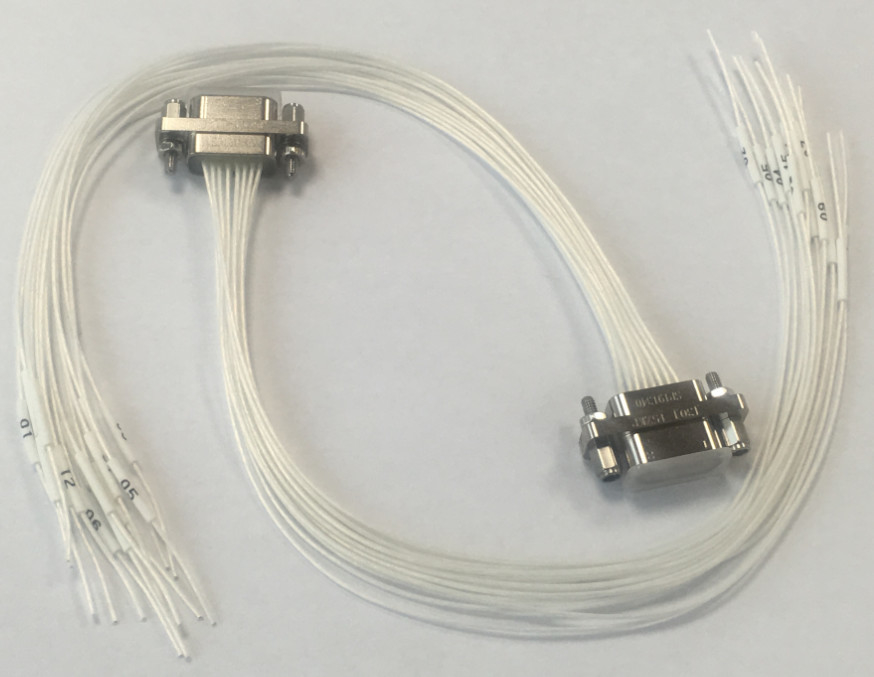

J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20
J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20

J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20

Product Details:
Place of Origin: CHINA
Brand Name: ORIGINAL
Certification: ROHS
Model Number: J30J-15ZKP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: Negotiated
Packaging Details: Tube
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 50000PCS
Contact Now

Detail Information
Category: Electronic Components Family: Miniature Rectangular Connector J30J Series
Details: J30J Series Of Miniature Rectangular Connector Socket With Line J30J-15ZKP... Subcategory: Connectors, Interconnects
Mounting Style: Chassis Mount Operating Ambient Temperature Range: -55°C ~ 85°C (TJ)
Part Number: J30J-15ZKP-20 J30J-15ZKP-30 J30J-15ZKP-50 J30J-15ZKP-100 Random Vibration: Power Spectral Density 0.4G2/HZ Total Acceleration Rms Value 23.1G

Product Description

J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20

Part Number J30J-15ZKP-20CM
Categories Connectors, Interconnects
Family miniature rectangular connector
Series J30J
Contact resistance <=10m Ohm
Part Status Active
Insulation resistance >=5000m Ohm
Dielectric withstand voltage 800V
Ambient temperature -55-+125C
Mechanical life 500 times
Impact 735m/s2 11ms
Mounting Feature 3A
Random vibration power spectral density 0.4G2/HZ total acceleration rms value 23.1G
Vibration 10HZ-2000HZ 196m/S2

Feature:
Number of cores: There are 10 specifications for choosing 9, 15, 21, 25, 31, 37, 51, 66, 74 and 100 cores.
Rubber line elastic pin (twist needle) with high contact density
Wire core area: 0.1mm2-0.15mm2
The locking components of this series are assembled with the product according to the ordering requirements. If no compact components are required, they should be specified in the contract.
The product meets the requirements of GJB2446 "General Specification for Ultra-Small Rectangular Electrical Connectors for Housing Positioning" (Equivalent MIL-C-83513)

Technical performance
Ambient temperature: -55-+125C
Vibration : 10HZ-2000HZ 196m/S2
Random vibration: power spectral density 0.4G2/HZ total acceleration rms value 23.1G
Impact : 735m/s2 11ms
Rated current : 3A
Contact resistance: <=10m Ohm
Insulation resistance : >=5000m Ohm
Dielectric withstand voltage: 800V
Mechanical life: 500 times

J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 0J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 1
J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 2

J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 3J30J Series of miniature rectangular Connector Socket with line J30J-15ZKP-20 4
