ICM-20600 TDK InvenSense Accelerometer Sensor Module IC Electronics Components

Product Details:
Place of Origin: China
Brand Name: TDK InvenSense
Certification: ROHS
Model Number: ICM-20600
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: Negotiated
Packaging Details: Tube
Delivery Time: 5-8Working
Payment Terms: T/T, Western Union
Supply Ability: 12000PCS

Detail Information

Category: Electronic Components SubCategory: Sensors, Transducers Motion Sensors
Family: IMUs (Inertial Measurement Units) IC Lead Free Status: Lead Free / RoHS Compliant, RoHS Compliant
Description: Accelerometer, Gyroscope, 6 Axis Sensor I²C, SPI Output Mounting Type: Surface Mounting
Details: LOW-POWER, HIGH-PERFORMANCE INTE Type: Accelerometer, Gyroscope, 6 Axis
Package: 14-VFLGA Module Temperature Range: -40 To +85
High Light:

TDK InvenSense Accelerometer

,

InvenSense Accelerometer Sensor Module

,

ICM-20600 TDK Accelerometer

Product Description

ICM-20600 TDK InvenSense Accelerometer MotionTracking Sensor Module IC Electronics components

ICM-20600 TDK InvenSense Accelerometer Sensor Module IC

High Performance 6-Axis MEMS MotionTracking™ Device in 2.5x3mm Package

GENERAL DESCRIPTION:

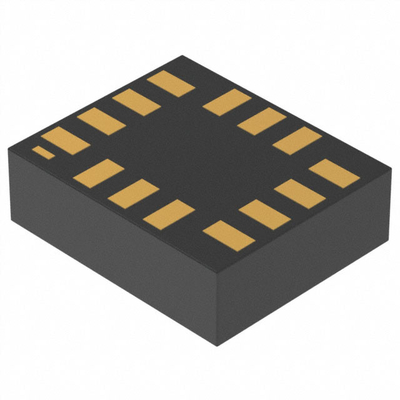

The ICM-20600 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 2.5x3x0.91mm (14-pin LGA) package. • High performance specs • Gyroscope sensitivity error: ±1% • Gyroscope noise: ±4 mdps/Hz • Accelerometer noise: 100 µg/Hz • Includes 1K-byte FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode • EIS FSYNC support ICM-20600 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I 2C and high-speed SPI at 10 MHz.

FEATURES:
3-Axis Gyroscope with Programmable FSR of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps • 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g and ±16g • User-programmable interrupts • Wake-on-motion interrupt for low power operation of applications processor • 1K byte FIFO buffer enables the applications processor to read the data in bursts • On-Chip 16-bit ADCs and Programmable Filters • Host interface: 10 MHz SPI or 400 kHz Fast Mode I2C • Digital-output temperature sensor • VDD operating range of 1.71V to 3.45V • MEMS structure hermetically sealed and bonded at wafer level • RoHS and Green compliant

APPLICATIONS:

Smartphones and Tablets
Wearable Sensors
IoT Applications
Motion-based game controllers
3D remote controls for Internet connected DTVs and set top boxes, 3D mice

Specification :

Part numberICM-20600
Category
Sensors, Transducers

Motion Sensors - IMUs (Inertial Measurement Units)
Mfr
TDK InvenSense
Series
MotionTracking™
Package
Tape & Reel (TR)
Part Status
Active
Sensor Type
Accelerometer, Gyroscope, 6 Axis
Output Type
I²C, SPI
Operating Temperature
-40°C ~ 85°C (TA)
Package / Case
14-VFLGA Module
Supplier Device Package
14-LGA (2.5x3)
Mounting Type
Surface Mount




Environmental & Export Classifications
ATTRIBUTEDESCRIPTION
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
ECCNEAR99
HTSUS8542.39.0001


Related part number :

MPU-6500INVENSEQFN
MPU-6881INVENSEQFN
MPU-9250INVENSEQFN
ICM-20600INVENSEQFN
ICM-20608INVENSEQFN
ICM-20608DINVENSEQFN16
ICM-20602INVENSEQFN
