Home > products > Electronic Capacitors > United Chemi Con 100uF 50V Capacitor SMD Electronic Capacitors

United Chemi Con 100uF 50V Capacitor SMD Electronic Capacitors

Name: United Chemi Con 100uF 50V Capacitor SMD Electronic Capacitors
Brand: United Chemi-Con/CX
SKU: EMLA500ADA101MHA0G
Rating: 4.9 (157 reviews)

Category:

Electronic Capacitors

Price:

Negotiated

Payment Method:

T/T, Western Union,PAYPAL

Specifications

Product Name:

Cap Aluminum 100uF 35V 20% (8 X 10mm) Solder Pin Cylindrical 600mA 8000 Hr 105°C T/R (Alt: EMZE350ADA101MHA0G)

Family:

Aluminum Electrolytic Capacitors

Category:

Electronic Capacitors

Series:

MEZ Series SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS

Capacitance:

100uF 50V 20% (8 X 10mm) SMD

Operating Temperature:

-40°C ~ 105°C

Voltage:

6.3v-100v For Choice

Mounting Type:

Surface Mount

Construction:

Cylindrical

Function:

Coupling,Filtering

High Light:

United Chemi Con 100uF 50V

100uF 50V Capacitor SMD

100uf 50v electrolytic capacitor

Introduction

EMLA500ADA101MHA0G United Chemi-Con MEZ Series Capacitor Aluminum Lytic 100uF 50V 20% (8 X 10mm) SMD 350mA 3000h 105°C

EMLA500ADA101MHA0G Capacitor Aluminum Lytic 100uF 50V 20% (8 X 10mm) SMD 350mA 3000h 105°C

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS

AIchipTM-MZESeries

Endurance : 7,000 to 8,000 hours at 105℃

Low impedance

Rated voltage range : 6.3 to 50V

Nominal capacitance range : 10 to 470µF

Suitable for long life and low profile products

Solvent resistant type (see PRECAUTIONS AND GUIDELINES)

RoHS Compliant

Cap Aluminum 100uF 35V 20% (8 X 10mm) Solder Pin Cylindrical 600mA 8000 hr 105°C T/R (Alt: EMZE350ADA101MHA0G)

Specification:

Part Number	EMLA500ADA101MHA0G
Name	Capacitor Aluminum
MFG	United Chemi-Con
HTS	8532.22.00.20
Automotive	No
PPAP	No
Type	Electrolytic
Capacitance Value	100uF
Tolerance	20%
Voltage	50VDC
Equivalent Series Resistance Type	Low
IR (mA)	350
IL (uA)	50@2Min
Lifetime (h)	3000
Polarity	Polar
Construction	Cylindrical
Mounting	Surface Mount
Number of Terminals	2
Size (mm)	8 X 10
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	105
Packaging	Tape and Reel
Product Diameter (mm)	8
Product Height (mm)	10

United Chemi Con 100uF 50V Capacitor SMD Electronic Capacitors

Electronic capacitors Application :
Consumer electronics,
Industrial control,
New energy,
Communication,
Medicine,
Vehicle-mounted system,
Lighting,
Security,
Power adapter,
Meters and Intelligence.

Functions of capacitors

1. Coupling;
2. Filtering.

Maybe you are interesting in more related products as follows:

EMZE250ADA101MF90G

EMZE250ADA470MF73G

EMZE6R3ADA470ME73G

EMZE250ADA330MF73G

EMZE6R3ADA101MF73G

EMZE6R3ADA221MF90G

EMZE6R3ADA331MF90G

EMZE250ADA221MHA0G

EMZE6R3ADA471MHA0G

EMZE250ADA331MJA0G

EMZE100ADA330ME73G

EMZE350ADA100ME73G

EMZE100ADA151MF73G

EMZE350ADA100MF73G

EMZE160ADA220ME73G

EMZE350ADA220ME73G

EMZE160ADA470MF73G

EMZE350ADA220MF73G

EMZE160ADA101MF73G

EMZE350ADA330MF90G

VT-Chip Aluminum Electrolytic Capacitors Specification :

Category	Aluminum Electrolytic Capacitors
Series	V-Chip electrolytic capacitor
Operating Temperature Range	-55 ~ +125℃
Rated Working Voltage Range	6.3 - 100V
Nominal Capacitance Range	0.1 ~1500 μF
Leakage Current	L≤0.01CV or3(μA) Whichever is greater measured after 2 minutes application of rated working voltage at +20℃
Standards	JIS- C-5101-4 (IEC 60384)

Our capacitor Category:
V-Chip Aluminum Electrolytic Capacitors
Conductive Polymer Aluminum Solid Capacitors,
Radial Aluminum Electrlytic Capacitors,
Snap-in Aluminum Electrolytic Capacitors
Screw Type Electrolytic Capacitors

VT-Chip Aluminum Electrolytic Capacitors Performance Characteristics:

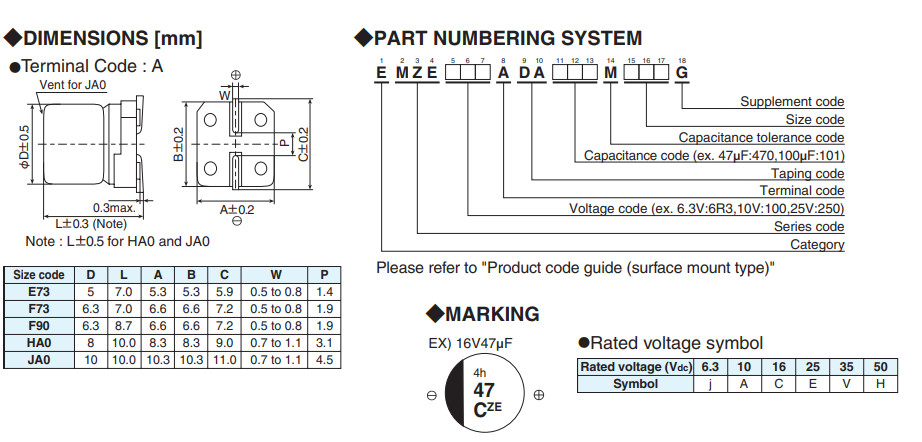

Diagram of Dimensions:

United Chemi Con 100uF 50V Capacitor SMD Electronic Capacitors

VT Series (0.1uf-1500uf 4v-100v ) Chip electrolytic capacitor :

Category	Series	Temperature range(℃)	Voltage(V)	Capacity(uF)	Specifications	Ripple current	Lifespan(Hrs)
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	22	4*5.4	29	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	33	4*5.4	29	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	47	4*5.4	36	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	100	5*5.4	47	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	220	6.3*5.4	74	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	330	6.3*7.7	105	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	470	8*10.2	300	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	1000	8*10.2	300	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	6.3V	1500	10*10.2	480	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	22	4*5.4	28	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	33	4*5.4	29	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	47	5*5.4	43	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	100	6.3*5.4	71	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	220	6.3*7.7	105	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	330	8*10.2	196	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	470	8*10.2	200	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	10V	1000	10*10.2	400	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	10	4*5.4	28	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	22	4*5.4	28	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	33	5*5.4	35	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	47	5*5.4	39	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	100	6.3*5.4	70	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	150	6.3*7.7	105	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	220	8*10.2	150	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	330	8*10.2	170	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	470	8*10.2	340	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	16V	680	10*10.2	380	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	4.7	4*5.4	22	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	10	4*5.4	22	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	22	4*5.4	35	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	33	6.3*5.4	65	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	47	6.3*5.4	70	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	100	6.3*7.7	91	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	220	8*10.2	160	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	330	8*10.2	180	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	25V	470	10*10.2	360	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	4.7	4*5.4	22	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	10	5*5.4	30	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	22	6.3*5.4	60	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	33	6.3*5.4	65	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	47	6.3*7.7	84	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	100	8*10.2	120	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	220	8*10.2	170	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	35V	330	10*10.2	250	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	0.1	4*5.4	1	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	0.22	4*5.4	2	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	0.33	4*5.4	3	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	0.47	4*5.4	5	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	1	4*5.4	10	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	2.2	4*5.4	16	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	3.3	4*5.4	16	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	4.7	5*5.4	23	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	10	6.3*5.4	35	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	33	6.3*7.7	70	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	100	8*10.2	110	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	220	10*10.2	150	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	22	8*10.2	30	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	33	8*10.2	36	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	50V	47	10*10.2	50	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	100V	4.7	8*10.2	50	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	100V	10	8*10.2	55	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	100V	22	8*10.2	55	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	100V	33	10*10.2	65	1000
Aluminum Electrolytic Capacitors	VT	-55~+105	100V	47	10*10.2	65	1000

GENERAL SPECIFICATIONS OF CAPACITORS:

Capacitors are mainly divided into the following 10 categories:
1, according to the structure of three categories: fixed capacitor, variable capacitor and fine tuning capacitor.
2. Classification by electrolyte: organic dielectric capacitors, inorganic dielectric capacitors, electrolytic capacitors, electric heating capacitors and air dielectric capacitors.
3, according to the purpose: high frequency bypass, low frequency bypass, filtering, tuning, high frequency coupling, low frequency coupling, small capacitor.
4, according to the different manufacturing materials can be divided into: porcelain dielectric capacity, polyester capacitor, electrolytic capacitor, tantalum capacitor, and advanced polypropylene capacitor and so on.
5, high frequency bypass: ceramic capacitor, mica capacitor, glass film capacitor, dacron capacitor, glass glaze capacitor.
6, low frequency bypass: paper capacitor, ceramic capacitor, aluminum electrolytic capacitor, dacron capacitor.
7, filtering: aluminum electrolytic capacitors, paper capacitors, composite paper capacitors, liquid tantalum capacitors.
8, tuning: ceramic capacitor, mica capacitor, glass film capacitor, polystyrene capacitor.
Low coupling: paper capacitors, ceramic capacitors, aluminum electrolytic capacitors, dacron capacitors, solid tantalum capacitors.
10, small capacitors: metallized paper capacitors, ceramic capacitors, aluminum electrolytic capacitors, polystyrene capacitors, solid tantalum capacitors, glass glaze capacitors, metallized polyester capacitors, polypropylene capacitors, mica capacitors.

Technological Innovation :
With experienced researchers, technicians and management staff as well as imported cutting-edge manufacturing and testing equipment,
We are able to develop world-class aluminum capacitors. Material achievements have been made in terms of long lifespan, high temperature and high ripple resistance and LOWESR.
The technology employed has reached an advanced level comparing with the similar products in Japan.
We cooperate with universities, research institutes and experts at home and abroad to research and develop first-class capacitor and electrode foil manufacturing technologies in China.

R & D Center :
Research Orientation: development of small, slender, flame retardant and safe aluminum electrolytic capacitors;
Core Technologies: technologies of high ripple resistance, high temperature resistance (130 ℃), high frequency resistance & low impedance, and long lifespan (105 ℃, 12000h) etc.

We are now developing new core technologies, namely flame retarding and impact & vibration resistance for the products.So please feel free to contact us for more information.
