QFP GD32F103C8T6 M3 32Bit Microcontroller IC 72MHz 64KB Surface Mount

Product Details:
Place of Origin: China
Brand Name: GIDADEVICE
Certification: ROHS
Model Number: GD32F103C8T6
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: Negotiated
Packaging Details: Standard package
Delivery Time: Subject to be final confirm
Payment Terms: T/T, Western Union

Detail Information

Category: Electronic Components-Integrated Circuits Family: Microcontroller (MCU) IC
Package: QFP Connectivity: CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB
Peripherals: DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT Program Memory Size: 64KB (64K X 8)
Program Memory Type: FLASH Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount Core Processor: ARM® Cortex®-M3
Base Part Number: 32F103
High Light:

M3 32Bit Microcontroller IC

,

GD32F103C8T6 M3 32Bit

,

QFP GD32F103C8T6

Product Description

GD32F103C8T6 M3 series Microcontroller IC 32-Bit 72MHz 64KB (64K x 8) FLASH Integrated circuits



Reference Part number:
GD32F103x8 GD32F103C8, GD32F103R8 GD32F103V8, GD32F103T8 GD32F103xB GD32F103RB

GD32F103VB,GD32F103CB, GD32F103TB



Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series GD32F103C8T6
Package Tray
Details ARM® Cortex®-M3 series Microcontroller IC 32-Bit 72MHz 64KB (64K x 8) FLASH
Core Processor ARM® Cortex®-M3
Core Size 32-Bit
Speed 100MHz
Connectivity CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT
Number of I/O 70
Program Memory Size 64KB (64K x 8)
Program Memory Type FLASH
RAM Size 20K x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V
Data Converters A/D 8x12b; D/A 1x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case LQFP44
Supplier Device Package 44LQFP
Base Product Number 32F103



QFP GD32F103C8T6 M3 32Bit Microcontroller IC 72MHz 64KB Surface Mount 0


QFP GD32F103C8T6 M3 32Bit Microcontroller IC 72MHz 64KB Surface Mount 1

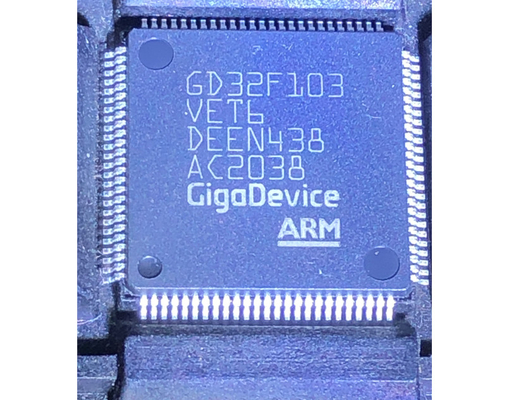

Related part number GD32F103VE6T are also in stock for available  :

QFP GD32F103C8T6 M3 32Bit Microcontroller IC 72MHz 64KB Surface Mount 2

Features
• ARM® 32-bit Cortex®-M3 CPU Core
– 72 MHz maximum frequency,
1.25 DMIPS/MHz (Dhrystone 2.1)
performance at 0 wait state memory
access
– Single-cycle multiplication and hardware
division
• Memories
– 64 or 128 Kbytes of Flash memory
– 20 Kbytes of SRAM
• Clock, reset and supply management
– 2.0 to 3.6 V application supply and I/Os
– POR, PDR, and programmable voltage
detector (PVD)
– 4-to-16 MHz crystal oscillator
– Internal 8 MHz factory-trimmed RC
– Internal 40 kHz RC
– PLL for CPU clock
– 32 kHz oscillator for RTC with calibration
• Low-power
– Sleep, Stop and Standby modes
– VBAT supply for RTC and backup registers
• 2 x 12-bit, 1 µs A/D converters (up to 16
channels)
– Conversion range: 0 to 3.6 V
– Dual-sample and hold capability
– Temperature sensor
• DMA
– 7-channel DMA controller
– Peripherals supported: timers, ADC, SPIs,
I
2Cs and USARTs
• Up to 80 fast I/O ports
– 26/37/51/80 I/Os, all mappable on 16
external interrupt vectors and almost all
5 V-tolerant



Debug mode
– Serial wire debug (SWD) & JTAG
interfaces
• 7 timers
– Three 16-bit timers, each with up to 4
IC/OC/PWM or pulse counter and
quadrature (incremental) encoder input
– 16-bit, motor control PWM timer with deadtime generation and emergency stop
– 2 watchdog timers (Independent and
Window)
– SysTick timer 24-bit downcounter
• Up to 9 communication interfaces
– Up to 2 x I2C interfaces (SMBus/PMBus)
– Up to 3 USARTs (ISO 7816 interface, LIN,
IrDA capability, modem control)
– Up to 2 SPIs (18 Mbit/s)
– CAN interface (2.0B Active)
– USB 2.0 full-speed interface
• CRC calculation unit, 96-bit unique ID
• Packages are ECOPACK







Environmental & Export Classifications



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001



QFP GD32F103C8T6 M3 32Bit Microcontroller IC 72MHz 64KB Surface Mount 3



Most.popular Microcontrollers IC Chips

Reference Part number:
STM32F103x8 STM32F103C8, STM32F103R8
STM32F103V8, STM32F103T8
STM32F103xB STM32F103RB STM32F103VB,
STM32F103CB, STM32F103TB
