HCMOS TTL 12MHz Clock Crystal Oscillator CB3LV-3C-12M00000
HCMOS TTL Clock Crystal Oscillator
,CB3LV-3C-12M00000
,12MHz Clock Crystal Oscillator
CB3LV-3C-12M00000 CTS HCMOS/TTL Clock Oscillator XO 12.0000MHZ HCMOS TTL Crystal
Model CB3 & CB3LV HCMOS/TTL Clock Oscillator 7.0mm x 5.0mm Low Cost Crystal
FEATURES
• Standard 7.0mm x 5.0mm 4-Pad Surface Mount Package
• HCMOS/TTL Compatible Output
• Fundamental and 3rd Overtone Crystal Designs
• Frequency Range 1 – 200 MHz
• Frequency Stability ±50 ppm Standard, ±25 ppm and ±20 ppm Available
• Operating Voltages +5.0Vdc or +3.3Vdc
• Operating Temperature to -40°C to +85°C
• Output Enable Standard
• Tape & Reel Packaging
• RoHS/Green Compliant
APPLICATIONS
Applications for Model CB3 and CB3LV include digital video, networking equipment, wireless communications,
broadband access, Ethernet/Gigabit Ethernet, microprocessors/DSP/FPGA, storage area networks, fiber channel,
computers and peripherals, test and measurement, SONET/SDH/DWDM, base stations and Pico cells.
Specification:
| Part number | CB3LV-3C-12M000000 /CB3LV-3I-12M000000 |
|
Category
|
Crystals, Oscillators, Resonators
|
|
Oscillators
|
|
|
Mfr
|
CTS-Frequency Controls
|
|
Series
|
CB3LV
|
|
Package
|
Tape & Reel (TR)
|
|
Part Status
|
Active
|
|
Base Resonator
|
Crystal
|
|
Type
|
XO (Standard)
|
|
Frequency
|
12 MHz
|
|
Function
|
Enable/Disable
|
|
Output
|
HCMOS, TTL
|
|
Voltage - Supply
|
3.3V
|
|
Frequency Stability
|
±50ppm
|
|
Absolute Pull Range (APR)
|
-
|
|
Operating Temperature
|
-20°C ~ 70°C
|
|
Current - Supply (Max)
|
12mA
|
|
Ratings
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
4-SMD, No Lead
|
|
Size / Dimension
|

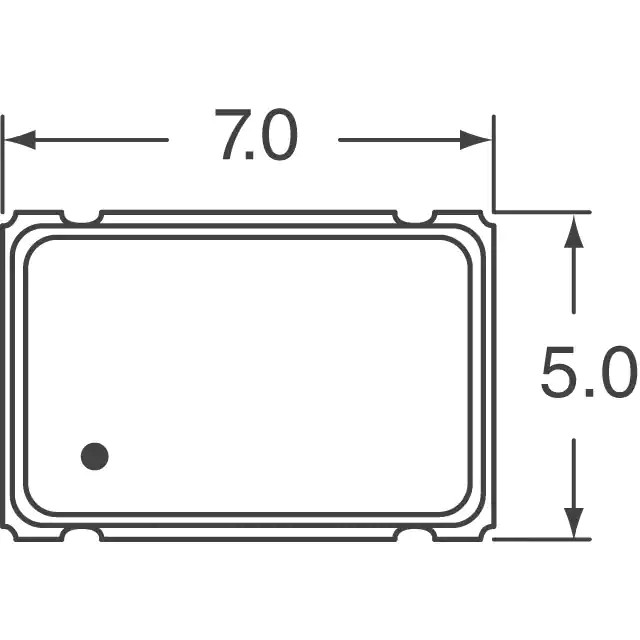

0.276" L x 0.197" W (7.00mm x 5.00mm)
|
|
Height - Seated (Max)
|
0.071" (1.80mm)
|
|
Current - Supply (Disable) (Max)
|
10µA
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.60.0060 |
