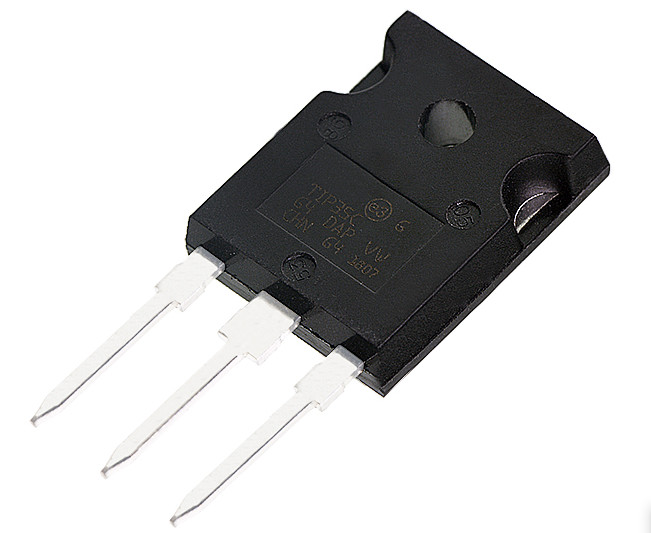

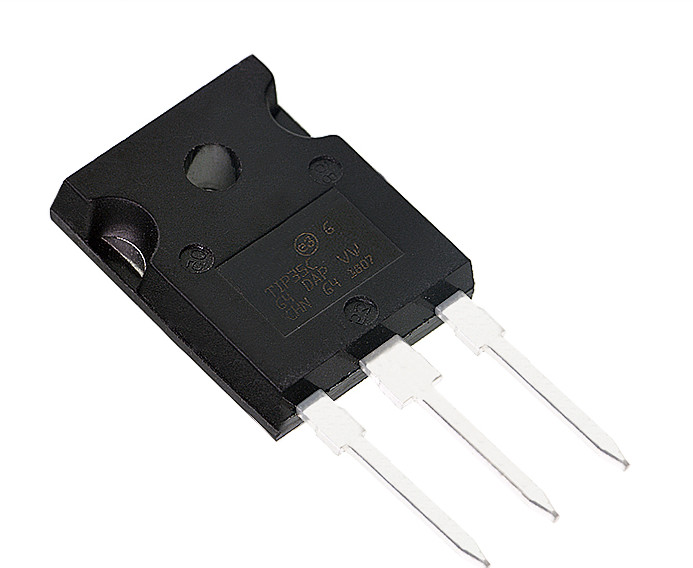

TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors

Product Details:
Place of Origin: CHINA
Brand Name: STMicroelectronics
Certification: ROHS
Model Number: TIP35C TIP41C TIP42C TIP122 TIP127 TIP142P
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiated
Packaging Details: REEL/tube
Delivery Time: 2-15days
Payment Terms: T/T, Western Union
Supply Ability: 500000pcs

Detail Information

Applications: ■ General Purpose ■ Audio Amplifier Category: Electronic Components-Complementary NPN - PNP Transistors
Sub-category: Discrete Semiconductor Products Transistors - Bipolar (BJT) - Single Description: Bipolar (BJT) Transistor NPN 100 V 25 A 3MHz 125 W Through Hole TO-247-3
Package Type: TO-247-3 TIP35C: TRANSISTOR NPN BIPOLAR LF 25A 100V 125W TO-3
TIP41C: TRANSISTOR NPN BIPOLAR LF 6A 100V 65W TIP42C: TRANSISTOR PNP BIPOLAR LF 6A 100V 65W TO-220
TIP122: TRANSISTOR NPN DARLINGTON 5A 100V 65W TO-220 TIP127: TRANSISTOR PNP DARLINGTON 5A 100V 65W TO-220
TIP142P: TRANSISTOR NPN DARLINGTON 10A 100V 125W TO-247 AISLADO. Mounting: Through Hole
High Light:

TIP142P NPN PNP Transistor

,

TIP122 TIP127 NPN PNP Transistor

,

Bipolar Discrete Semiconductors

Product Description

TIP35C TIP41C TIP42C TIP122 TIP127 TIP142P

Complementary NPN - PNP transistors Bipolar Discrete Semiconductor Products



Complementary power transistors

Description:

The devices are manufactured in planar technology with “base island” layout. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage.



Features

■ Low collector-emitter saturation voltage

■ Complementary NPN - PNP transistors



Applications

■ General purpose

■ Audio amplifier



Part Number DESCRIPTION

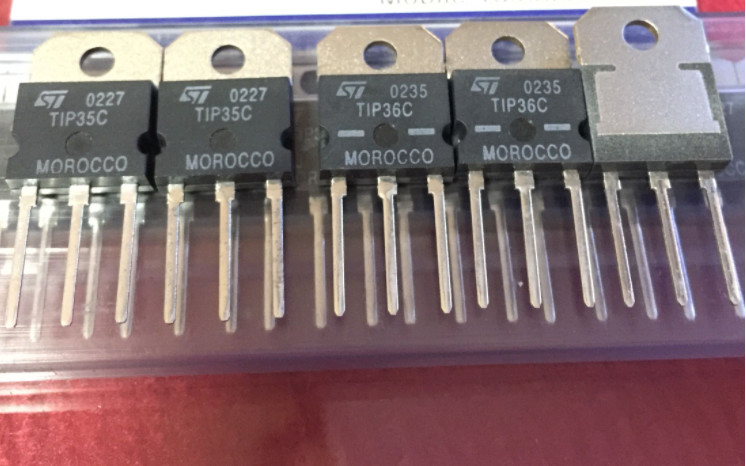

TIP35C TRANSISTOR NPN BIPOLAR LF 25A 100V 125W TO-3
TIP41C TRANSISTOR NPN BIPOLAR LF 6A 100V 65W
TIP42C TRANSISTOR PNP BIPOLAR LF 6A 100V 65W TO-220
TIP122 TRANSISTOR NPN DARLINGTON 5A 100V 65W TO-220
TIP127 TRANSISTOR PNP DARLINGTON 5A 100V 65W TO-220
TIP142P TRANSISTOR NPN DARLINGTON 10A 100V 125W TO-247 AISLADO.

TIP35C TIP36C datasheet : TIP35_TIP36.pdf



Datasheet :

TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 0

TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 1

TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 2

TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 3TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 4TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 5TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 6TIP122 TIP127 TIP142P NPN PNP Transistor Bipolar Discrete Semiconductors 7
