22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular
22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular 22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular 22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular

22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular

Product Details:
Place of Origin: China
Brand Name: ONPOW
Certification: ROHS
Model Number: 84-5020.0020
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiated
Packaging Details: Standard package
Delivery Time: 2-5Working
Payment Terms: T/T, Western Union,paypal
Supply Ability: 12000PCS
Contact Now

Detail Information
Details: 22mm 1NC, Non Illuminated E-stop Switch Family: SWITCH EMERGENCY-STOP, 1NC, NON
Category: Emergency Stop Switches(E-Stop) -Electronic Components Panel Cutout Dimensions Circular: 22.30mm Dia
Lead Free Status: Lead Free / RoHS Compliant, RoHS Compliant Base Product Number: 84-5020
Mounting Type: Panel Mount, Front Reset Operation: Twist
Circuit: SPST-NC Switch Function: On-Off
Termination Style Quick Connect -: 0.110" (2.8mm) Ingress Protection: IP65 - Dust Tight, Water Resistant
Operating Temperature: -25°C ~ 65°C
High Light:

22.30mm IP65 Emergency Stop Switches

,

Emergency Stop Switches 22mm 1NC

,

22mm 1NC E Stop Switches

Product Description

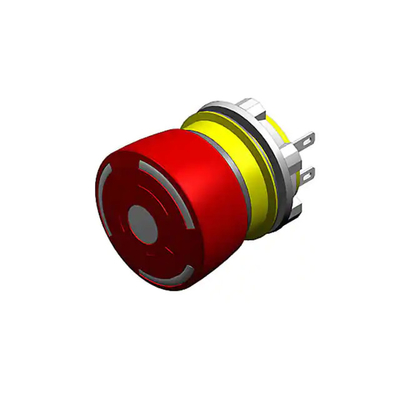

Emergency Stop (E-Stop) Switches 84-5020 22mm 1NC, non illuminated Circular - 22.30mm IP65


Specification :

Part number LAS1-A / 84-50200020
Category Switches
　 Emergency Stop (E-Stop) Switches
Mfr ONPOW
Series LAS1-A / 84Series
Package Standard package
Part Status Active
Base Product Number LAS1-A / 84-5020
Mounting Type Panel Mount, Front
Reset Operation Twist
Circuit SPST-NC
Switch Function On-Off
Features -
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 250 V
Panel Cutout Dimensions Circular - 22.30mm Dia
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Operating Temperature -25°C ~ 65°C




Typical application areas

Machinery

Measurement and control engineering

Lifting and handling equipment

Process automation

Special vehicles

Ticketing machines

Medical equipment

Food industry



Functions
Pushbutton
Illuminated pushbutton
Indicator
Capacitive buttons with IO-Link configurability

Design
Flush
Raised

IP front protection
IP40
IP65
IP67
IP69K

Ratings
42 VAC (100 mA)
240 VAC (1.5 A)
8.4 ... 32V (200 mA) electronic switching element



Mounting cut-outs:

Ø 22.3 mm

Ø 22.5 mm

Ø 30.5 mm



Lens Material
Aluminium
Plastic
Stainless steel

Markings
Engraving
Laser marking
Hot stamping

Pad printing
Screen print
Milling
Illuminated Symbol



22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular 022.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular 1

22.30mm IP65 Emergency Stop Switches 22mm 1NC Non Illuminated Circular 2







Environmental & Export Classifications
ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
