10058831 10058831-110LF ICC FCI Amphenol Card Edge Connectors Terminal

Category:
Connectors Terminal
Price:
Negotiated
Payment Method:
T/T, Western Union,paypal
Specifications
Details:
Connector MICROTCA FMALE 170POS 0.029
Description:
170 Position Female Connector MicroTCA™ Gold 0.029" (0.75mm) Black
Category:
Connectors, Interconnects-Connectors, InterconnectsConnectors, InterconnectsConnectors, InterconnectsConnectors, Interconnects
Family:
Card Edge Connectors - Edgeboard Connectors
Mounting Type:
Through Hole
Series:
Card Edge Connectors - Edgeboard Connectors
Card Type:
MicroTCA™
Product Name:
High Speed / Modular Connector Accessories Pin External Thread Straight Zinc Alloy Silver VITA 46
Pitch:
0.029" (0.75mm)
Termination:
Press-Fit
Base Product Number:
1469491
High Light:

ICC FCI Amphenol Card Edge Connectors

,

10058831-110LF

,

Connectors Terminal 10058831

Introduction

10058831 10058831-110LF Amphenol ICC FCI 170 Position Female Connector MicroTCA Card Edge Connectors Edgeboard Connector



170 Position Female Connector MicroTCA™ Gold 0.029" (0.75mm) Black 10058831-110LF 10058831-111LF

10058831-210LF 10058831-211LF 10058831-110  10058831-111



Specification:

Part number 10058831-111LF
Category

Mfr
Amphenol ICC (FCI)
Series
-
Package
Tube
Part Status
Active
Card Type
MicroTCA™
Gender
Female
Number of Positions/Bay/Row
85
Number of Positions
170
Card Thickness
0.062" (1.57mm)
Number of Rows
2
Pitch
0.029" (0.75mm)
Read Out
Dual
Features
-
Mounting Type
Through Hole
Termination
Press-Fit
Contact Material
Copper Alloy
Contact Finish
Gold
Contact Finish Thickness
30.0µin (0.76µm)
Contact Type
Cantilever
Color
Black
Material - Insulation
Polyamide (PA), Nylon
Base Product Number
10058831

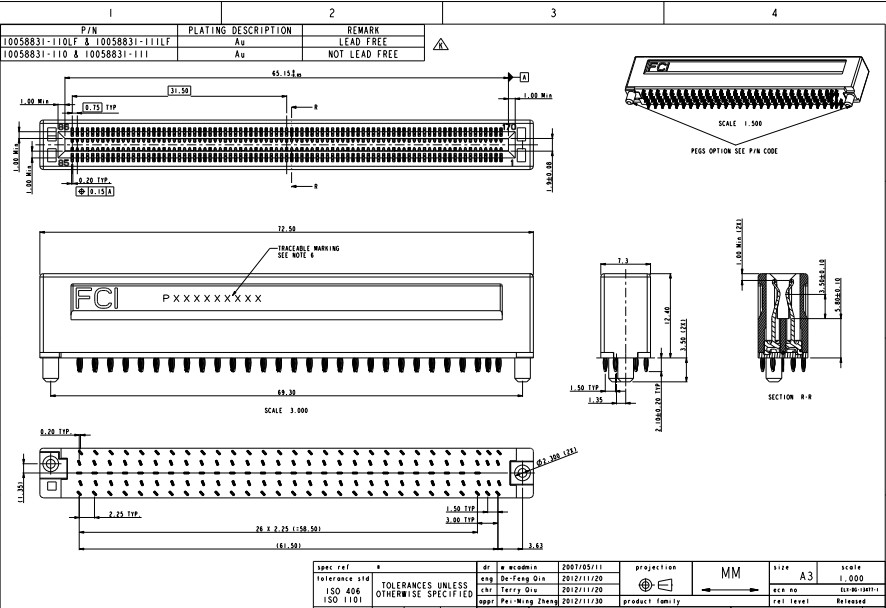

10058831-110LF  FCI datasheet 10058831.pdf





10058831-110LF Amphenol ICC FCI  CONN MICROTCA FMALE 170POS 0.029 datasheet:



10058831 10058831-110LF ICC FCI Amphenol Card Edge Connectors Terminal

10058831 10058831-110LF ICC FCI Amphenol Card Edge Connectors Terminal

10058831 10058831-110LF ICC FCI Amphenol Card Edge Connectors Terminal

10058831 10058831-110LF ICC FCI Amphenol Card Edge Connectors Terminal
