MCP73213 MCP73223 MCP73811 MCP73812 MCP73827 IC Linear Battery Charger Controller PMIC Chip

Product Details:
Place of Origin: Philippines
Brand Name: Microchip Technology
Certification: ROHS
Model Number: MCP73213 MCP73223 MCP73811 MCP73812 MCP73827
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiated
Packaging Details: Tube/REEL
Delivery Time: 1-14working days
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 50000PCS

Detail Information

Series: Battery Management Product Family Details: Linear Battery Charger Controller Li-Ion/Li-Pol 1000mA 3.6V 10-Pin DFN
Type: PMIC Chip-Battery Charger Mounting Type: Surface Mounting
Category: Electronic Components-Integrated Circuits(IC) Description: Battery Management Single Cell OVP Battery Charger IC
Package: QFN Operating Ambient Temperature Range: -40°C ~ 150°C
Full Part Number: MCP73213 MCP73223 MCP73811 MCP73812 MCP73827 Datasheet: Single-Cell Li-Ion/Li-Polymer Battery Charge Management Controller With Input Overvoltage Protection

Product Description

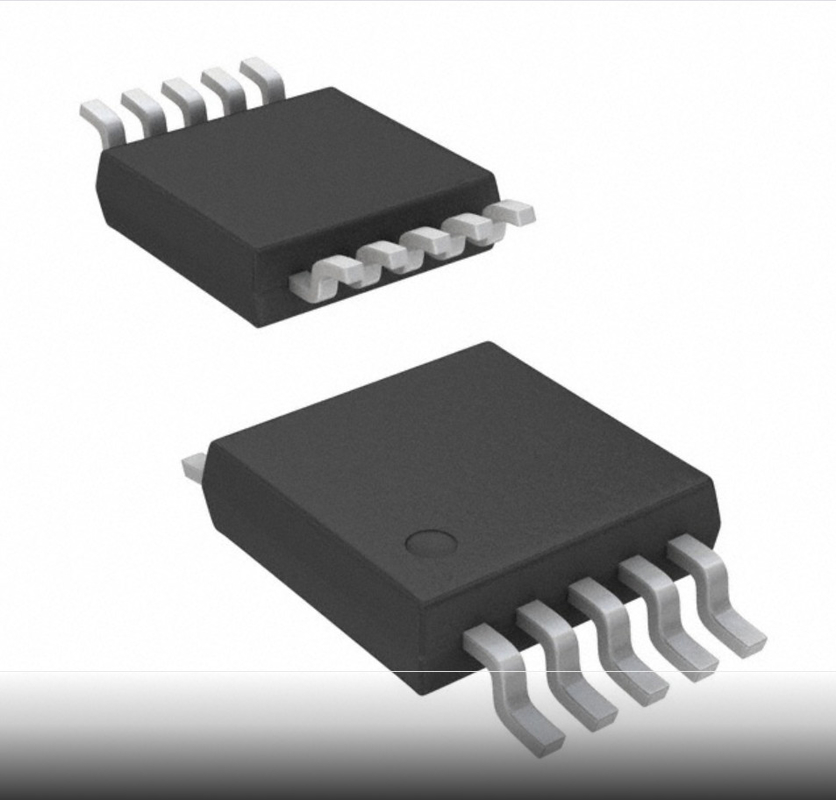

MCP73213 MCP73223 MCP73811 MCP73812 MCP73827 IC Linear Battery Charger Controller PMIC Chip



Charger IC Lithium Ion/Polymer IC

Battery Management Product Family Specification:

Category Integrated Circuits (ICs)
Series PMIC - Battery Chargers
Mfr Microchip Technology
Part number MCP73213 MCP73223 MCP73811 MCP73812 MCP73827 Full series PMIC
Package Tape & Reel (TR)
Part Status Active
Battery Chemistry Lithium Ion/Polymer
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features -
Fault Protection Over Voltage
Charge Current - Max 1.1A
Battery Pack Voltage 4.2V
Voltage - Supply (Max) 6.5V
Interface -
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 10-VFDFN Exposed Pad
Supplier Device Package 10-DFN (3x3)
Base Product Number MCP73



Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071





Microchip is a leading provider of microcontroller, mixed-signal, analog,security and Flash-IP solutions,

as well as a wide variety of other products.
Microchip enable low-risk product development, lower total system cost and faster time to market

for thousands of diverse customer applications worldwide.





Applications:
• Low-Cost Li-Ion/Li-Poly. Battery Chargers
• MP3 Players
• Digital Still Camera
• Portable Media Players
• Handheld Devices
• Bluetooth® Headsets
• USB Chargers



Features:
• Complete Linear Charge Management Controller:
- Integrated Input Overvoltage Protection
- Integrated Pass Transistor
- Integrated Current Sense
- Integrated Reverse Discharge Protection
• Constant Current/Constant Voltage Operation
with Thermal Regulation
• 4.15V Undervoltage Lockout (UVLO)
• 18V Absolute Maximum Input with OVP:
- 6.5V (MCP73113)
- 5.8V (MCP73114)
• High Accuracy Preset Voltage Regulation Through
Full Temperature Range (-5°C to +55°C): +0.5%
• Battery Charge Voltage Options:
- 4.10V, 4.20V, 4.35V or 4.4V
• Resistor Programmable Fast Charge Current:
- 130 mA-1100 mA
• Preconditioning of Deeply Depleted Cells:
- Available Options: 10% or Disable
• Integrated Precondition Timer:
- 32 Minutes or Disable
• Automatic End-of-Charge Control:
- Selectable Minimum Current Ratio:
5%, 7.5%, 10% or 20%
- Elapse Safety Timer: 4 HR, 6 HR, 8 HR or
Disable
• Automatic Recharge:
- Available Options: 95% or Disable
• Charge Status Output-Two Style Options
• Soft Start
• Temperature Range: -40°C to +85°C
• Packaging: DFN-10 (3 mm x 3 mm)
