LNK6428K 0.975A 11 Pin ESOP AC DC Converter IC Power Integration
LNK6428K 0.975A 11 Pin
,0.975A 11 Pin ESOP AC DC Converter IC
,ESOP AC DC Converter IC Power Integration
LNK6428K Power Switch 0.975A 11-Pin ESOP AC/DC Converters IC Power Integration
Applications:
Appliance,
industrial,
utility meter,
smart grid,
solar inverters and
smart lighting
Description:

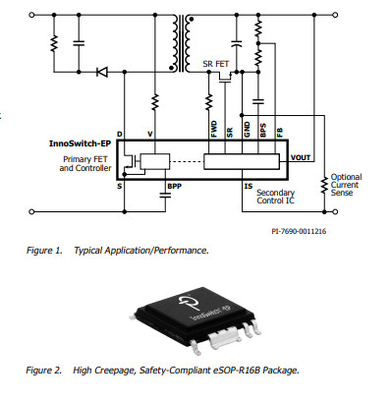

The InnoSwitch™-EP family of ICs dramatically simplify the development and manufacturing of low-voltage, high current power supplies, particularly those in compact enclosures or with high efficiency requirements. The InnoSwitch-EP architecture is revolutionary in that the devices incorporate both primary and secondary controllers, with senseelements and a safety-rated feedback mechanism into a single IC.
Close component proximity and innovative use of the integrated communication link permit accurate control of a secondary-side synchronous rectification MOSFET and optimization of primary-side switching to maintain high efficiency across the entire load range.
Additionally, the minimal DC bias requirements of the link, enable the system to achieve less than 10 mW no-load to maximize efficiency in standby.
Specifications:
| Part number | LNK6428K |
|
Category
|
Integrated Circuits (ICs)
|
|
PMIC - AC DC Converters, Offline Switchers
|
|
|
Mfr
|
Power Integrations
|
|
Series
|
InnoSwitch™-EP
|
|
Package
|
Tube/REEL
|
|
Output Isolation
|
Isolated
|
|
Internal Switch(s)
|
Yes
|
|
Voltage - Breakdown
|
725V
|
|
Topology
|
Flyback
|
|
Voltage - Supply (Vcc/Vdd)
|
-
|
|
Duty Cycle
|
60%
|
|
Frequency - Switching
|
100kHz
|
|
Power (Watts)
|
35 W
|
|
Fault Protection
|
Current Limiting, Over Temperature, Over Voltage
|
|
Control Features
|
-
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Package / Case
|
16-PowerSOIC (0.350", 8.89mm Width), 15 Leads
|
|
Supplier Device Package
|
ESOP12
|
|
Mounting Type
|
Surface Mount
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Highly Integrated, Compact Footprint
• Incorporates flyback controller, 725 V / 900 V MOSFET, secondaryside sensing and synchronous rectification driver
• FluxLink™ integrated, HIPOT-isolated, feedback link
• Exceptional CV accuracy, independent of transformer design or
external components
• Excellent multi-output cross regulation with weighted SSR feedback
and synch FETs
EcoSmart™ – Energy Efficient
• <10 mW no-load at 230 VAC when supplied by transformer bias
winding
• Easily meets all global energy efficiency regulations
Advanced Protection / Safety Features
• Primary sensed output OVP
• Secondary sensed output overshoot clamp
• Secondary sensed output OCP to zero output voltage
• Hysteretic thermal shutdown
• Input voltage monitor with accurate brown-in/brown-out and
overvoltage protection
Full Safety and Regulatory Compliance
• 100% production HIPOT compliance testing equivalent to
4.8 kV AC for 1 second
• Reinforced insulation
• Isolation voltage 3,500 VAC for INN26xx series, 4,000 VAC
for INN2904
• UL1577 and TUV (EN60950) safety approved
• EN61000-4-8 (100 A/m) and EN61000-4-9 (1000 A/m) compliant
Green Package
• Halogen free and RoHS compliant
