Home ProductsElectrical Inductor4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm
4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm 4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm 4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

4.7mH 100KHz 2 Line SMD Common Mode Choke Filter 744220 WE-SL2 20KOhm

Product Details:
Place of Origin: China
Brand Name: FENGHUA
Certification: ROHS
Model Number: 0402 3.9NH 120NH 100NH 0603 1UH 2.2UH 3.3UH 4.7UH 10UH 0805 1UH 2.2UH 3.3UH 4.7UH 10UH
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Contact us
Packaging Details: Reel/Standard package
Delivery Time: 1-8days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs
Contact Now

Detail Information
Series: WE-SL2 Family-inductors: SMD Inductors
Subcategory: Inductors, Chokes & Coils Type: Filters Common Mode Chokes
Mounting Type: Surface Mount Package / Case: Horizontal, 4 PC Pad
Operating Temperature: -40°C ~ 125°C Core Material: FIXED INDUCTORS
Size: Size / Dimension 0.362" L X 0.236" W (9.20mm X 6.00mm*5.2mm)
High Light:

2 Line SMD Common Mode Choke

,

4.7mH 100KHz SMD Common Mode Choke

,

Common Mode Choke Filter 744220

Product Description

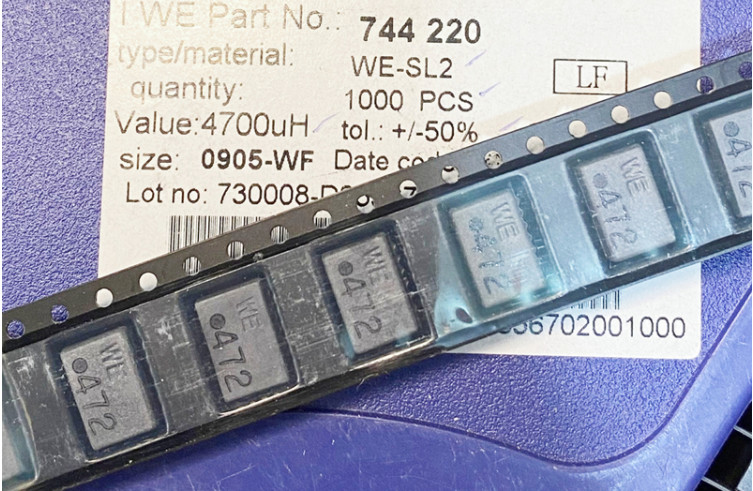

744220 WE-SL2 filters 4.7mH 100 kHz 2Line Common Mode Choke Surface Mount 20 kOhms 1MHz 500mA DCR 750mOhm



Part number 744220
Category
Filters
　
Common Mode Chokes
Mfr
Wurth Elektronik
Series
WE-SL2
Package
Tape & Reel (TR)
Part Status
Active
Filter Type
Signal Line
Number of Lines
2
Impedance @ Frequency
20 kOhms @ 1 MHz
Inductance @ Frequency
4.7 mH @ 100 kHz
Current Rating (Max)
500mA
DC Resistance (DCR) (Max)
750mOhm
Voltage Rating - DC
80V
Voltage Rating - AC
-
Operating Temperature
-40°C ~ 125°C
Ratings
-
Approval Agency
-
Features
-
Mounting Type
Surface Mount
Size / Dimension
0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max)
0.205" (5.20mm)
Package / Case
Horizontal, 4 PC Pad
