48 BBGA Module LTM4650 UModule Ics Chip Electronics Components
LTM4650 UModule
,UModule Ics Chip
,48 BBGA Module LTM4650
LTM4650IY#PBF LTM4650EY#PBF LTM4650AIY#PBF LTM4650AEY#PBF LTM4650EY LTM uModule Integrated circuits IC
Electronic components Module DC DC Converter Integrated circuits IC
LTM4650IY#PBF LTM4650EY#PBF LTM4650AIY#PBF LTM4650AEY#PBF LTM4650EY-1A#PBF
LTM4650EY-1B#PBF LTM4650IY-1A#PBF LTM4650IY-1B#PBF
Specification:Dual 25A or Single 50A DC/DC µModule Regulator
Category
|
Power Supplies - Board Mount
|
DC DC Converters
|
|
Mfr
|
Analog Devices Inc.
|
Series
|
µModule®
|
Package
|
Tray
|
Part Status
|
Active
|
Type
|
Non-Isolated PoL Module
|
Number of Outputs
|
2
|
Voltage - Input (Min)
|
4.5V
|
Voltage - Input (Max)
|
15V
|
Voltage - Output 1
|
0.6 ~ 1.8V
|
Voltage - Output 2
|
0.6 ~ 1.8V
|
Voltage - Output 3
|
-
|
Voltage - Output 4
|
-
|
Current - Output (Max)
|
25A, 25A
|
Applications
|
ITE (Commercial)
|
Features
|
OCP, OVP, SCP, UVLO
|
Operating Temperature
|
-40°C ~ 125°C
|
Efficiency
|
-
|
Mounting Type
|
Surface Mount
|
Package / Case
|
144-BBGA Module
|
Size / Dimension
|
0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm)
|
Supplier Device Package
|
144-BGA (16x16)
|
Control Features
|
Enable, Active High
|
Base Product Number
|
LTM4650
|
Application :
Processor, ASIC and FPGA Core Power
Telecom and Networking Equipment
Storage and ATCA Cards n Industrial Equipment
Features:
Dual 25A or Single 50A Output
Input Voltage Range: 4.5V to 15V
Output Voltage Range: 0.6V to 1.8V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Adjustable Switching Frequency
Frequency Synchronization
Overcurrent Foldback Protection
Multiphase Parallel Current Sharing with Multiple LTM4650s Up to 300A
Internal Temperature Monitor
Pin Compatible with the LTM4620 (Dual 13A, Single 26A) and LTM4630 (Dual 18A, Single 36A)
Selectable Burst Mode® Operation
Soft-Start/Voltage Tracking
Output Overvoltage Protection

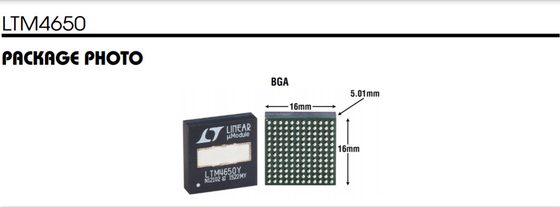

16mm × 16mm × 5.01mm BGA Package
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | ROHS3 Compliant |
Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
REACH Status | REACH Unaffected |
ECCN | EAR99 |
HTSUS | 8542.39.0001 |
