LTM8025 DC DC Converter IC Electronics Components Non Isolated PoL Module
LTM8025 DC DC Converter IC
,LTM8025 IC Electronics Components
,Non Isolated PoL Module
LTM8025IV#PBF LTM8025EV#PBF LT8025EY#PBF LTM8025EY#PBF LTM8025IY#PBF LTM8025MPV#PBF LTM8025MPY µModule Regulator ic
Electronic components Module DC-DC Converter Integrated circuits IC
µModule Regulator: LTM8025IV#PBF LTM8025EV#PBF LT8025EY#PBF LTM8025EY#PBF
LTM8025IY#PBF LTM8025MPV#PBF LTM8025MPY#PBF
Application :
Processor, ASIC and FPGA Core Power
Telecom and Networking Equipment
Storage and ATCA Cards n Industrial Equipment
Features:
Dual 25A or Single 50A Output
Input Voltage Range: 4.5V to 15V
Output Voltage Range: 0.6V to 1.8V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Adjustable Switching Frequency
Frequency Synchronization
Overcurrent Foldback Protection
Multiphase Parallel Current Sharing with Multiple LTM4650s Up to 300A
Internal Temperature Monitor
Pin Compatible with the LTM4620 (Dual 13A, Single 26A) and LTM4630 (Dual 18A, Single 36A)
Selectable Burst Mode® Operation
Soft-Start/Voltage Tracking
Output Overvoltage Protection

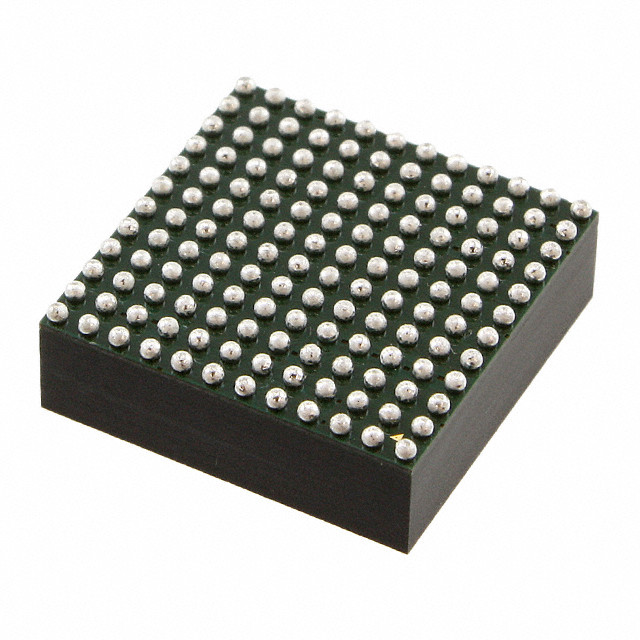

16mm × 16mm × 5.01mm BGA Package
More Parts number for choice:
| Part number | Package type |
| LTM8025IV#PBF | LGA |
| LTM8025EV#PBF | LGA |
| LT8025EY#PBF | BGA |
| LTM8025EY#PBF | BGA |
| LTM8025IY#PBF | BGA |
| LTM8025MPV#PBF | LGA |
| LTM8025MPY#PBF | BGA |
Specification:
|
Category
|
Power Supplies - Board Mount
|
|
DC DC Converters
|
|
|
Mfr
|
Analog Devices Inc.
|
|
Series
|
µModule®
|
|
Package
|
Tray
|
|
Part Status
|
Active
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
2
|
|
Voltage - Input (Min)
|
4.5V
|
|
Voltage - Input (Max)
|
15V
|
|
Voltage - Output 1
|
0.6 ~ 1.8V
|
|
Voltage - Output 2
|
0.6 ~ 1.8V
|
|
Voltage - Output 3
|
-
|
|
Voltage - Output 4
|
-
|
|
Current - Output (Max)
|
25A, 25A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
OCP, OVP, SCP, UVLO
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Efficiency
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
144-BBGA Module
|
|
Size / Dimension
|
0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm)
|
|
Supplier Device Package
|
BGA (16x16)
|
|
Control Features
|
Enable, Active High
|
|
Base Product Number
|
LTM8025
|
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
Related products maybe you are interesting:
Descriptions:
| Category |
Electronic components-Integrated circuits |
| Family | DC DC Converters |
| MFG | Analog Devices Inc. |
| Series | µModule |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 0.8-24V |
| Current - Output (Max) | 3A |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package | 48-BLGA Module |
| Size / Dimension | 0.35" L x 0.25" W x 0.13" H (9.0mm x 6.3mm x 3.3mm) |
| Base Product Number | LTM4650 |
IC chips LTM8025 is a 36VIN, 3A step-down µModule® (micromodule) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8025 supports an output voltage range of 0.8V to 24V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.
Application:
Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation
