100W Arduino Development Board NID100-05 NID100-12 NID100-15 NID100-24
Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Microchip Technology |
Certification: | ROHS |
Model Number: | ATWILC3000-MR110PB ATWILC3000-MR110UB |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10pieces |
Price: | Negotiated |
Packaging Details: | Standard package |
Delivery Time: | 5-14days |
Payment Terms: | T/T, Western Union,Paypal |
Supply Ability: | 500pcs/month |
Detail Information |
|||
Category: | RF/IF And RFID-RF Transceiver Modules And Modems | Details: | WiFi IEEE 802.11 B/g/n Link Controller Module With Integrated Bluetooth 5.0 |
---|---|---|---|
Family: | IEEE® 802.11 B/g/n Link Controller Module | Antenna Type: | Integrated, Trace |
Frequency: | 2.412GHz ~ 2.472GHz | Mounting Type: | Surface Mounting |
Data Rate: | 54Mbps | Power: | Output 18.7dBm |
Sensitivity: | -94dBm | Package / Case: | Module |
Size: | 21.72x14.73xmm | Soldering Composition: | ENIG |
High Light: | IEEE 802.11 B/G/N Link Controller Module,ATWILC3000 Link Controller Module,Bluetooth 5.0 Controller Module |
Product Description

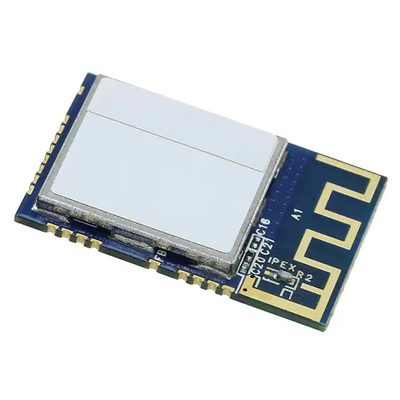

ATWILC3000 IEEE 802.11 b/g/n Link Controller Module with Integrated Bluetooth 5.0
ATWILC3000 is a single chip IEEE 802.11 b/g/n RF/Baseband/MAC link controller and Bluetooth 5. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with simple SPI/SDIO-to-Wi-Fi and UART-to-Bluetooth interfaces.
The ATWILC3000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.
The ATWILC3000 features fully integrated Power Amplifier, LNA, Switch and Power Management.
Implemented in low-power CMOS technology, the ATWILC3000 offers very low power consumption while simultaneously providing high performance and minimal bill of materials.
The ATWILC3000 utilizes highly optimized 802.11-Bluetooth coexistence protocols.
The only external clock sources needed for the ATWILC3000 is a high-speed crystal or oscillator and a 32.768 kHz clock for sleep operation.
The ATWILC3000 can be used in Linux, RTOS or Baremetal Environments.
The ATWILC3000 uses the same driver as the ATWILC1000.
Matching Accessories's Parametrics:
Bluetooth Standard | 5 |
Cloud Partner | FALSE |
External PA Control | No |
Family | Wi-Fi Link Controller |
Frequency Range | 2.412-2.472 MHz |
Interface | SPI, SDIO, UART |
Operating Temperature Min. | -40 |
Operating Temperature Max. | +85C |
Operating Voltage Min. | 2.5V |
Operating Voltage Max. | 4.2V |
Package | Surface Mount Module |
Pin Count | 37 |
Power Output | 18.5 dBm (802.11b 11Mbps) |
Rx Current Consumption | 84mA (802.11n MCS7) |
Tx Current Consumption | 253mA (802.11n MCS7) |
RF Module | TRUE |
RF Transceiver | TRUE |
Input Sensitivity | -90 (802.11g 6Mbps) |
Sleep Mode Current Consumption | 1.25uA |
Type | Wi-Fi Module |
Related products ATWILC1000 :
Overviews:
SmartConnect ATWILC1000 is an IEEE 802.11 b/g/n IoT link controller module.
The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with a simple SPI/SDIO-to-Wi-Fi interface.
The ATWILC1000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.
The ATWILC1000 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The only external clock source needed is a high-speed crystal or oscillator.
The ATWILC1000 can be used in Linux, RTOS or Baremetal Environments.
Features:
ATWILC1000 -IEEE® 802.11 b/g/n Link Controller Module :
IEEE 802.11 b/g/n (1 × 1)
Integrated Power Amplifier (PA) and Transmit/Receive (T/R) switch
Superior sensitivity and range via advanced PHY signal processing
Wi-Fi Direct®, station mode and Soft-AP support
Support for personal and enterprise IEEE 802.11 WEP, WPA and WPA2 security
On-chip memory management engine to reduce host load
SPI and SDIO host interfaces optimized for the Linux OS
Operating temperature range of −40°C to +85°C
Description:
Category
|
RF/IF and RFID
|
RF Transceiver Modules and Modems
|
|
Mfr
|
Microchip Technology
|
Series
|
-
|
Package
|
Tape & Reel (TR)
|
Part Status
|
Active
|
RF Family/Standard
|
WiFi
|
Protocol
|
802.11b/g/n
|
Modulation
|
CCK, DSSS, OFDM
|
Frequency
|
2.412GHz ~ 2.472GHz
|
Data Rate
|
54Mbps
|
Power - Output
|
18.7dBm
|
Sensitivity
|
-94dBm
|
Serial Interfaces
|
I²C, SDIO, SPI, UART
|
Antenna Type
|
Integrated, Trace
|
Utilized IC / Part
|
-
|
Memory Size
|
-
|
Voltage - Supply
|
1.8V ~ 3.6V
|
Current - Receiving
|
63mA
|
Current - Transmitting
|
-
|
Mounting Type
|
Surface Mount
|
Operating Temperature
|
-40°C ~ 85°C
|
Package / Case
|
Module
|
Base Product Number
|
ATWILC1000
|
Images:
The ATWILC1000 and ATWILC3000 are both available in a chip-level solution.Please feel free to contact us for more. sales@icship.com
