EPM7128AETC100-10N MAX7000A EPM7128 CPLD Complex Programmable Logic Device

EPM7128AETC100-10N MAX7000A Integrated Circuits (ICs) EPM7128 CPLDs (Complex Programmable Logic Devices)

EPM7128AETC100-10N MAX7000A Integrated Circuits (ICs) EPM7128 CPLDs (Complex Programmable Logic Devices)

IC CPLD 128MC 10NS 100TQFP

Specification:

The MAX 7000A architecture includes the following elements:

Logic array blocks (LABs)

Macrocells

Expander product terms (shareable and parallel)

Programmable interconnect array

I/O control blocks The MAX 7000A architecture includes four dedicated inputs that can be used as general-purpose inputs or as high-speed, global control signals (clock, clear, and two output enable signals) for each macrocell and I/O pin.

General Description:

MAX 7000A (including MAX 7000AE) devices are high-density, highperformance devices based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROMbased MAX 7000A devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. MAX 7000A devices in the -4, -5, -6, -7, and some -10 speed grades are compatible with the timing requirements for 33 MHz operation of the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification.

Features:

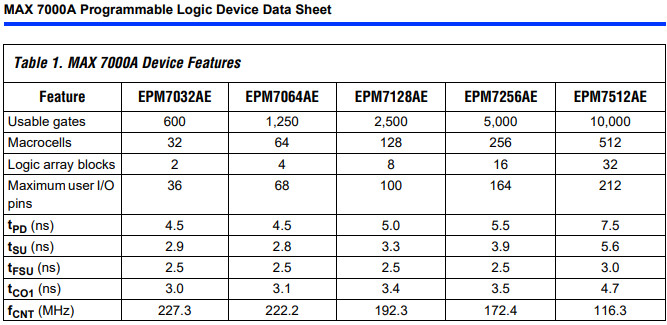

High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX®) architecture (see Table 1)

3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability – MAX 7000AE device in-system programmability (ISP) circuitry compliant with IEEE Std. 1532 – EPM7128A and EPM7256A device ISP circuitry compatible with IEEE Std. 1532

Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1

Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71

Enhanced ISP features – Enhanced ISP algorithm for faster programming (excluding EPM7128A and EPM7256A devices) – ISP_Done bit to ensure complete programming (excluding EPM7128A and EPM7256A devices) – Pull-up resistor on I/O pins during in-system programming

Pin-compatible with the popular 5.0-V MAX 7000S devices

High-density PLDs ranging from 600 to 10,000 usable gates

Extended temperature range.

More fuatures:

4.5-ns pin-to-pin logic delays with counter frequencies of up to 227.3 MHz

MultiVoltTM I/O interface enables device core to run at 3.3 V, while I/O pins are compatible with 5.0-V, 3.3-V, and 2.5-V logic levels

Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), ball-grid array (BGA), spacesaving FineLine BGATM, and plastic J-lead chip carrier (PLCC) packages .Supports hot-socketing in MAX 7000AE devices

Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance

PCI-compatible

Bus-friendly architecture, including programmable slew-rate control

Open-drain output option

Programmable macrocell registers with individual clear, preset, clock, and clock enable controls

Programmable power-up states for macrocell registers in MAX 7000AE devices

Programmable power-saving mode for 50% or greater power reduction in each macrocell

Configurable expander product-term distribution, allowing up to 32 product terms per macrocell

Programmable security bit for protection of proprietary designs

6 to 10 pin- or logic-driven output enable signals

Two global clock signals with optional inversion

Enhanced interconnect resources for improved routability

Fast input setup times provided by a dedicated path from I/O pin to macrocell registers

Programmable output slew-rate control

Programmable ground pins

Software design support and automatic place-and-route provided by Altera’s development systems for Windows-based PCs and Sun SPARCstation, and HP 9000 Series 700/800 workstations Additional design entry and simulation support provided by EDIF 2 0 0 and 3 0 0 netlist files, library of parameterized modules (LPM), Verilog HDL, VHDL, and other interfaces to popular EDA tools from manufacturers such as Cadence, Exemplar Logic, Mentor Graphics, OrCAD, Synopsys, Synplicity, and VeriBest Programming support with Altera’s Master Programming Unit (MPU), MasterBlasterTM serial/universal serial bus (USB) communications cable, ByteBlasterMVTM parallel port download cable, and BitBlasterTM serial download cable, as well as programming hardware from third-party manufacturers and any JamTM STAPL File (.jam), Jam Byte-Code File (.jbc), or Serial Vector Format File- (.svf) capable in-circuit tester.

MAX7000A Ordering information:

EPM7032AE

EPM7064AE

EPM7128AE

EPM7256AE

EPM7512AE
