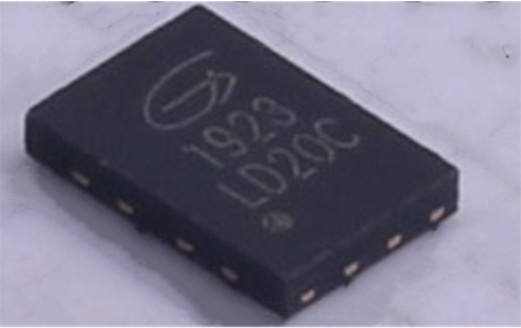

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C
GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C

Product Details:
Place of Origin: China
Brand Name: GigaDevice Semiconductor
Certification: ROHS
Model Number: GD25LD20CEIGR GD25LD10C
Payment & Shipping Terms:
Minimum Order Quantity: 1pieces
Price: Negotiated
Packaging Details: Standard package
Delivery Time: Subject to be final confirm
Payment Terms: T/T, Western Union
Contact Now

Detail Information
Series: GD SPI NOR Flash MCU Microcontroller IC Category: Electronic Components-Integrated Circuits
Details: GigaDevice SemiconductorMicrocontroller IC MCU NOR Flash Parallel NAND Flash Sensor Family: Microcontroller (MCU) IC
Connectivity: CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB Peripherals: DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Program Memory Type: FLASH Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
High Light:

GigaDevice GD SPI NOR Flash MCU

,

MCU Microcontroller IC

,

GD25LD20CEIGR

Product Description

GigaDevice GD SPI NOR Flash MCU Microcontroller IC Integrated circuits GD25LD20CEIGR GD25LD10C



GigaDevice GD SPI NOR Flash MCU Microcontroller IC Integrated circuits



3.0V
◆ Single Power Supply Voltage
- Voltage range: 2.7V~3.6V
◆ High Speed Clock Frequency
- Maximum 200MHz for fast read*
- Dual I/O Data transfer up to 332Mbit/s
- Quad I/O Data transfer up to 664Mbit/s
- DTR Quad I/O Data transfer up to 1600Mbit/s
- DTR Octal I/O Data transfer up to 3200Mbit/s
- Continuous read with 8/16/32/64-Byte wrap
◆ Flexible Memory Architecture
- Sector size: 4K Bytes
- Block size: 32/64K Bytes



1.8V

◆ Single Power Supply Voltage
- Voltage range: 1.65V~2.0V
◆ High Speed Clock Frequency
- Maximum 200MHz for fast read*
- Dual I/O Data transfer up to 332Mbit/s
- Quad I/O Data transfer up to 664Mbit/s
- QPI Data transfer up to 664Mbit/s
- DTR Quad I/O Data transfer up to 1600Mbit/s
- DTR Octal I/O Data transfer up to 3200Mbit/s
- Continuous read with 8/16/32/64-Byte wrap
◆ Flexible Memory Architecture
- Sector size: 4K Bytes
- Block size: 32/64K Bytes



1.65V~3.6V

◆ Single Power Supply Voltage
- Voltage range: 1.65V~3.6V
◆ High Speed Clock Frequency
- Maximum 104MHz for fast read*
- Dual I/O Data transfer up to 208Mbit/s
- Quad I/O Data transfer up to 416Mbit/s
- Continuous read with 8/16/32/64-Byte wrap
◆ Flexible Memory Architecture
- Sector size: 4K Bytes
- Block size: 32/64K Bytes



About GigaDevice

GigaDevice Semiconductor is a global leading fabless supplier who Committed to building a complete ecosystem with
three major product lines-Flash memory, MCU, and sensor-as the core driving force

GigaDevice can provide a wide range of solutions and services in the fields of industrial, automotive, computing, consumer electronics,

IoT, mobile, networking and communications.

GigaDevice is currently ranked No. 1 SPI NOR FLASH® supplier in China and No. 3 in the world with accumulated shipments nearly 16
billion since its inception. GigaDevice GD32 MCU is a leader in China's high performance 32-bit generalpurpose microcontroller market,

with more than 500 million units shipped, and over 360 part numbers from 28 family series in a variety of applications.

In addition, GigaDevice delivers touchscreen controller sensor and fingerprint sensor to world-renowned mobile makers around the globe.

It is currently one of the only two optical fingerprint sensor suppliers in China with mass production capability.



GD SPI NOR Flash Product List:

Part No. Density Voltage Oragnization I/O Bus Frequency (MHz) Package
GD25LD05C 512Kb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 50MHz(x1) 40MHz(x2) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LD10C 1Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 50MHz(x1) 40MHz(x2) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LQ20E 2Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LE20E 2Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LD20C 2Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 50MHz(x1) 40MHz(x2) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LQ40E 4Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LE40E 4Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LD40C 4Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 50MHz(x1) 40MHz(x2) SOP8 150mil USON8 1.5x1.5mm USON8 3x2mm
GD25LH40C 4Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4) USON8 3x2mm
GD25LE80E 8Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) USON8 3x2mm WLCSP (4-4 ball array)
GD25LF80E 8Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm
GD25LH80E 8Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) VSOP8 150mil USON8 3x2mm
GD25LQ80E 8Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm
GD25LD80C 8Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual Output 50MHz(x1) 40MHz(x2) SOP8 150mil SOP8 208mil USON8 1.5x1.5mm USON8 3x2mm
GD25LB16E 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm WSON8 6x5mm
GD25LE16E 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) USON8 3x2mm WLCSP (3-2-3 ball array)
GD25LF16E 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm
GD25LH16E 16Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm WSON8 6x5mm
GD25LQ16E 16Mb 1.65V-2.1V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm WSON8 6x5mm WLCSP (3-2-3 ball array)
GD25LB32E 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm USON8 4x4mm WSON8 6x5mm
GD25LE32E 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) USON8 3x2mm USON8 3x4mm USON8 4x4mm WLCSP (4-4 ball array)
GD25LF32E 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm USON8 4x4mm WSON8 6x5mm
GD25LH32E 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 208mil USON8 3x2mm USON8 3x4mm USON8 4x4mm WSON8 6x5mm
GD25LQ32E 32Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm USON8 4x4mm WSON8 6x5mm WLCSP (4-4 ball array)
GD25LB64E 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil VSOP8 208mil USON8 3x4mm USON8 4x4mm WSON8 6x5mm
GD25LE64E 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x4mm USON8 4x4mm WSON8 6x5mm WLCSP (4-4 ball array)
GD25LF64E 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) SOP8 150mil SOP8 208mil USON8 3x4mm USON8 4x4mm WSON8 6x5mm
GD25LQ64E 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil VSOP8 208mil USON8 3x4mm USON8 4x4mm WSON8 6x5mm WLCSP (4-4 ball array)
GD25LR64E 64Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4) SOP8 208mil WSON8 6x5mm
GD25LR128E 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 104MHz(x1, x2, x4) SOP8 208mil WSON8 6x5mm WSON8 8x6mm
GD25LE128E 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 208mil USON8 4x4mm WSON8 6x5mm WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array) WLCSP (4-4 ball array)
GD25LB128E 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 208mil SOP16 300mil USON8 4x4mm WSON8 6x5mm WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array)
GD25LF128E 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) SOP8 208mil USON8 4x4mm WSON8 6x5mm TFBGA24 8x6mm (5x5 ball array)
GD25LQ128E 128Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 208mil VSOP8 208mil SOP16 300mil USON8 4x4mm WSON8 6x5mm WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array) WLCSP (4-4 ball array)
GD25LE255E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) WSON8 6x5mm WLCSP (4-4 ball array)
GD25LF255E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) WSON8 6x5mm WLCSP (4-4 ball array)
GD25LQ255E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP16 300mil WSON8 6x5mm WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array) WLCSP (4-4 ball array)
GD25LB256E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 104MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array) WLCSP (4-4 ball array) WLCSP (3-2-3 ball array)
GD25LR256E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 104MHz(x1, x4) 60MHz(DTR) SOP16 300mil WSON8 6x5mm WSON8 8x6mm
GD25LT256E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 200MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array)
GD25LX256E 256Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Octal 166MHz(x1, x8) 200MHz(DTR) SOP16 300mil TFBGA24 8x6mm (5x5 ball array) WLCSP (4x6 ball array)
GD55LE511ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) WSON8 6x5mm WSON8 8x6mm
GD55LF511ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Dual / Quad 166MHz(x1, x2, x4) 104MHz(DTR) WSON8 6x5mm
GD25LB512ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 90MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array) WLCSP (3-2-3 ball array)
GD25LR512ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 104MHz(x1, x4) 60MHz(DTR) SOP16 300mil WSON8 8x6mm
GD25LT512ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 200MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array)
GD25LX512ME 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Octal 166MHz(x1, x8) 200MHz(DTR) SOP16 300mil TFBGA24 8x6mm (5x5 ball array) WLCSP (4x6 ball array)
GD55LT512WE 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 166MHz(DTR) SOP16 300mil TFBGA24 8x6mm (5x5 ball array)
GD55LX512WE 512Mb 1.65V-2.0V 4KB / 32KB / 64KB Single / Octal 166MHz(x1, x8) 166MHz(DTR) SOP16 300mil TFBGA24 8x6mm (5x5 ball array)
GD55LB01GE 1Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 90MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array)
GD55LT01GE 1Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 200MHz(DTR) SOP16 300mil WSON8 8x6mm TFBGA24 8x6mm (5x5 ball array)
GD55LX01GE 1Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Octal 166MHz(x1, x8) 200MHz(DTR) SOP16 300mil TFBGA24 8x6mm (5x5 ball array)
GD55LB02GE 2Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 90MHz(DTR) TFBGA24 8x6mm (5x5 ball array)
GD55LT02GE 2Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Quad 166MHz(x1, x4) 200MHz(DTR) TFBGA24 8x6mm (5x5 ball array)
GD55LX02GE 2Gb 1.65V-2.0V 4KB / 32KB / 64KB Single / Octal 166MHz(x1, x8) 200MHz(DTR) TFBGA24 8x6mm (5x5 ball array)
GD25D05C 512Kb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2) SOP8 150mil TSSOP8 173mil USON8 1.5x1.5mm USON8 3x2mm
GD25D10C 1Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2) SOP8 150mil TSSOP8 173mil USON8 1.5x1.5mm USON8 3x2mm
GD25Q20E 2Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm
GD25D20C 2Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2) SOP8 150mil SOP8 208mil USON8 1.5x1.5mm USON8 3x2mm
GD25Q40E 4Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 1.5x1.5mm USON8 3x2mm
GD25D40C 4Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual Output 100MHz(x1) 80MHz(x2) SOP8 150mil SOP8 208mil USON8 1.5x1.5mm USON8 3x2mm
GD25Q80E 8Mb 2.7V-3.6V 4KB / 32KB / 64KB Single / Dual / Quad 133MHz(x1, x2, x4) SOP8 150mil SOP8 208mil USON8 3x2mm USON8 3x4mm





GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 0



About GigaDevice GD32 MCU IC Product Family

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 1

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 2GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 3

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 4GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 5

GigaDevice GD SPI NOR Flash MCU Microcontroller IC GD25LD20CEIGR GD25LD10C 6

Environmental & Export Classifications



ATTRIBUTE DESCRIPTION
ROHS STATUS ROHS3 COMPLIANT
MOISTURE SENSITIVITY LEVEL (MSL) 3 (168 HOURS)
REACH STATUS REACH UNAFFECTED
ECCN 3A991A2
HTSUS 8542.31.0001
