ATSAML10D14A-MU SAM L10/L11 Family Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs with TrustZone Crypto

Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Category:
Electronic Components
Family:
SAM L10/L11 Family
Description:
MCU 8-bit 16-bit XMEGA AVR RISC 32KB Flash 1.8V/ 2.5V/3.3V 44-Pin Microcontrollers IC
Product Name:
Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs With TrustZone, Crypto, And Enhanced PTC
Package:
QFP
Base Part Number:
ATSAML10
Mounting Type:
Surface Mount
Operating Temperature:
-40°C To 150°C Operation
Introduction

Microchip ATSAML10D14A-MU SAM L10/L11 Family Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs with TrustZone Crypto



Features:
• Operating Conditions: 1.62V to 3.63V, -40ºC to +125ºC, DC to 32 MHz
• Core: 32 MHz (2.64 CoreMark/MHz and up to 31 DMIPS) Arm® Cortex®-M23 with:
– Single-cycle hardware multiplier
– Hardware divider
– Nested Vector Interrupt Controller (NVIC)
– Memory Protection Unit (MPU)
– Stack Limit Checking
– TrustZone® for ARMv8-M (optional)


• System
– Power-on Reset (POR) and programmable Brown-out Detection (BOD)
– 8-channel Direct Memory Access Controller (DMAC)
– 8-channel event system for Inter-peripheral Core-independent Operation
– CRC-32 generator


• Memory
– 16/32/64-KB Flash
– 4/8/16-KB SRAM
– 2-KB Data Flash Write-While-Read (WWR) section for non-volatile data storage
– 256 bytes TrustRAM with physical protection features


• Clock Management
– Flexible clock distribution optimized for low power
– 32.768 kHz crystal oscillator
– 32.768 kHz ultra low-power internal RC oscillator
– 0.4 to 32 MHz crystal oscillator
– 16/12/8/4 MHz low-power internal RC oscillator
– Ultra low-power digital Frequency-Locked Loop (DFLLULP)
– 32-96 MHz fractional digital Phase-Locked Loop (FDPLL96M)
– One frequency meter


• Low-Power and Power Management


– Active, Idle, Standby with partial or full SRAM retention and off sleep modes:
• Active mode (< 25 μA/MHz)
• Idle mode (< 10 μA/MHz) with 1.5 μs wake-up time
• Standby with Full SRAM Retention (0.5 μA) with 5.3 μs wake-up time
• Off mode (< 100 nA)
– Static and dynamic power gating architecture
– Sleepwalking peripherals
– Two performance levels

– Embedded Buck/LDO regulator with on-the-fly selection


• Security
– Up to four tamper pins for static and dynamic intrusion detections
– Data Flash
• Optimized for secure storage
• Address and data scrambling with user-defined key (optional)
• Rapid tamper erase on scrambling key and on one user-defined row
• Silent access for data read noise reduction
– TrustRAM
• Address and data scrambling with user-defined key
• Chip-level tamper detection on physical RAM to resist microprobing attacks
• Rapid tamper erase on scrambling key and RAM data
• Silent access for data read noise reduction
• Data remanence prevention
– Peripherals
• One True Random Generator (TRNG)
• AES-128, SHA-256, and GCM cryptography accelerators (optional)
• Secure pin multiplexing to isolate on dedicated I/O pins a secured communication with external
devices from the non-secure application (optional)
– TrustZone for flexible hardware isolation of memories and peripherals (optional)
• Up to six regions for the Flash
• Up to two regions for the Data Flash
• Up to two regions for the SRAM
• Individual security attribution for each peripheral, I/O, external interrupt line, and Event System
Channel
– Secure Boot with SHA-based authentication (optional)
– Up to three debug access levels
– Up to three Chip Erase commands to erase part of or the entire embedded memories
– Unique 128-bit serial number
– SAM L11 Securely Key Provisioned (KPH) (optional)
• Key Provisioning using Root of Trust flow
• Security Software Framework using Kinibi-M™ Software Development Kit (SDK)
• Advanced Analog and Touch
– One 12-bit 1 Msps Analog-to-Digital Converter (ADC) with up to 10 channels
– Two Analog Comparators (AC) with window compare function
– One 10-bit 350 kSPS Digital-to-Analog Converter (DAC) with external and internal outputs
– Three Operational Amplifiers (OPAMP)
– One enhanced Peripheral Touch Controller (PTC):
• Up to 20 self-capacitance channels
• Up to 100 (10x10) mutual-capacitance channels
• Low-power, high-sensitivity, environmentally robust capacitive touch buttons, sliders, and wheels
• Hardware noise filtering and noise signal desynchronization for high conducted immunity
• Driven Shield Plus for better noise immunity and moisture tolerance
• Parallel Acquisition through Polarity control
• Supports wake-up on touch from Standby Sleep mode
• Communication Interfaces
– Up to three Serial Communication Interfaces (SERCOM) that can operate as:
• USART with full-duplex and single-wire half-duplex configuration



• I2C up to 3.4 Mbit/s (High-Speed mode) on one instance and up to 1 Mbit/s (Fast-mode Plus) on the
second instance
• Serial Peripheral Interface (SPI)
• ISO7816 on one instance (Available on 32-pin packages only)
• RS-485 on one instance (Available on 32-pin packages only)
• LIN Slave on one instance (Available on 32-pin packages only)
• Timers/Output Compare/Input Capture
– Three 16-bit Timers/Counters (TC), each configurable as:
• One 16-bit TC with two compare/capture channels
• One 8-bit TC with two compare/capture channels
• One 32-bit TC with two compare/capture channels, by using two TCs
– 32-bit Real-Time Counter (RTC) with clock/calendar functions
– Watchdog Timer (WDT) with Window mode
• Input/Output (I/O)
– Up to 25 programmable I/O lines
– Eight external interrupts (EIC)
– One non-maskable interrupt (NMI)
– One Configurable Custom Logic (CCL) that supports:
• Combinatorial logic functions, such as AND, NAND, OR, and NOR
• Sequential logic functions, such as Flip-Flop and Latches
• Qualification and Class-B Support
– AEC-Q100 Grade 1 (-40ºC to +125ºC)
– Class-B safety library, IEC 60730 (future)
• Debugger Development Support
– Two-pin Serial Wire Debug (SWD) programming and debugging interface



Package :

ATSAML10D14A-MU SAM L10/L11 Family Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs with TrustZone Crypto

About Microchip Technology

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona,
Microchip offers outstanding technical support along with dependable delivery and quality.



Product Categories

Computer Equipment
Discrete Semiconductor Products
Memory Cards, Modules
Power Supplies - Board Mount
Relays
Capacitors
Crystals, Oscillators, Resonators
Integrated Circuits (ICs)
Networking Solutions
Power Supplies - External/Internal (Off-Board)
Sensors, Transducers
Circuit Protection
Development Boards, Kits, Programmers
Kits
Optoelectronics
RF/IF and RFID
Test and Measurement



Similar part number for available:

Mfr Part # Description Device Package
PIC32MX130F064BT-I/ML IC MCU 32BIT 64KB FLASH 28QFN 28-QFN (6x6)
PIC32MX150F128DT-I/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX250F128DT-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX254F128DT-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX254F128BT-I/SO IC MCU 32BIT 128KB FLASH 28SOIC 28-SOIC
PIC32MX250F128DT-I/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX254F128BT-I/MM IC MCU 32BIT 128KB FLASH 28QFN 28-QFN-S (6x6)
PIC32MX120F032DT-I/PT IC MCU 32BIT 32KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX130F064DT-50I/PT IC MCU 32BIT 64KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX254F128DT-V/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX154F128DT-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX174F256DT-V/ML IC MCU 32BIT 256KB FLASH 44QFN 44-QFN (8x8)
PIC32MX150F128DT-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX530F128HT-50I/MR IC MCU 32BIT 128KB FLASH 64QFN 64-QFN (9x9)
PIC32MX274F256DT-V/PT IC MCU 32BIT 256KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX174F256DT-V/PT IC MCU 32BIT 256KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX274F256BT-V/MM IC MCU 32BIT 256KB FLASH 28QFN 28-QFN-S (6x6)
PIC32MX154F128DT-I/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX174F256DT-I/PT IC MCU 32BIT 256KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX254F128DT-I/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX254F128BT-V/MM IC MCU 32BIT 128KB FLASH 28QFN 28-QFN-S (6x6)
PIC32MX154F128DT-V/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX274F256DT-I/ML IC MCU 32BIT 256KB FLASH 44QFN 44-QFN (8x8)
PIC32MX254F128DT-V/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX174F256DT-I/ML IC MCU 32BIT 256KB FLASH 44QFN 44-QFN (8x8)
PIC32MX230F064B-I/SS IC MCU 32BIT 64KB FLASH 28SSOP 28-SSOP
PIC32MX130F064B-I/SO IC MCU 32BIT 64KB FLASH 28SOIC 28-SOIC
PIC32MX440F128H-80V/MR IC MCU 32BIT 128KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX764F128H-I/MR IC MCU 32BIT 128KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX320F064H-80V/MR IC MCU 32BIT 64KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX664F064H-I/MR IC MCU 32BIT 64KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX110F016B-I/SP IC MCU 32BIT 16KB FLASH 28SPDIP 28-SPDIP
PIC32MX120F032B-I/ML IC MCU 32BIT 32KB FLASH 28QFN 28-QFN (6x6)
PIC32MX154F128DT-V/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX150F128D-I/ML IC MCU 32BIT 128KB FLASH 44QFN 44-QFN (8x8)
PIC32MX150F128B-I/ML IC MCU 32BIT 128KB FLASH 28QFN 28-QFN (6x6)
PIC32MX420F032H-40V/MR IC MCU 32BIT 32KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX130F064B-I/SP IC MCU 32BIT 64KB FLASH 28SPDIP 28-SPDIP
PIC32MX320F032H-40V/PT IC MCU 32BIT 32KB FLASH 64TQFP 64-TQFP (10x10)
PIC32MX575F256L-80V/BG IC MCU 32BIT 256KB FLSH 121TFBGA 121-TFBGA (10x10)
PIC32MX230F064B-I/ML IC MCU 32BIT 64KB FLASH 28QFN 28-QFN (6x6)
PIC32MX130F064D-I/ML IC MCU 32BIT 64KB FLASH 44QFN 44-QFN (8x8)
PIC32MX210F016D-I/PT IC MCU 32BIT 16KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX675F256L-80V/BG IC MCU 32BIT 256KB FLSH 121TFBGA 121-TFBGA (10x10)
PIC32MX210F016B-I/SP IC MCU 32BIT 16KB FLASH 28SPDIP 28-SPDIP
PIC32MX664F128H-I/MR IC MCU 32BIT 128KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX320F064H-80I/PT IC MCU 32BIT 64KB FLASH 64TQFP 64-TQFP (10x10)
PIC32MX564F064L-I/PT IC MCU 32BIT 64KB FLASH 100TQFP 100-TQFP (12x12)
PIC32MX420F032H-40V/PT IC MCU 32BIT 32KB FLASH 64TQFP 64-TQFP (10x10)
PIC32MX220F032B-I/SO IC MCU 32BIT 32KB FLASH 28SOIC 28-SOIC
PIC32MX340F512H-80I/MR IC MCU 32BIT 512KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX220F032D-I/PT IC MCU 32BIT 32KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX230F064D-I/PT IC MCU 32BIT 64KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX230F064D-I/ML IC MCU 32BIT 64KB FLASH 44QFN 44-QFN (8x8)
PIC32MX250F128D-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX220F032B-I/SS IC MCU 32BIT 32KB FLASH 28SSOP 28-SSOP
PIC32MX274F256BT-I/SO IC MCU 32BIT 256KB FLASH 28SOIC 28-SOIC
PIC32MX274F256DT-V/ML IC MCU 32BIT 256KB FLASH 44QFN 44-QFN (8x8)
PIC32MX130F064D-I/PT IC MCU 32BIT 64KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX220F032D-I/ML IC MCU 32BIT 32KB FLASH 44QFN 44-QFN (8x8)
PIC32MX530F128H-I/PT IC MCU 32BIT 128KB FLASH 64TQFP 64-TQFP (10x10)
PIC32MX154F128B-V/SO IC MCU 32BIT 128KB FLASH 28SOIC 28-SOIC
PIC32MX174F256D-V/PT IC MCU 32BIT 256KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX154F128D-I/ML IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX254F128D-I/PT IC MCU 32BIT 128KB FLASH 44TQFP 44-TQFP (10x10)
PIC32MX270F256B-V/ML IC MCU 32BIT 256KB FLASH 28QFN 28-QFN (6x6)
PIC32MX154F128BT-I/MM IC MCU 32BIT 128KB FLASH 28QFN 28-QFN-S (6x6)
PIC32MX440F256H-80I/MR IC MCU 32BIT 256KB FLASH 64VQFN 64-VQFN (9x9)
PIC32MX130F064B-V/ML IC MCU 32BIT 64KB FLASH 28QFN 28-QFN (6x6)
PIC32MX230F256B-I/SS IC MCU 32BIT 256KB FLASH 28SSOP 28-SSOP
PIC32MX174F256BT-I/SO IC MCU 32BIT 256KB FLASH 28SOIC 28-SOIC



ATSAML10D14A-MU SAM L10/L11 Family Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs with TrustZone Crypto

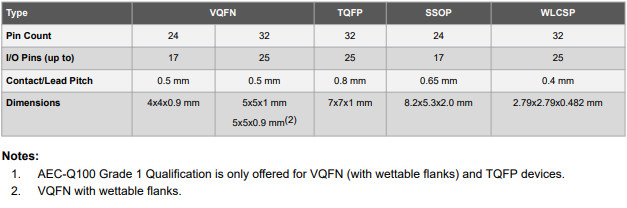

ATSAML10D14A-MU SAM L10/L11 Family Microchip IC Ultra Low-Power 32-bit Cortex-M23 MCUs with TrustZone Crypto


Send RFQ
Stock:
MOQ:
1pieces
