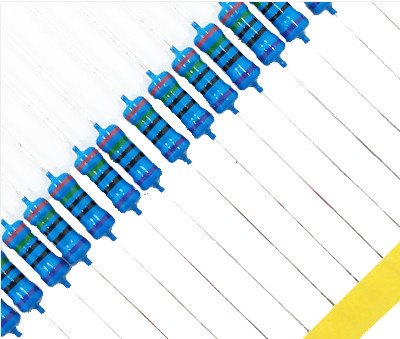

Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ

Category:
Electronic Resistor
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Product Name:
CARBON FILM FIXED RESISTORS
Applications:
Consumer Electronics Automotive Electronics LED Lighting
Category:
Passive Components-Resistors
Family:
CF RD Series Leaded Resistors
Operating Temperature:
-55℃ ~ +155℃
Style:
CF1/8W (1/6W) CF1/4W CF1/4WS CF1/2W CF1/2WS CF1W CF1WS CF2W CF2WS CF3W CF3WS
Mounting Type:
Through Hole
Tolerance:
K : ±10% J : ±5% G : ±2% F :±1%
Resistance Range:
10Ω ~ 2MΩ For Choice
Dimensions:
DIP
High Light:

CF RD Leaded Resistor

,

CF1/4W-T52-100RJ

,

Carbon Film Fixed Resistor

Introduction

CARBON FILM FIXED RESISTORS CF RD Series leaded resistors CF1/4W-T52-100RJ 100R 0.1% 25PPM



CARBON FILM FIXED RESISTORS CF RD Series leaded resistors CF1/4W-T52-100RJ 100R



Style :CF1/8W (1/6W) CF1/4W CF1/4WS CF1/2W CF1/2WS CF1W CF1WS CF2W CF2WS CF3W CF3WS

Tolerlance : K : ±10% J : ±5% G : ±2% F :±1%



Characteristic Performance

Item Performance
Operating Temp. Range -55℃ ~ +155℃
Temperature Coefficient T.C.R. ±450
(PCM/℃)
-700
(PCM/℃)
-1,000
(PCM/℃)
-1,300
(PCM/℃)
Type
1/8W (1/6W) & 1/4WS Under 47KΩ 51K~100KΩ 110K~330KΩ Over 360KΩ
1/4W & Over Under 100KΩ 110K~1MΩ 1.1M~2.2MΩ Over 2.4MΩ
Short Time Overload Within ±(1%+0.05Ω), no evidence of mechanical damage.
Insulation Resistance 104MΩ or more
Dielectric Withstanding Voltage No evidence of flashover mechanical damage, arcing or insulation breakdown.
Pulse Overload Within ±(0.75%+0.05Ω)
Terminal Strength No evidence of mechanical damage.
Resistance to Soldering Heat Within ±(0.5%+0.05Ω), no evidence of mechanical damage.
Solderability Covered with new solder by 95% at least.
Resistance to Solvent No deterioration of protective coating and markings.
Temperature Cycle Within ±(1%+0.05Ω), no evidence of mechanical damage.
Load Life in Humidity <100KΩ:±3%
≧100KΩ:±5%
Load Life <100KΩ:±(2%+0.05Ω)
≧100KΩ:±3%



Features:



  • Formed from the crystallization of carbon on ceramic rods, under a high temp. of 1000, making it highly stable.

  • Large range of W value.

  • Widely used as standard parts in consumer electronic appliances.

  • Automated mass production, low price.



Derating Curve

Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ



Structure & Materials

Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ



No. Item Material
1 Lead Wire Soldered or tinned annealed copper wire.
2 Connection The lead wire, which is plated with solder, shall be mounted to the caps by welding process.
3 Terminal Tinned iron cap.
4 Ceramic Core High alumina ceramic is used.
5 Resistance Element The resistor element shall consists of metal film.
6 Insulation Coating Epoxy resin is used.
7 Indication Color code.



Dimensions

Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ

Style Dimensions (mm) Max.
Working V.
Max.
Overload V.
Resistance Range
L D d H (Min.)
CF 1/8W (1/6W) 3.20 ± 0.20 1.80 ± 0.20 0.40 ± 0.05 28.00 ± 3.00 250V 400V 2.2Ω ~ 2.2MΩ
CF 1/4WS 3.20 ± 0.20 1.80 ± 0.20 0.40 ± 0.05 28.00 ± 3.00 250V 400V 2.2Ω ~ 2.2MΩ
CF 1/4W 6.50 ± 0.50 2.30 ± 0.30 0.50 ± 0.05 28.00 ± 3.00 300V 600V 2.2Ω ~ 4.7MΩ
CF 1/2WS 6.50 ± 0.50 2.30 ± 0.30 0.50 ± 0.05 28.00 ± 3.00 300V 600V 2.2Ω ~ 4.7MΩ
CF 1/2W 9.00 ± 1.00 3.20 ± 0.50 0.60 ± 0.10 28.00 ± 3.00 350V 700V 2.2Ω ~ 5.1MΩ
CF 1WS 9.00 ± 1.00 3.20 ± 0.50 0.60 ± 0.10 28.00 ± 3.00 350V 700V 2.2Ω ~ 5.1MΩ
CF 1W 12.00 ± 1.00 4.50 ± 0.50 0.65 ± 0.10 32.00 ± 3.00 500V 1000V 2.2Ω ~ 5.1MΩ
CF 2WS 12.00 ± 1.00 4.50 ± 0.50 0.65 ± 0.10 32.00 ± 3.00 500V 1000V 2.2Ω ~ 5.1MΩ
CF 2W 15.50 ± 1.00 5.00 ± 1.00 0.70 ± 0.10 35.00 ± 3.00 750V 1500V 2.2Ω ~ 5.1MΩ
CF 3WS 15.50 ± 1.00 5.00 ± 1.00 0.70 ± 0.10 35.00 ± 3.00 750V 1500V 2.2Ω ~ 5.1MΩ
CF 3W 17.50 ± 1.00 16.50 ± 1.00 0.70 ± 0.10 35.00 ± 3.00 750V 1500V 2.2Ω ~ 5.1MΩ

Note: Special resistance range min. 0.1Ω, max. 10MΩ (±1%, min. 0.22Ω, max. 220KΩ), but character is not guaranteed.



How to Order



Ex.: CF1/4W-T52-100RJ

CF 1/4W T52 100R J
Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ   Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ   Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ Carbon Film Fixed Resistor CF RD Leaded Resistor CF1/4W-T52-100RJ
Product Style (Type) Rated Power (Watts)   Form Type   Resistance Value Resistance Tolerance



CF

or
RD




Normal Small
1/8W 1/4WS
1/4W 1/2WS
1/2W 1WS
1W 2WS
2W 3WS
3W

B : Bulk
Txx : Taping XXmm
PU : Horizontal
PF : Vertical







(R = Ω)

E-12 Series
E-24 Series
E-48 Series
E-96 Series


K : ±10%
J : ±5%
G : ±2%
F : ±1%
  (Special)
