Home > products > Electrical Inductor > 74439370082 Wurth Elektronik Electrical Inductor 8.2UH 13A 6.5MOHM

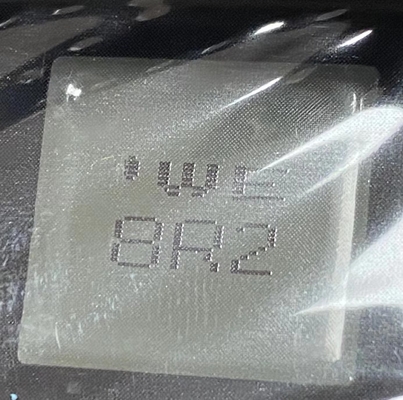

74439370082 Wurth Elektronik Electrical Inductor 8.2UH 13A 6.5MOHM

Category:
Electrical Inductor
Price:
Contact us
Payment Method:
T/T, Western Union
Specifications
Description:
8.2 µH Shielded Wirewound Inductor 13 A 6.5mOhm Nonstandard
Type:
Wirewound
Family-inductors:
FIXED IND 8.2UH 13A 6.5MOHM SMD
Subcategory:
Inductors, Chokes & Coils
Shielding:
Shielded
Test Frequency:
100 KHz
Inductance:
8.2uH
Typical Applications:
High Operating Temperature Environments • DC/DC Converters • Output Chokes • EMI Fi Lters
Dismensions:
0.394*0.646" L X 0.606" W (16.40mm X 15.40mm)
DC Resistance (DCR):
6.5mOhm
Material - Core:
Metal Composite
High Light:

Wurth Elektronik Electrical Inductor

,

74439370082 Electrical Inductor

,

Electrical Inductor 8.2UH 13A

Introduction

Nonstandard WE-XHMI Series Fixed Inductors

74439370082 Wurth Elektronik Electrical Inductor 8.2UH 13A 6.5MOHM SMD WE-XHMI SMT Power Inductor



Specifications:

Part number 74439370082
Category
Inductors, Coils, Chokes

Fixed Inductors
Mfr
Würth Elektronik
Series
WE-XHMI
Package
Tape & Reel (TR)
Part Status
Active
Type
Wirewound
Material - Core
Metal Composite
Inductance
 8.2µH
Tolerance
±20%
Current Rating (Amps)
13 A
Current - Saturation (Isat)
44A
Shielding
Shielded
DC Resistance (DCR)
6.5mOhm
Q @ Freq
-
Frequency - Self Resonant
10MHz
Ratings
-
Operating Temperature
-40°C ~ 125°C
Inductance Frequency - Test
100 kHz
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.646" L x 0.606" W (16.40mm x 15.40mm)
Height - Seated (Max)
0.394" (10.00mm)



About Würth Elektronik



Würth Elektronik eiSos GmbH & Co. KG is a manufacturer of electronic and electromechanical components for the electronics industry. Production sites in Europe, Asia and North America supply a growing number of customers worldwide. The product program encompasses EMC components, inductors, transformers, HF components, varistors, capacitors, power modules, LEDs, plug connectors, power supply elements, wireless power coils, switches, connection technology and fuse holders. Würth Elektronik eiSos GmbH & Co. KG, together with its specialized affiliated companies, form the Würth Elektronik eiSos Group.

Würth Elektronik eiSos GmbH & Co. KG (Focus: standard components), Würth Elektronik iBE GmbH (Focus: customized passive components for the automotive industry), Würth Elektronik Midcom Inc. (Focus: transformers and custom magnetics), Würth Elektronik Stelvio Kontek S.p.A. (Focus: customized plug connectors), AMBER wireless GmbH (Focus: wireless data transmission solutions) and IQD Frequency Products Ltd (Focus: frequency-control components) form the Würth Elektronik eiSos Group.
