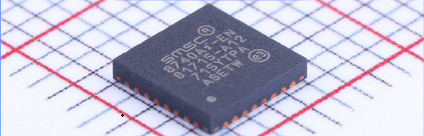

LAN8740AI-EN Transceiver Full Ethernet IC 32-SQFN Integrated Circuits LAN8740 Integrated circuits
Transceiver Full Ethernet IC
,LAN8740AI-EN
,Integrated Circuits LAN8740A
LAN8740AI-EN Transceiver Full Ethernet IC 32-SQFN Integrated Circuits LAN8740A
Interface - Drivers, Receivers, Transceivers IC
LAN8740A/LAN8740Ai are the latest generation of low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) and Wake-On-LAN functionality, which provide system sleep modes for improved power savings. The LAN8740A/LAN8740Ai feature deterministic loop back delay, assuring real-time system performance as well as cable diagnostics which reduce network installation costs. These devices are available in both commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges. The LAN8740A/LAN8740Ai are well-suited for Consumer, Embedded and Industrial applications. Additionally, these devices support auto-negotiation, auto-polarity correction, HP Auto-MDIX† and are compliant with IEEE 802.3 and 802.3u standards.
Features:
- Single-Chip Ethernet PHY
- Flexible power management architecture
- LVCMOS variable I/O voltage range +1.6V to +3.6V
- Integrated 1.2V regulator with disable feature
- Energy Efficient Ethernet (IEEE 802.3az)
- Cable diagnostics
- Deterministic latency
- Uses a low-cost 25MHz crystal for RMII mode to drive 50MHz output
- Wake-On-LAN
- HP Auto-MDIX support
- Supports commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges
- 32-pin, 5x5mm SQFN, RoHS-compliant packages
- Set-top Boxes
- DVRs/PVRs
- Digital TVs/iPTVs
- Printers
- IP and Video Phones
- Industrial Networks
- Embedded/Telecom
- Test/Measurement Instrumentation
- Wireless Access Points
- Power over Ethernet (PoE)
Specification:
|
Category
|
Interface - Drivers, Receivers, Transceivers
|
|
Mfr
|
Microchip Technology
|
|
Series
|
flexPWR™
|
|
Part Status
|
Active
|
|
Type
|
Transceiver
|
|
Protocol
|
Ethernet
|
|
Number of Drivers/Receivers
|
1/1
|
|
Duplex
|
Full
|
|
Data Rate
|
100Mbps
|
|
Voltage - Supply
|
1.8V ~ 3.3V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
32-VFQFN Exposed Pad
|
|
Supplier Device Package
|
32-SQFN (5x5)
|
|
Base Product Number
|
LAN8740
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
