F28M35E20B C2000 Real-Time Microcontroller IC Texas Instruments MCU And Processor

Product Details:
Place of Origin: Malaysia
Brand Name: Texas Instruments -TI
Certification: ROHS
Model Number: F28M35E20B
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiated
Packaging Details: REEL/TRAY
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS

Detail Information

Category: Integrated Circuits(IC) Description: C2000™ Dual Core 32-bit MCU With 120 MIPS, 512 KB Flash IC
Details: IC MCU 32BIT 256KB FLASH 144TQFP Serise: Microcontroller IC (MCU) And Processor
Type: General Purpose Mounting Type: Surface Mount
Base Part Number: F28M35 Temperature: -40°C ~ 100°C (TC)
High Light:

F28M35E20B Microcontroller IC

,

C2000 Real Time Microcontroller IC

Product Description

F28M35E20B C2000 Real-time microcontroller IC Texas Instruments MCU and processor



Description:

The real-time control subsystem is based on TI’s industry-leading proprietary 32-bit C28x floating-point CPU and features the most flexible and high-precision control peripherals, including ePWMs with fault protection, and encoders and captures—all as implemented by TI’s TMS320C2000™ Entry performance MCUs and Premium performance MCUs. In addition, the C28-CPU has been enhanced with the addition of the VCU instruction accelerator that implements efficient Viterbi, Complex Arithmetic, 16-bit FFTs, and CRC algorithms.

The Concerto family is a multicore system-on-chip microcontroller unit (MCU) with independent communication and real-time control subsystems. The F28M35x family of devices is the first series in the Concerto family.

The communications subsystem is based on the industry-standard 32-bit Arm Cortex-M3 CPU and features a wide variety of communication peripherals, including Ethernet 1588, USB OTG with PHY, Controller Area Network (CAN), UART, SSI, I2C, and an external interface.

A high-speed analog subsystem and supplementary RAM memory is shared, along with on-chip voltage regulation and redundant clocking circuitry. Safety considerations also include Error Correction Code (ECC), parity, and code secure memory, as well as documentation to assist with system-level industrial safety certification.



Microcontroller IC (MCU) and processor Specification:

Category Electronic components-Integrated circuits
Family Microcontroller IC (MCU) and processor
Series C2000 Real-time microcontroller IC
Manufacturer Texas Instruments (TI)
Type MCU Ics
CPU C28x, Cortex-M3
Frequency (MHz) 60
Flash memory (KB) 512
RAM (KB) 72
ADC resolution 12-bit
Total processing (MIPS) 120
UART 6
CAN (#) 2
Sigma-delta filter 0
PWM (Ch) 24
Mounting Type Surface Mount
EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542.31.00.01



Features:



Master Subsystem — Arm Cortex-M3
Up to 100 MHz
Embedded memory
Up to 512KB of flash (ECC)
Up to 32KB of RAM (ECC or parity)
Up to 64KB of shared RAM
2KB of IPC Message RAM
Five Universal Asynchronous Receiver/Transmitters (UARTs)
Four Synchronous Serial Interfaces (SSIs) and a Serial Peripheral Interface (SPI)
Two Inter-integrated Circuits (I2Cs)
Universal Serial Bus On-the-Go (USB-OTG) + PHY
10/100 ENET 1588 MII
Two Controller Area Network, D_CAN, modules (pin-bootable)
32-channel Micro Direct Memory Access (µDMA)
Dual security zones (128-bit password per zone)
External Peripheral Interface (EPI)
Micro Cyclic Redundancy Check (µCRC) module
Four general-purpose timers
Two watchdog timer modules
Three external interrupts
Endianness: little endian
Clocking
On-chip crystal oscillator and external clock input
Dynamic Phase-Locked Loop (PLL) ratio changes supported
1.2-V digital, 1.8-V analog, 3.3-V I/O design
Interprocessor Communications (IPC)
32 handshaking channels
Four channels generate IPC interrupts
Can be used to coordinate transfer of data through IPC Message RAMs
Up to 74 individually programmable, multiplexed General-Purpose Input/Output (GPIO) pins
Glitch-free I/Os
Control Subsystem — TMS320C28x 32-bit CPU
Up to 150 MHz
C28x core hardware built-in self-test
Embedded memory
Up to 512KB of flash (ECC)
Up to 36KB of RAM (ECC or parity)
Up to 64KB of shared RAM
2KB of IPC Message RAM
IEEE-754 single-precision Floating-Point Unit (FPU)
Viterbi, Complex Math, CRC Unit (VCU)
Serial Communications Interface (SCI)
SPI
I2C
6-channel Direct Memory Access (DMA)
Nine Enhanced Pulse Width Modulator (ePWM) modules
18 outputs (16 high-resolution)
Six 32-bit Enhanced Capture (eCAP) modules
Three 32-bit Enhanced Quadrature Encoder Pulse (eQEP) modules
Multichannel Buffered Serial Port (McBSP)
EPI
One security zone (128-bit password)
Three 32-bit timers
Endianness: little endian
Analog Subsystem
Dual 12-bit Analog-to-Digital Converters (ADCs)
Up to 2.88 MSPS
Up to 20 channels
Four Sample-and-Hold (S/H) circuits
Up to six comparators with 10-bit Digital-to-Analog Converter (DAC)
Package
144-Pin RFP PowerPAD™ Thermally Enhanced Thin Quad Flatpack (HTQFP)


Temperature options:
T: –40°C to 105°C Junction
S: –40°C to 125°C Junction
Q: –40°C to 125°C Free-Air (AEC Q100 qualification for automotive applications)



F28M35x Concerto™ MCUs Silicon Errata Silicon Revisions E, B, A, 0:

Introduction

This document describes the silicon updates to the functional specifications for the F28M35x microcontrollers (MCUs).

The updates are applicable to: • 144-pin PowerPAD™ Thermally Enhanced Thin Quad Flatpack, RFP Suffix 2 Device and Development Support Tool Nomenclature To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all Concerto MCU devices and support tools. Each Concerto MCU commercial family member has one of three prefixes: x, p, or no prefix (for example, xF28M35H52C1RFPT). Texas Instruments recommends two of three possible prefix designators for its support tools: TMDX and TMDS. These prefixes represent evolutionary stages of product development from engineering prototypes (with prefix x for devices and TMDX for tools) through fully qualified production devices and tools (with no prefix for devices and TMDS for tools). xF28M35... Experimental device that is not necessarily representative of the final device's electrical specifications pF28M35... Final silicon die that conforms to the device's electrical specifications but has not completed quality and reliability verification F28M35... Fully qualified production device Support tool development evolutionary flow: TMDX Development-support product that has not yet completed Texas Instruments internal qualification testing TMDS Fully qualified development-support product Devices with prefix x or p and TMDX development-support tools are shipped against the following disclaimer: "Developmental product is intended for internal evaluation purposes." Production devices and TMDS development-support tools have been characterized fully, and the quality and reliability of the device have been demonstrated fully. TI's standard warranty applies. Predictions show that prototype devices with prefix of x or p have a greater failure rate than the standard production devices. Texas Instruments recommends that these devices not be used in any production system because their expected end-use failure rate still is undefined. Only qualified production devices are to be used. TI device nomenclature also includes a suffix with the device family name. This suffix indicates the package type (for example, RFP) and temperature range (for example, T).





Microcontroller IC (MCU) and processor part number:

Category Base part number TI Part number
C2000 Real-time microcontroller IC F28M35E20B F28M35E20B1RFPS
C2000 Real-time microcontroller IC F28M35H22C F28M35H22C1RFPS
C2000 Real-time microcontroller IC F28M35H22C F28M35H22C1RFPT
C2000 Real-time microcontroller IC F28M35H52C F28M35H52C1RFPS
C2000 Real-time microcontroller IC F28M35H52C F28M35H52C1RFPT
C2000 Real-time microcontroller IC F28M35H52C-Q1 F28M35H52C1RFPQ
C2000 Real-time microcontroller IC F28M35M22C F28M35M22C1RFPS
C2000 Real-time microcontroller IC F28M35M22C F28M35M22C1RFPT
C2000 Real-time microcontroller IC F28M35M52C F28M35M52C1RFPS
C2000 Real-time microcontroller IC F28M36H33B2 F28M36H33B2ZWTT
C2000 Real-time microcontroller IC F28M36H53B2 F28M36H53B2ZWTT
C2000 Real-time microcontroller IC F28M36P53C2 F28M36P53C2ZWTS
C2000 Real-time microcontroller IC F28M36P63C2 F28M36P63C2ZWTS
C2000 Real-time microcontroller IC F28M36P63C2 F28M36P63C2ZWTT
C2000 Real-time microcontroller IC SM320F2801-EP SM320F2801PZMEP
C2000 Real-time microcontroller IC SM320F2801-EP V62/06619-03XE
C2000 Real-time microcontroller IC SM320F2808-EP SM320F2808PZMEP
C2000 Real-time microcontroller IC SM320F2808-EP V62/06619-01XE
C2000 Real-time microcontroller IC SM320F2812-EP SM320F2812PGFMEP
C2000 Real-time microcontroller IC SM320F2812-EP SM320F2812PGFMEPG4
C2000 Real-time microcontroller IC SM320F2812-EP V62/05601-03ZE
C2000 Real-time microcontroller IC SM320F28335-EP SM320F28335GJZMEP
C2000 Real-time microcontroller IC SM320F28335-EP SM320F28335PTPMEP
C2000 Real-time microcontroller IC SM320F28335-EP V62/09624-01XE
C2000 Real-time microcontroller IC SM320F28335-EP V62/09624-01YE
C2000 Real-time microcontroller IC SM320F28335-HT SM320F28335GBS
C2000 Real-time microcontroller IC SM320F28335-HT SM320F28335KGDS1
C2000 Real-time microcontroller IC SM320F28335-HT SM320F28335PTPS
C2000 Real-time microcontroller IC SM320LF2407A-EP SM320LF2407APGEMEP
C2000 Real-time microcontroller IC SM320LF2407A-EP V62/04608-01XE
C2000 Real-time microcontroller IC SMJ320F2812 5962-0620801QXC
C2000 Real-time microcontroller IC SMJ320F2812 SMJ320F2812HFGM150
C2000 Real-time microcontroller IC TMS320F280021 F280021PTSR
C2000 Real-time microcontroller IC TMS320F280021-Q1 F280021PTQR
C2000 Real-time microcontroller IC TMS320F280023 F280023PMSR
C2000 Real-time microcontroller IC TMS320F280023 F280023PNSR
C2000 Real-time microcontroller IC TMS320F280023 F280023PTSR
C2000 Real-time microcontroller IC TMS320F280023-Q1 F280023PMQR
C2000 Real-time microcontroller IC TMS320F280023-Q1 F280023PNQR
C2000 Real-time microcontroller IC TMS320F280023-Q1 F280023PTQR
C2000 Real-time microcontroller IC TMS320F280023C F280023CPMSR
C2000 Real-time microcontroller IC TMS320F280023C F280023CPNSR
C2000 Real-time microcontroller IC TMS320F280023C F280023CPTSR
C2000 Real-time microcontroller IC TMS320F280025 F280025PMS
C2000 Real-time microcontroller IC TMS320F280025 F280025PMSR
C2000 Real-time microcontroller IC TMS320F280025 F280025PNS
C2000 Real-time microcontroller IC TMS320F280025 F280025PNSR
C2000 Real-time microcontroller IC TMS320F280025 F280025PTS
C2000 Real-time microcontroller IC TMS320F280025 F280025PTSR
C2000 Real-time microcontroller IC TMS320F280025-Q1 F280025PMQR
C2000 Real-time microcontroller IC TMS320F280025-Q1 F280025PNQR
C2000 Real-time microcontroller IC TMS320F280025-Q1 F280025PTQR
C2000 Real-time microcontroller IC TMS320F280025C F280025CPMS
C2000 Real-time microcontroller IC TMS320F280025C F280025CPMSR
C2000 Real-time microcontroller IC TMS320F280025C F280025CPNSR
C2000 Real-time microcontroller IC TMS320F280025C F280025CPTSR
C2000 Real-time microcontroller IC TMS320F280025C-Q1 F280025CPMQR
C2000 Real-time microcontroller IC TMS320F280025C-Q1 F280025CPNQR
C2000 Real-time microcontroller IC TMS320F280025C-Q1 F280025CPTQR
C2000 Real-time microcontroller IC TMS320F280040-Q1 F280040PMQR
C2000 Real-time microcontroller IC TMS320F280040C-Q1 F280040CPMQR
C2000 Real-time microcontroller IC TMS320F280041 F280041PMS
C2000 Real-time microcontroller IC TMS320F280041 F280041PMSR
C2000 Real-time microcontroller IC TMS320F280041 F280041PZS
C2000 Real-time microcontroller IC TMS320F280041 F280041PZSR
C2000 Real-time microcontroller IC TMS320F280041 F280041RSHSR
C2000 Real-time microcontroller IC TMS320F280041-Q1 F280041PZQR
C2000 Real-time microcontroller IC TMS320F280041C F280041CPMS
C2000 Real-time microcontroller IC TMS320F280041C F280041CPZS
C2000 Real-time microcontroller IC TMS320F280041C F280041CRSHSR
C2000 Real-time microcontroller IC TMS320F280041C-Q1 F280041CPZQR
C2000 Real-time microcontroller IC TMS320F280045 F280045PMS
C2000 Real-time microcontroller IC TMS320F280045 F280045PMSR
C2000 Real-time microcontroller IC TMS320F280045 F280045PZS
C2000 Real-time microcontroller IC TMS320F280045 F280045PZSR
C2000 Real-time microcontroller IC TMS320F280045 F280045RSHSR
C2000 Real-time microcontroller IC TMS320F280048-Q1 F280048PMQR
C2000 Real-time microcontroller IC TMS320F280048C-Q1 F280048CPMQR
C2000 Real-time microcontroller IC TMS320F280049 F280049PMS
C2000 Real-time microcontroller IC TMS320F280049 F280049PMSR
C2000 Real-time microcontroller IC TMS320F280049 F280049PZSR
C2000 Real-time microcontroller IC TMS320F280049 F280049RSHSR
C2000 Real-time microcontroller IC TMS320F280049-Q1 F280049PZQ
C2000 Real-time microcontroller IC TMS320F280049-Q1 F280049PZQR
C2000 Real-time microcontroller IC TMS320F280049C F280049CPMS
C2000 Real-time microcontroller IC TMS320F280049C F280049CPZS
C2000 Real-time microcontroller IC TMS320F280049C F280049CRSHSR
C2000 Real-time microcontroller IC TMS320F280049C-Q1 F280049CPZQR

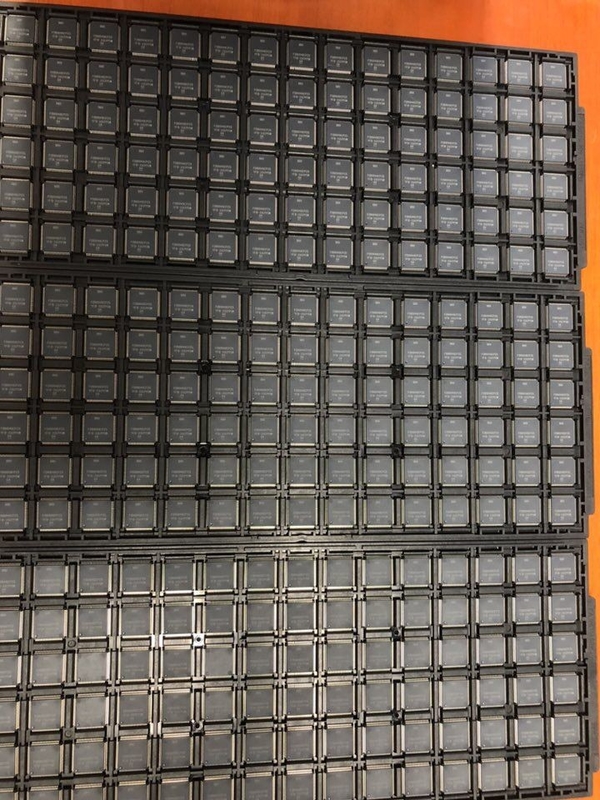

F28M35E20B C2000 Real-Time Microcontroller IC Texas Instruments MCU And Processor 0
