E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Category:
Electronics Components
Price:
Negotiated
Payment Method:
T/T, Western Union,paypal
Specifications
Category:
Sensors, Transducers Proximity Sensors - Industrial
Details:
SENSOR PROX INDUCTIVE 4MM CYLIND
Material:
Body Nickel-Plated Brass
Package:
Cylinder, Threaded - M12
Base Product Number:
E2B-M12
Sensor Type:
Inductive
Termination Style H Thickness:
Connector
Lead Free Status:
Lead Free / RoHS Compliant, RoHS Compliant
Operating Temperature:
-25°C ~ 70°C
High Light:

E2B Cylindrical Proximity Sensor

,

E2B-M12KS04M1C2

,

Brass Cylindrical Proximity Sensor

Introduction

E2B Cylindrical Proximity Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

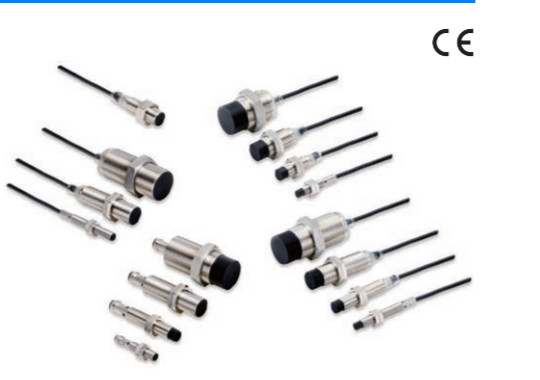

Perfect fit for standard environments

• Embody two seemingly contradictory characteristics: value-formoney and high reliability

• All 372 Models

• Four different sizes: M8, M12, M18 and M30

• Single and double sensing distances, Shielded and unshielded

• A choice of short and long bodies, two connecting methods and four output types

• Operating temperature: –25ºC to 70ºC

• Water resistance: IP67

• With an all-round 360º visible indicator


Specification :Sensor PROX INDUCTIVE 4MM CYLIND E2B-M12KS04M1C2

Category
Sensors, Transducers

Proximity Sensors - Industrial
Mfr
Omron Automation and Safety
Series
E2B
Package
Bulk
Product Status
Active
Sensor Type
Inductive
Sensing Distance
0.157" (4mm)
Output Type
NPN-NC, 3-Wire
Response Frequency
1kHz
Shielding
Shielded
Material - Body
Nickel-Plated Brass
Voltage - Supply
10V ~ 30V
Termination Style
Connector
Operating Temperature
-25°C ~ 70°C
Ingress Protection
IP67
Indicator
LED
Package / Case
Cylinder, Threaded - M12
Base Product Number
E2B-M12



E2B Cylindrical Proximity Sensor Ordering information:

    Connecting
    Sensing Body Output
Size   method   Operation mode NO Operation mode NC
    distance length configuration
    (See note 1.)
    PNP   E2B-S08KS01-WP-B1 2M E2B-S08KS01-WP-B2 2M
    Short
    NPN   E2B-S08KS01-WP-C1 2M E2B-S08KS01-WP-C2 2M
    Pre-wired
    PNP   E2B-S08LS01-WP-B1 2M E2B-S08LS01-WP-B2 2M
    Long
    NPN   E2B-S08LS01-WP-C1 2M E2B-S08LS01-WP-C2 2M
  Shielded
  1.5 mm   PNP E2B-S08KS01-MC-B1 E2B-S08KS01-MC-B2
    Short
    M8 Connec- NPN E2B-S08KS01-MC-C1 E2B-S08KS01-MC-C2
    tor (3-pin) PNP E2B-S08LS01-MC-B1 E2B-S08LS01-MC-B2
    Long
      NPN E2B-S08LS01-MC-C1 E2B-S08LS01-MC-C2
Single
    PNP   E2B-S08KN02-WP-B1 2M E2B-S08KN02-WP-B2 2M
    Short
    NPN   E2B-S08KN02-WP-C1 2M E2B-S08KN02-WP-C2 2M
    Pre-wired
    PNP   E2B-S08LN02-WP-B1 2M E2B-S08LN02-WP-B2 2M
    Long
    NPN   E2B-S08LN02-WP-C1 2M E2B-S08LN02-WP-C2 2M
  Unshielded
  2 mm PNP E2B-S08KN02-MC-B1 E2B-S08KN02-MC-B2
    Short
    M8 Connec- NPN E2B-S08KN02-MC-C1 E2B-S08KN02-MC-C2
    tor (3-pin) PNP E2B-S08LN02-MC-B1 E2B-S08LN02-MC-B2
    Long
M8     NPN E2B-S08LN02-MC-C1 E2B-S08LN02-MC-C2
(Stainless steel)
    PNP   E2B-S08KS02-WP-B1 2M E2B-S08KS02-WP-B2 2M
(See note 2.)   Short
    NPN   E2B-S08KS02-WP-C1 2M E2B-S08KS02-WP-C2 2M
    Pre-wired
    PNP   E2B-S08LS02-WP-B1 2M E2B-S08LS02-WP-B2 2M
    Long
    NPN   E2B-S08LS02-WP-C1 2M E2B-S08LS02-WP-C2 2M
  Shielded
  2 mm PNP E2B-S08KS02-MC-B1 E2B-S08KS02-MC-B2
    Short
    M8 Connec- NPN E2B-S08KS02-MC-C1 E2B-S08KS02-MC-C2
    tor (3-pin) PNP E2B-S08LS02-MC-B1 E2B-S08LS02-MC-B2
    Long
      NPN E2B-S08LS02-MC-C1 E2B-S08LS02-MC-C2
Double
    PNP   E2B-S08KN04-WP-B1 2M E2B-S08KN04-WP-B2 2M
    Short
    NPN   E2B-S08KN04-WP-C1 2M E2B-S08KN04-WP-C2 2M
    Pre-wired
    PNP   E2B-S08LN04-WP-B1 2M E2B-S08LN04-WP-B2 2M
    Long
    NPN   E2B-S08LN04-WP-C1 2M E2B-S08LN04-WP-C2 2M
  Unshielded
  4 mm PNP E2B-S08KN04-MC-B1 E2B-S08KN04-MC-B2
    Short
    M8 Connec- NPN E2B-S08KN04-MC-C1 E2B-S08KN04-MC-C2
    tor (3-pin) PNP E2B-S08LN04-MC-B1 E2B-S08LN04-MC-B2
    Long
      NPN E2B-S08LN04-MC-C1 E2B-S08LN04-MC-C2
    Connecting
    Sensing Body Output
Size   method   Operation mode NO Operation mode NC
    distance length configuration

    PNP   E2B-M12KS02-WP-B1 2M E2B-M12KS02-WP-B2 2M
    Short
    NPN   E2B-M12KS02-WP-C1 2M E2B-M12KS02-WP-C2 2M
    Pre-wired
    PNP   E2B-M12LS02-WP-B1 2M E2B-M12LS02-WP-B2 2M
    Long
    NPN   E2B-M12LS02-WP-C1 2M E2B-M12LS02-WP-C2 2M
  Shielded
  2 mm PNP E2B-M12KS02-M1-B1 E2B-M12KS02-M1-B2
    Short
    M12 NPN E2B-M12KS02-M1-C1 E2B-M12KS02-M1-C2
    Connector PNP E2B-M12LS02-M1-B1 E2B-M12LS02-M1-B2
    Long
      NPN E2B-M12LS02-M1-C1 E2B-M12LS02-M1-C2
Single
    PNP   E2B-M12KN05-WP-B1 2M E2B-M12KN05-WP-B2 2M
    Short
    NPN   E2B-M12KN05-WP-C1 2M E2B-M12KN05-WP-C2 2M
    Pre-wired
    PNP   E2B-M12LN05-WP-B1 2M E2B-M12LN05-WP-B2 2M
    Long
    NPN   E2B-M12LN05-WP-C1 2M E2B-M12LN05-WP-C2 2M
  Unshielded
  5 mm PNP E2B-M12KN05-M1-B1 E2B-M12KN05-M1-B2
    Short
    M12 NPN E2B-M12KN05-M1-C1 E2B-M12KN05-M1-C2
    Connector PNP E2B-M12LN05-M1-B1 E2B-M12LN05-M1-B2
    Long
      NPN E2B-M12LN05-M1-C1 E2B-M12LN05-M1-C2
M12 (Brass)
    PNP   E2B-M12KS04-WP-B1 2M E2B-M12KS04-WP-B2 2M
    Short
    NPN   E2B-M12KS04-WP-C1 2M E2B-M12KS04-WP-C2 2M
    Pre-wired
    PNP   E2B-M12LS04-WP-B1 2M E2B-M12LS04-WP-B2 2M
    Long
  Shielded   NPN E2B-M12LS04-WP-C1 2M E2B-M12LS04-WP-C2 2M
  (See note 2.) 4 mm PNP E2B-M12KS04-M1-B1 E2B-M12KS04-M1-B2
    Short
    M12 NPN E2B-M12KS04-M1-C1 E2B-M12KS04-M1-C2
    Connector PNP E2B-M12LS04-M1-B1 E2B-M12LS04-M1-B2
    Long
      NPN E2B-M12LS04-M1-C1 E2B-M12LS04-M1-C2
Double
    PNP   E2B-M12KN08-WP-B1 2M E2B-M12KN08-WP-B2 2M
    Short
    NPN   E2B-M12KN08-WP-C1 2M E2B-M12KN08-WP-C2 2M
    Pre-wired
    PNP   E2B-M12LN08-WP-B1 2M E2B-M12LN08-WP-B2 2M
    Long
    NPN   E2B-M12LN08-WP-C1 2M E2B-M12LN08-WP-C2 2M
  Unshielded
  8 mm PNP E2B-M12KN08-M1-B1 E2B-M12KN08-M1-B2
    Short
    M12 NPN E2B-M12KN08-M1-C1 E2B-M12KN08-M1-C2
    Connector PNP E2B-M12LN08-M1-B1 E2B-M12LN08-M1-B2
    Long
      NPN E2B-M12LN08-M1-C1 E2B-M12LN08-M1-C2





    Connecting
    Sensing Body Output
Size   method   Operation mode NO Operation mode NC
    distance length configuration
    (See note 1.)
    PNP   E2B-M18KS05-WP-B1 2M E2B-M18KS05-WP-B2 2M
    Short
    NPN   E2B-M18KS05-WP-C1 2M E2B-M18KS05-WP-C2 2M
    Pre-wired
    PNP   E2B-M18LS05-WP-B1 2M E2B-M18LS05-WP-B2 2M
    Long
    NPN   E2B-M18LS05-WP-C1 2M E2B-M18LS05-WP-C2 2M
  Shielded
  5 mm PNP E2B-M18KS05-M1-B1 E2B-M18KS05-M1-B2
    Short
    M12 NPN E2B-M18KS05-M1-C1 E2B-M18KS05-M1-C2
    Connector PNP E2B-M18LS05-M1-B1 E2B-M18LS05-M1-B2
    Long
      NPN E2B-M18LS05-M1-C1 E2B-M18LS05-M1-C2
Single
    PNP   E2B-M18KN10-WP-B1 2M E2B-M18KN10-WP-B2 2M
    Short
    NPN   E2B-M18KN10-WP-C1 2M E2B-M18KN10-WP-C2 2M
    Pre-wired
    PNP   E2B-M18LN10-WP-B1 2M E2B-M18LN10-WP-B2 2M
    Long
    NPN   E2B-M18LN10-WP-C1 2M E2B-M18LN10-WP-C2 2M
  Unshielded
  10 mm PNP E2B-M18KN10-M1-B1 E2B-M18KN10-M1-B2
    Short
    M12 NPN E2B-M18KN10-M1-C1 E2B-M18KN10-M1-C2
    Connector PNP E2B-M18LN10-M1-B1 E2B-M18LN10-M1-B2
    Long
      NPN E2B-M18LN10-M1-C1 E2B-M18LN10-M1-C2
M18 (Brass)
    PNP   E2B-M18KS08-WP-B1 2M E2B-M18KS08-WP-B2 2M
    Short
    NPN   E2B-M18KS08-WP-C1 2M E2B-M18KS08-WP-C2 2M
    Pre-wired
    PNP   E2B-M18LS08-WP-B1 2M E2B-M18LS08-WP-B2 2M
    Long
  Shielded   NPN E2B-M18LS08-WP-C1 2M E2B-M18LS08-WP-C2 2M
  (See note 2.) 8 mm PNP E2B-M18KS08-M1-B1 E2B-M18KS08-M1-B2
    Short
    M12 NPN E2B-M18KS08-M1-C1 E2B-M18KS08-M1-C2
    Connector PNP E2B-M18LS08-M1-B1 E2B-M18LS08-M1-B2
    Long
      NPN E2B-M18LS08-M1-C1 E2B-M18LS08-M1-C2
Double
    PNP   E2B-M18KN16-WP-B1 2M E2B-M18KN16-WP-B2 2M
    Short
    NPN   E2B-M18KN16-WP-C1 2M E2B-M18KN16-WP-C2 2M
    Pre-wired
    PNP   E2B-M18LN16-WP-B1 2M E2B-M18LN16-WP-B2 2M
    Long
    NPN   E2B-M18LN16-WP-C1 2M E2B-M18LN16-WP-C2 2M
  Unshielded
  16 mm PNP E2B-M18KN16-M1-B1 E2B-M18KN16-M1-B2
    Short
    M12 NPN E2B-M18KN16-M1-C1 E2B-M18KN16-M1-C2
    Connector PNP E2B-M18LN16-M1-B1 E2B-M18LN16-M1-B2
    Long
      NPN E2B-M18LN16-M1-C1 E2B-M18LN16-M1-C2
    Connecting
    Sensing Body Output
Size   method   Operation mode NO Operation mode NC
    distance length configuration
    (See note 1.)
    PNP   E2B-M30KS10-WP-B1 2M E2B-M30KS10-WP-B2 2M
    Short
    NPN   E2B-M30KS10-WP-C1 2M E2B-M30KS10-WP-C2 2M
    Pre-wired
    PNP   E2B-M30LS10-WP-B1 2M E2B-M30LS10-WP-B2 2M
    Long
    NPN   E2B-M30LS10-WP-C1 2M E2B-M30LS10-WP-C2 2M
  Shielded
  10 mm PNP E2B-M30KS10-M1-B1 E2B-M30KS10-M1-B2
    Short
    M12 NPN E2B-M30KS10-M1-C1 E2B-M30KS10-M1-C2
    Connector PNP E2B-M30LS10-M1-B1 E2B-M30LS10-M1-B2
    Long
      NPN E2B-M30LS10-M1-C1 E2B-M30LS10-M1-C2
Single
    PNP   E2B-M30KN20-WP-B1 2M E2B-M30KN20-WP-B2 2M
    Short
    NPN   E2B-M30KN20-WP-C1 2M E2B-M30KN20-WP-C2 2M
    Pre-wired
    PNP   E2B-M30LN20-WP-B1 2M E2B-M30LN20-WP-B2 2M
    Long
    NPN   E2B-M30LN20-WP-C1 2M E2B-M30LN20-WP-C2 2M
  Unshielded
  20 mm PNP E2B-M30KN20-M1-B1 E2B-M30KN20-M1-B2
    Short
    M12 NPN E2B-M30KN20-M1-C1 E2B-M30KN20-M1-C2
M30 (Brass)
    Connector PNP E2B-M30LN20-M1-B1 E2B-M30LN20-M1-B2
    Long
      NPN E2B-M30LN20-M1-C1 E2B-M30LN20-M1-C2
    PNP   E2B-M30KS15-WP-B1 2M E2B-M30KS15-WP-B2 2M
    Short
    NPN   E2B-M30KS15-WP-C1 2M E2B-M30KS15-WP-C2 2M
    Pre-wired
    PNP   E2B-M30LS15-WP-B1 2M E2B-M30LS15-WP-B2 2M
    Long
  Shielded   NPN E2B-M30LS15-WP-C1 2M E2B-M30LS15-WP-C2 2M
  (See note 2.) 15 mm PNP E2B-M30KS15-M1-B1 E2B-M30KS15-M1-B2
    Short
    M12 NPN E2B-M30KS15-M1-C1 E2B-M30KS15-M1-C2
Double
    Connector PNP E2B-M30LS15-M1-B1 E2B-M30LS15-M1-B2
    Long
      NPN E2B-M30LS15-M1-C1 E2B-M30LS15-M1-C2
    PNP   E2B-M30LN30-WP-B1 2M E2B-M30LN30-WP-B2 2M
    Pre-wired Long
    NPN   E2B-M30LN30-WP-C1 2M E2B-M30LN30-WP-C2 2M
  Unshielded 30 mm
    M12 PNP E2B-M30LN30-M1-B1 E2B-M30LN30-M1-B2
    Long
    Connector NPN E2B-M30LN30-M1-C1 E2B-M30LN30-M1-C2

E2B Accessories (Order Separately)

Sensor I/O Connectors
  Size Cable Shape Cores Cable length (m) Model
          2 XS3F-M8PVC3S2M
    Straight
          5 XS3F-M8PVC3S5M
  PVC
          2 XS3F-M8PVC3A2M
      Right-angle
          5 XS3F-M8PVC3A5M
M8 (3-pin)       3
          2 XS3F-M321-302-R
    Straight
          5 XS3F-M321-305-R
  PVC Robot
          2 XS3F-M322-302-R
      Right-angle
          5 XS3F-M322-305-R
          2 XS2F-M12PVC4S2M
    Straight
          5 XS2F-M12PVC4S5M
  PVC
          2 XS2F-M12PVC4A2M
      Right-angle
          5 XS2F-M12PVC4A5M
  M12 (4-pin)     4
          2 XS2F-D421-D80-F
    Straight
          5 XS2F-D421-G80-F
  PVC Robot
          2 XS2F-D422-D80-F
      Right-angle
          5 XS2F-D422-G80-F
Ratings and Specifications
Size   M8
Sensing
    Single Double
distance
Type Shielded Unshielded Shielded Unshielded
Item Model E2B-S08@S01 E2B-S08@N02 E2B-S08@S02
Sensing distance 1.5 mm ± 10% 2 mm ± 10% 2 mm ± 10% 4 mm ± 10%
Setting distance 0 to 1.2 mm 0 to 1.6 mm 0 to 1.6 mm 0 to 3.2 mm
Differential travel 10% max. of sensing distance
Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal.)
Standard sensing object
8 × 8 × 1 mm 8 × 8 × 1 mm 8 × 8 × 1 mm 12 × 12 × 1 mm
(mild steel ST37)
Response frequency (See note 1.) 2,000 Hz 1,000 Hz 1,500 Hz 1,000 Hz
Power supply voltage 10 to 30 VDC. (including 10% ripple (p-p))
Current consumption 10 mA max.
  -B models: PNP open collector
Output type
  -C models: NPN open collector
Load current
200 mA max. (30 VDC max.)
Control output (See note 2.)
Residual voltage 2 V max. (under load current of 200 mA with cable length of 2 m)
Indicator Operation indicator (Yellow LED)
Operation mode -B1/-C1 models: NO
(with sensing object approaching) -B2/-C2 models: NC
  Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor,
Protection circuit
  Short-circuit protection
Ambient air temperature Operation and storage : -25 to 70ºC (with no icing or condensation)
Temperature influence ±10% max. of sensing distance at 23ºC within temperature range of -10 to 55ºC
(See note 2.) ±15% max. of sensing distance at 23ºC within temperature range of -25 to 70ºC
Ambient humidity Operation and Storage: 35 to 95%
Voltage influence ±1% max. of sensing distance in 24 VDC ±15%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance 500 m/s2, 10 times each in X, Y and Z directions
Standard and listings (1) IP67 (IEC60529) (2) EMC (EN60947-5-2)
  Pre-wired models (standard is 4 mm dia. PVC cable with length = 2 m, 5 m).
Connecting method
  Connector models (M8-3pin)
Weight Pre-wired model Short body: Approx. 65 g, Long body: Approx. 65 g
(packaged) Connector model Short body: Approx. 20 g, Long body: Approx. 20 g
Case Stainless steel (1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).)
Sensing surface PBT
Material Cable Standard cable is 4 mm dia. PVC.
Clamping nut Brass-nickel plated
Toothed washer Zinc-plated iron

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHS Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Send RFQ
Stock:
MOQ:
100pieces
