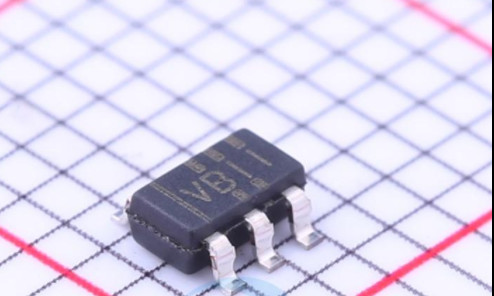

INA281 INA281A1IDBVR Current Sense Amplifiers Analog Output Integrated Circuits Ic
Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Description:
-4-V To 110-V, 1.3-MHz, High-precision Current Sense Amplifier
Category:
Electronic Components-Integrated Circuits(IC)
Other Name:
CURRENT SENSE AMPLIFIERS ANALOG OUTPUT
Name:
INA281 CURRENT SENSE AMPLIFIERS ANALOG OUTPUT Integrated Circuits IC
Applications:
Industrial Motor Inverter - Power Tools, Robotics
Package:
SOIC,SOT23
Lead Free Status:
RoHS Compliant, PB Free, Lead Free
Operating Temperature:
-40°C ~ 85°C
Condition:
New And Original Parts
High Light:
INA281 Current Sense Amplifiers
,INA281A1IDBVR Current Sense Amplifiers
,INA281A1IDBVR Integrated Circuits Ic
Introduction
Texas Instruments (Electronic Components )
INA281 INA281A1IDBVR CURRENT SENSE AMPLIFIERS ANALOG OUTPUT Integrated Circuits IC
Description for the INA281
The INA281 is a high-precision current sense amplifier that canmeasure voltage drops across shunt resistors over a wide common-mode range from –4 V to 110 V. The negative common-mode voltage allowsthe device to operate below ground, thus accommodating precise measurement of recirculatingcurrents in half-bridge applications. The combination of a low offset voltage, small gain error andhigh DC CMRR enables highly accurate current measurement. The INA281 is not onlydesigned for DC current measurement, but also for high-speed applications (like fast overcurrentprotection, for example) with a high bandwidth of 1.3 MHz and an 65-dB AC CMRR (at 50 kHz).
The INA281 operates from a single 2.7-V to 20-V supply, drawing 1.5mA of supply current. The INA281 is available with five gain options: 20 V/V, 50V/V, 100 V/V, 200 V/V, and 500 V/V. These gain options address wide dynamic range forcurrent-sensing applications.
The INA281 is specified over an operating temperature range of −40 °Cto +125 °C and is offered in a space-saving SOT-23 package with two pin-out variants.
-
Features for the INA281
- Wide common-mode voltage:
- Operational voltage: −4 V to +110 V
- Survival voltage: −20 V to +120 V
- Excellent CMRR:
- 120-dB DC CMRR
- 65-dB AC CMRR at 50 kHz
- Accuracy:
- Gain:
- Gain error: ±0.5% (maximum)
- Gain drift: ±20 ppm/°C (maximum)
- Offset:
- Offset voltage: ±55 µV (typical)
- Offset drift: ±0.1 µV/°C (typical)
- Gain:
- Available gains:
- INA281A1,INA281B1 : 20 V/V
- INA281A2, INA281B2 : 50 V/V
- INA281A3, INA281B3 : 100 V/V
- INA281A4, INA281B4 : 200 V/V
- INA281A5, INA281B5 : 500 V/V
- High bandwidth: 1.3 MHz
- Slew rate: 2.5V/µs
- Quiescent current: 1.5 mA
- Specifications:
| Category | Integrated Circuits (ICs) |
| SENSE AMPLIFIERS | |
| Mfr | Texas Instruments |
| Series | AMPLIFIERS |
| Package | Tray & Reel (TR) |
| Part Status | Active |
| PLL | Yes |
| Main Purpose | General purpose |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOIC |
| Product Number | INA2 |
Environmental & Export Classifications:
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
