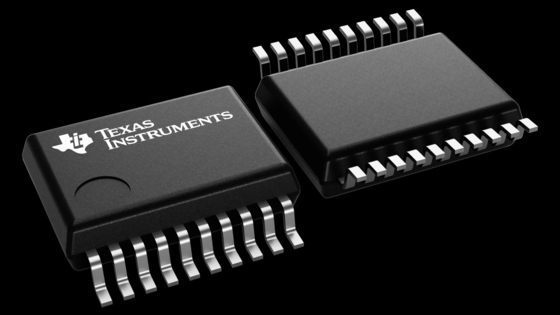

SN74ABT273 SN74ABT374A Octal Edge Triggered D Type Flip Flops TI Ics
Category:
Integrated Circuits IC
Price:
Negotiated
Payment Method:
T/T, Western Union
Specifications
Description:
Octal Edge-Triggered D-Type Flip-Flops With Clear IC
Category:
Electronic Components-Integrated Circuits(IC)
Similar Part Name:
SN74ABT16821 SN74ABT16823 SN74ABT377A SN74ABT534A
Applications:
Industrial Motor Inverter - Power Tools, Robotics
Products Name:
D-type Flip-flops IC
Package:
Surface Mounting
Lead Free Status:
RoHS Compliant, PB Free, Lead Free
Operating Temperature:
-40°C ~ 85°C
High Light:
SN74ABT273 Integrated Circuits IC
,SN74ABT374A Integrated Circuits IC
,D Type Flip Flops TI Ics
Introduction
SN74ABT273 SN74ABT374A Octal Edge-Triggered D-Type Flip-Flops TI Ics SN74ABT16821 SN74ABT16823
-Integrated Circuits IC Texas Instruments (Electronic Components )
Description:
These devices contain two independent positive-edge-triggered D-type flip-flops. A low level at the preset () or clear () inputs sets or resets the outputs regardless of the levels of the other inputs. When and are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input may be changed without affecting the levels at the outputs.
The SN54F74 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74F74 is characterized for operation from 0°C to 70°C.
Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
- Specifications:
| Category | Integrated Circuits (ICs) |
| D-type Flip-Flops | |
| Mfr | Texas Instruments |
| Series | |
| Package | Tray & Reel (TR) |
| Part Status | Active |
| PLL | Yes |
| Main Purpose | General purpose |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount/Though Hole |
| Package / Case | SOIC/DIP |
| Product Base Number | SN74ABT273 SN74ABT374A |
| Number of channels (#) | 8 |
| Technology Family | ABT |
| Supply voltage (Min) (V) | 4.5 |
| Supply voltage (Max) (V) | 5.5 |
| Input type | TTL-Compatible CMOS |
| Output type | Push-Pull |
| Clock Frequency (Max) (MHz) | 150 |
| IOL (Max) (mA) | 64 |
| IOH (Max) (mA) | -32 |
| ICC (Max) (uA) | 30000 |
| Features | Very high speed (tpd 5-10ns), Partial power down (Ioff) |
