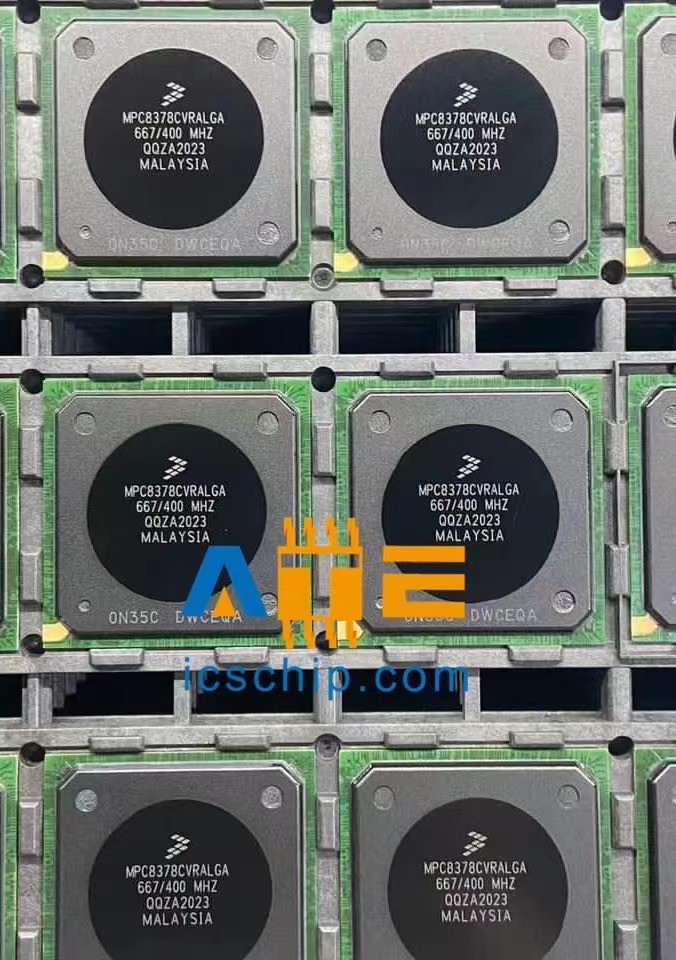

MPC8378CVRALGA MPC8378 32 Bit Power Architecturer SoC IC Electronic Components
MPC8378CVRALGA IC Electronic Components
,SoC IC Electronic Components
,32 Bit IC Electronic Components
MPC8378CVRALGA MPC8378 Power QUICC 32 Bit Power Architecturer SoC IC Electronic components
MPC8378CVRALGA MPU PowerQUICC II Pro MPC83xx Processor RISC 32bit 0.09um 667MHz 1.8V/2.5V/3.3V 689-Pin TEBGA II
Overview:
Today’s small-to-medium business (SMB) and consumer applications are driving the need for highly integrated and cost effective solutions that deliver high performance. The next generation PowerQUICC® II Pro MPC837x family provides an e300 core, built on Power Architecture® technology, integrated with PCI Express® and Serial-ATA (SATA) controllers, as well as dual Gigabit Ethernet controllers, to specifically address the needs of SMB and consumer applications. The new MPC837x family, based in 90 nm process technology, provides high integration that simplifies board design and offers a cost-effective solution that is critical for applications such as wireless access points, printers, network attached storage and SMB routers.
e300 Platform Built on Power Architecture Technology The next generation MPC837x family utilizes the 32-bit superscalar e300 core. It integrates two integer units and a floating-point unit, making it ideal for computational applications. It supports 32 KB L1 data and instruction cache, and has an operating frequency from 400 MHz to 800 MHz. The MPC837x family is software compatible with existing 603e core-based products.
and supports either x1 or x2 widths, making it an excellent choice for wireless access points and low-end printers. The integrated SATA controllers support both SATA I and II data rates (1.5 and 3.0 Gbaud), providing integrated support for hard disk drive applications such as network attached storage.
Key Advantages • High performance e300 core operating up to 800 MHz with 32 KB L1 cache • Integrated PCI Express and SATA controllers providing a cost-effective System-on-Chip (SoC) solution • Key networking capabilities enabled by dual Gigabit Ethernet ports • Integrated security engine
Descriptions: MPC8378CVRALGA
|
Category
|
|
|
Embedded - Microprocessors
|
|
|
Mfr
|
Philip USA Inc.
|
|
Series
|
MPC83xx
|
|
Core Processor
|
PowerPC e300c4s
|
|
Number of Cores/Bus Width
|
1 Core, 32-Bit
|
|
Speed
|
667MHz
|
|
Co-Processors/DSP
|
-
|
|
RAM Controllers
|
DDR, DDR2
|
|
Graphics Acceleration
|
No
|
|
Display & Interface Controllers
|
-
|
|
Ethernet
|
10/100/1000Mbps (2)
|
|
SATA
|
-
|
|
USB
|
USB 2.0 + PHY (1)
|
|
Voltage - I/O
|
1.8V, 2.5V, 3.3V
|
|
Operating Temperature
|
-40°C ~ 125°C (TA)
|
|
Security Features
|
-
|
|
Package / Case
|
689-BBGA Exposed Pad
|
|
Supplier Device Package
|
689-TEPBGA II (31x31)
|
|
Additional Interfaces
|
DUART, I²C, MMC/SD, PCI, SPI
|
|
Base Product Number
|
MPC8378
|
Environmental & Export Classifications
|
ATTRIBUTE |
DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
