AST2500 AST2500A2-GP ASPEED'S 6th Generation Server Management Processor IC

Product Details:
Place of Origin: Malaysia
Brand Name: ASPEED
Certification: ROHS
Model Number: AST2500A2-GP
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: Negotiated
Packaging Details: REEL/TAPE
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS

Detail Information

Product Name: AST2500 Advanced PCIe Graphics & Remote Management Processor Description: AST2500 Is ASPEED's 6th Generation Server Management Processor
Category: Electronic Components-Integrated Circuits(IC) Package: Surface Mounting BGA
Lead Free Status: RoHS Compliant, PB Free, Lead Free Operating Temperature: -40°C ~ 85°C
RoHS: Compliant Flash Memory: SPI Flash Memory
High Light:

AST2500A2-GP Processor IC

,

Server Management Processor IC

,

ASPEED'S 6th Generation Processor IC

Product Description

AST2500 AST2500A2-GP ASPEED'S 6th Generation Server Management Processor IC

 Integrated Circuits IC-(Electronic Components AST2500 AST2500A2-GP

AST2500 is ASPEED's 6th generation Server Management Processor. With the 800MHz ARM11 processor and the mainstream double data rate memory migrating from DDR3 to DDR4, AST2500 provides customer the best performance server management solution. In additional to the advanced BMC features, the on chip PCIe 2D VGA provides server systems with local display capability without adding extra cost for VGA add-on card. The embedded ARM11 and DDR4 1600Mbps meet the increasing performance requirements of the server system.



  • Specifications:
  • Product Name AST2500 Advanced PCIe Graphics & Remote Management Processor
    Features Base Board Management Controller
    2D Video Graphic Adapter with PCIe bus interface
    Native PCIe support
    iKVM
    DDR3 800Mbps/DDR4 1600Mbps 16-bit bus support
    ARM11 @ 800MHz
    Related Products AST2510 / AST2520
  • Embedded CPU 800MHz ARM11
    SDRAM Memory 800Mbps DDR3/1600Mbps DDR4 SDRAM
    16-bit data bus width
    Up to 1G Byte
    ECC option
    Flash Memory SPI flash memory
    Video-Over-IP Video Redirection up to 1920x1200
    YUV444/YUV420 Video Compression
    24 bits video compression quality
    USB-Over-IP USB 2.0 virtual hub controller with 5 devices supported
    USB 1.1 HID device controller
    BMC Yes
    VGA PCIe VGA/2D Controller
    1920x1200@60Hz 32bpp
    VGA Drivers RHEL
    SLES
    Solaris
    Ubuntu
    FreeBSD
    Fedora
    Windows Server 2008 R2 (WHQL logo'ed)
    Windows Server 2012 R2 (WHQL logo'ed)
    LAN Dual 10/100/1000M bps MAC
    Technology 456-pin 19mmx19mm TFBGA package
    Pin Compatibility AST2510, AST2520

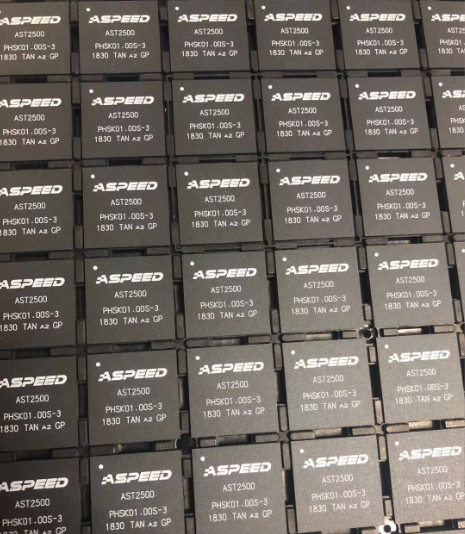

  • AST2500 AST2500A2-GP ASPEED'S 6th Generation Server Management Processor IC 0



Environmental & Export Classifications:

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001



More similar part numbers of ASPEED IC:



AST2600
AST2620
AST2500
AST2520
AST1030
AST1060
