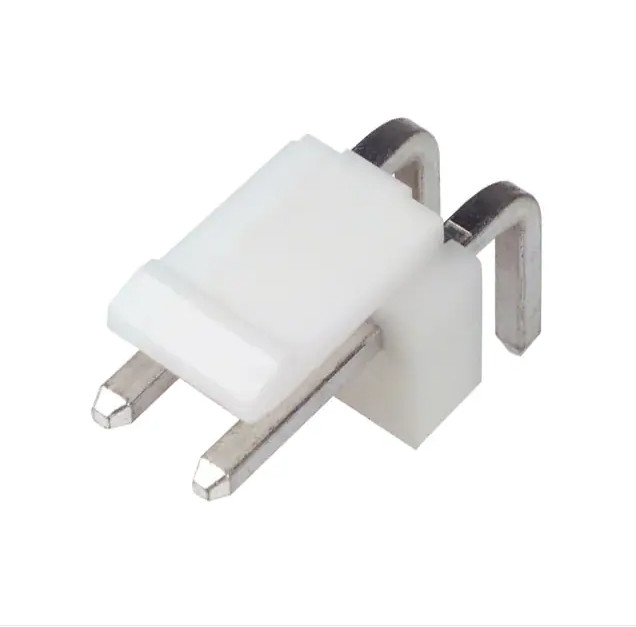

B2PS-VH Wire to Board HDR 2 3.96mm VH header Connectors B2PS-VH(LF)(SN)
Category:
Connectors Terminal
Price:
Negotiated
Payment Method:
T/T, Western Union, MoneyGram
Specifications
Features:
B2PS-VH Wire To Board HDR 2 3.96mm VH Header Connectors
Description:
Connector Header Through Hole, Right Angle 2 Position 0.156" (3.96mm)
Product Name:
Wire To Board HDR VH Header Connectors
Family:
Board To Board & Mezzanine Connectors
Category:
Electronic Components Interconnects
Subcategory:
Rectangular Connectors Headers, Male Pins
Mounting Type:
Connector Header
Base Product Number:
B2PS
Introduction
B2PS-VH Wire to Board HDR 2 3.96mm VH header Connectors B2PS-VH(LF)(SN)
Description : Connector Header Through Hole, Right Angle 2 position 0.156" (3.96mm)
Company: Angel Technology Electronics Co
|
Category
|
|
Category
|
Connectors, Interconnects
|
|
Rectangular Connectors
|
|
|
Headers, Male Pins
|
|
|
Mfr
|
JST-Japan Solderless..
|
|
Series
|
VH
|
|
Connector Type
|
Header
|
|
Contact Type
|
Male Pin
|
|
Pitch - Mating
|
0.156" (3.96mm)
|
|
Number of Positions
|
2
|
|
Number of Rows
|
1
|
|
Row Spacing - Mating
|
-
|
|
Number of Positions Loaded
|
All
|
|
Style
|
Board to Cable/Wire
|
|
Shrouding
|
Shrouded - 1 Wall
|
|
Mounting Type
|
Through Hole, Right Angle
|
|
Termination
|
Solder
|
|
Fastening Type
|
Locking Ramp
|
|
Contact Length - Mating
|
0.303" (7.70mm)
|
|
Contact Length - Post
|
0.142" (3.60mm)
|
|
Overall Contact Length
|
-
|
|
Insulation Height
|
0.335" (8.51mm)
|
|
Contact Shape
|
Square
|
|
Contact Finish - Mating
|
Tin-Lead
|
|
Contact Finish Thickness - Mating
|
-
|
|
Contact Finish - Post
|
Tin-Lead
|
|
Contact Material
|
Brass
|
|
Insulation Material
|
Polyamide (PA66), Nylon 6/6
|
|
Features
|
-
|
|
Operating Temperature
|
-25°C ~ 85°C
|
|
Ingress Protection
|
-
|
|
Material Flammability Rating
|
UL94 V-0
|
|
Insulation Color
|
Natural
|
|
Current Rating (Amps)
|
10A
|
|
Voltage Rating
|
250V
|
Most Popular Headers and Edge Type Connectors:
| FTSH-105-01-L-DV-K-P-TR | 530470210 | 430250600 |
| 878321420 | 114017 | 533980371 |
| FTSH-105-01-L-DV-K | 53047-0210 | 533980271 |
| 43025-0400 | N2510-6002-RB | 5103308-1 |
| DM3AT-SF-PEJM5 | 640456-2 | 53398-0271 |
| 430250400 | 5025700893 | 2-5767004-2 |
| FTSH-105-01-L-DV-K-TR | 5015680807 | 51021-0200 |
| 22232021 | FTSH-105-01-F-DV-K-P-TR | 22-23-2021 |
| B4B-PH-K-S(LF)(SN) | DM3AT-SF-PEJM5(40) | FTSH-105-01-F-DV-K |
| 533980471 | 87831-1420 | 878311420 |
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
