Home > products > Electronics Components > DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL

DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL

manufacturer:
Texas Instruments
Description:
MicroSD Card 3IE4 series from 8GB to 128GB with excellent quality TLC NAND Flash, and fully compliant to SD3.0, and SD2.
Category:
Electronics Components
In-stock:
In Stock
Price:
Negotiated
Payment Method:
T/T, Western Union
Shipping Method:
Express
Specifications
Production Family:
MicroSD Card 3IE4 Series MicroSD Card 8GB
Details:
Support Class 10 With UHS-III
Interface:
SD 3.0
Capacity:
8GB~128GB
Part Number:
DHSDM-08GS06EW1SL DHSDM08GS06EE1SL 8GB
Another GB#:
DHSDM16GS06%E1SL DHSDM32GS06%E1SL DHSDM64GS06%E1SL DHSDMA28S06%E1SL
Sequential R/W (MB/sec, Max.):
90/80
Max. Power Consumption:
0.7 W
Dimension (WxLxH):
11.0 X 15.0 X 1.0 Mm
Environment Vibration:
20G @7~2000Hz Shock: 1500G @ 0.5ms Storage Temperature: -25°C ~ +85°C MTBF: 3 Million Hours Endurance:30,000 P/E Cycles; 100,000 P/E Cycles(112-L)
Introduction

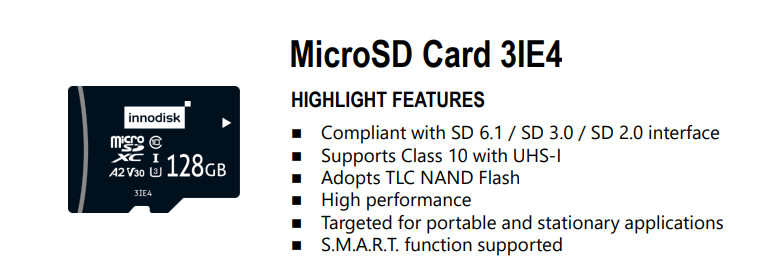

MicroSD Card 3IE4 series

DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL

Features:

- Compliant with SD 6.1/ SD 3.0/ SD 2.0 interface

- Support Class 10 with UHS-III - Adopt 3D TLC NAND flash

- High performance

- Targeted for portable and stationary applications - SMART function supported



Introduction

Innodisk MicroSD 3IE4 series, supporting class 10 with UHS-III, are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance. Innodisk MicroSD 3IE4 series provide wide range capacities from 8GB to 128GB with excellent quality TLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications. With its low power consumption and features above, Innodisk MicroSD 3IE4 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.

Module Name MicroSD Card 3IE4
Interface SD 3.0
Flash Type iSLC
Capacity 8GB~128GB
Sequential R/W (MB/sec, max.) 90/80
Max. Power Consumption 0.7 W
Max. Channels 1
S.M.A.R.T. Y
Dimension (WxLxH/mm) 11.0 x 15.0 x 1.0
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Storage Temperature -40°C ~ +85°C
Operation Temperature Extended Grade: -25°C ~ +85°C
Endurance 30,000 P/E cycles; 100,000 P/E cycles(112-L)

Operation Temp. 8GB 16GB 32GB 64GB 128GB
Standard Grade (-25°C ~ +85°C) DHSDM-08GS06EE1SL DHSDM-16GS06%E1SL DHSDM-32GS06%E1SL DHSDM-64GS06%E1SL DHSDM-A28S06%E1SL
Industrial Grade (-40°C ~ +85°C) DHSDM-08GS06EW1SL DHSDM-16GS06%W1SL DHSDM-32GS06%W1SL DHSDM-64GS06%W1SL DHSDM-A28S06%W1SL
DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL
DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL
DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL
DHSDM-08GS06EW1SL MicroSD Card 8GB DHSDM08GS06EE1SL
